WO2023086041 - GAS TAPS WITH DISCS THAT INCREASE MAXIMUM FLOW RATE
National phase entry is expected:
Publication Number
WO/2023/086041
Publication Date
19.05.2023
International Application No.
PCT/TR2021/051273
International Filing Date
23.11.2021
Title **
[English]
GAS TAPS WITH DISCS THAT INCREASE MAXIMUM FLOW RATE
[French]
ROBINETS DE GAZ DOTÉS DE DISQUES D'AUGMENTATION DE DÉBIT MAXIMAL
Applicants **
TURAŞ GAZ ARMATÜRLERİ SAN. VE TİC. A.Ş.
Inventors
TURHAN, Gökhan
Priority Data
2021/017487
10.11.2021
TR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
Turkpatent
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1956 | |
| EPO | Filing, Examination, Granting | 9171 | |
| Japan | Filing, Examination, Granting | 1846 | |
| South Korea | Filing, Examination, Granting | 1472 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,185
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

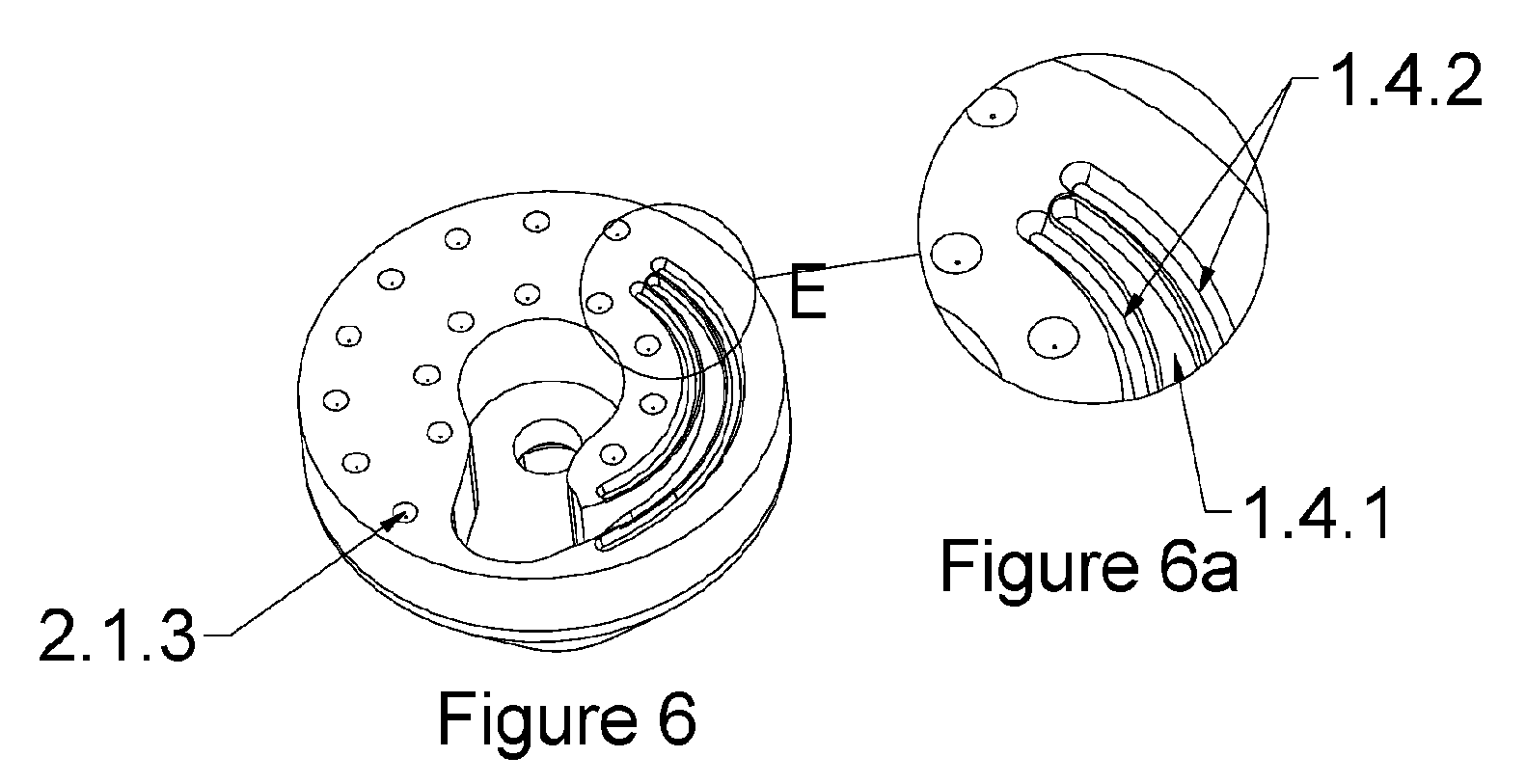

The invention relates to gas taps (1) for domestic and industrial gas cookers, which comprise a body (1.3) having a gas inlet (1.3.1) and one or two gas outlets (1.3.2); a movable disc (1.4) rotatable in the body (1.3); an immobile fixed disc (1.5); a shaft (1.1); a gasket; a cover (1.2); a pin (1.7); and a safety valve (1.8). In gas taps (1), a gas flow occurs at different flow rates when a user rotates a button such that a shaft (1) therein rotates to simultaneously rotate the movable disc (1.4) in each rotation angle. Gas taps (1) of the invention relate to oil channels (1.4.2), a main channel (1.4.1) and an auxiliary supply channel (1.3.3) which provide linearity in the flow rates that occur due to the angle change and increase the maximum flow rate that will occur in the gas taps.[French]
L'invention concerne des robinets de gaz (1) destinés à des cuisinières à gaz ménagères et industrielles, les robinets comprenant un corps (1.3) comportant une entrée de gaz (1.3.1) et une ou deux sorties de gaz (1.3.2); un disque mobile (1.4) pouvant tourner dans le corps (1.3); un disque fixe immobile (1.5); un arbre (1.1); un joint d'étanchéité; un couvercle (1.2); une broche (1.7); et une soupape de sécurité (1.8). Dans les robinets de gaz (1), un écoulement de gaz se produit à des débits différents lorsqu'un utilisateur fait tourner un bouton de sorte qu'un arbre (1.1) dans ce dernier tourne afin de faire tourner simultanément le disque mobile (1.4) selon chaque angle de rotation. Les robinets de gaz (1) de l'invention comprennent des canaux d'huile (1.4.2), un canal principal (1.4.1) et un canal d'alimentation auxiliaire (1.3.3) destinés à assurer une linéarité dans les débits qui se produisent en raison de la variation de l'angle et à augmenter le débit maximal qui se produira dans les robinets de gaz.
