WO2025085620 - OVERMOLDED ELECTRONIC CONTROLLER WITH INTEGRATED MOTOR BEARING HOLDER FOR A DRIVETRAIN ACTUATOR
National phase entry is expected:
Publication Number
WO/2025/085620
Publication Date
24.04.2025
International Application No.
PCT/US2024/051749
International Filing Date
17.10.2024
Title **
[English]
OVERMOLDED ELECTRONIC CONTROLLER WITH INTEGRATED MOTOR BEARING HOLDER FOR A DRIVETRAIN ACTUATOR
[French]
DISPOSITIF DE COMMANDE ÉLECTRONIQUE SURMOULÉ À SUPPORT DE PALIER DE MOTEUR INTÉGRÉ POUR ACTIONNEUR DE CHAÎNE CINÉMATIQUE
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
POOT RODRIGUEZ, David
BAER, James D.
HRIBAR, Edward
Priority Data
63/592,009
20.10.2023
US
18/662,644
13.05.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2108 | |
| EPO | Filing, Examination, Granting | 8637 | |
| Japan | Filing, Examination, Granting | 2186 | |
| South Korea | Filing, Examination, Granting | 2168 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,839
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

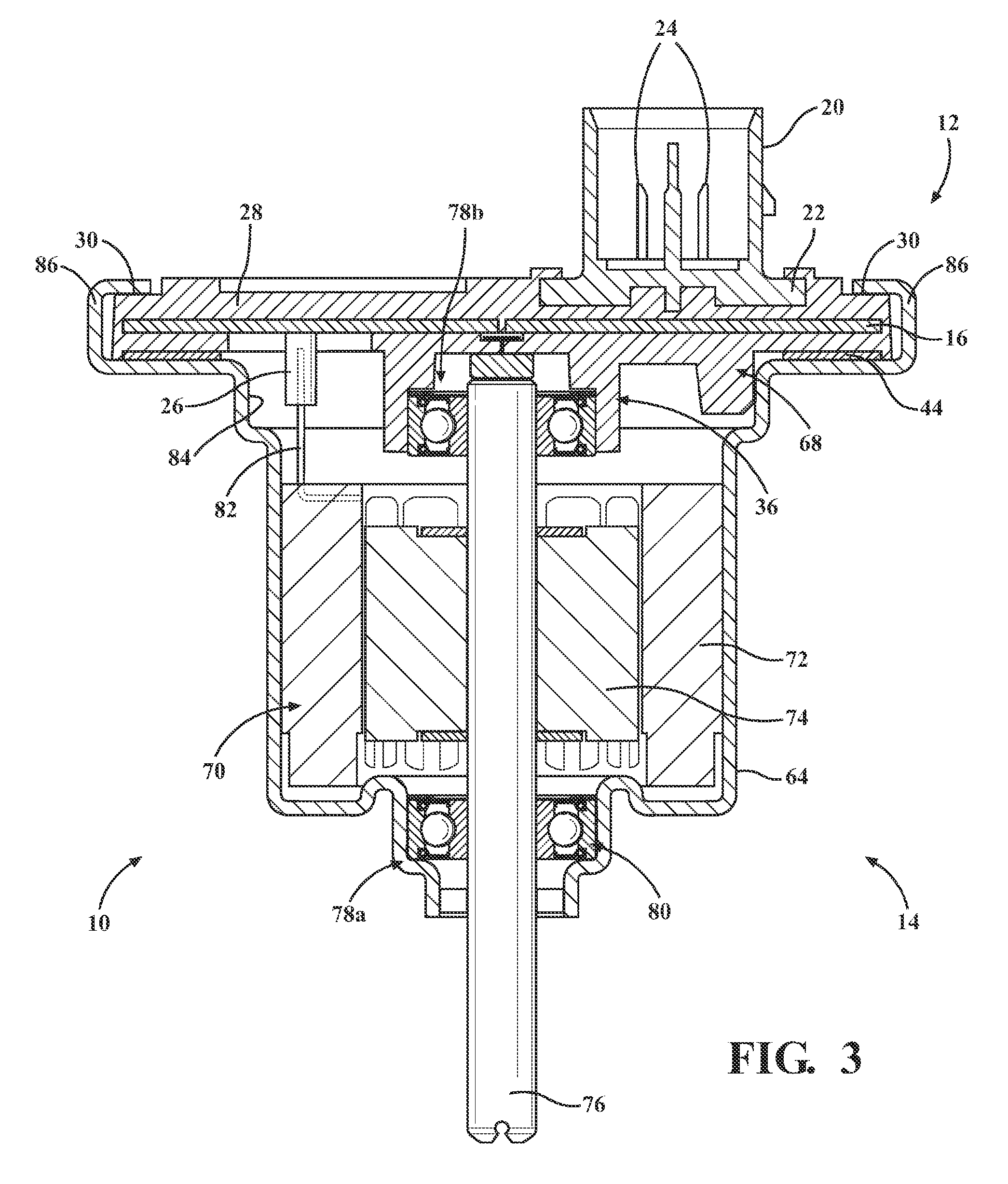

A smart actuator assembly (10) having an overmolded electronics assembly (12), where the overmolded electronics assembly (12) includes a printed circuit board (PCB) (16), at least one terminal (26) mounted to the PCB (16), a housing (28) at least partially surrounding the PCB (16), the terminal (26) protruding out of the housing (28), and at least one bearing holder (36) integrally formed as part of the housing (28). The smart actuator assembly (10) includes a motor subassembly (14), where the motor subassembly (14) has a motor housing (64), a shaft (76) at least partially extending into the motor housing (64), a rotor (74) mounted to the shaft (76), and at least one bearing assembly (78a,78b) mounted to the shaft (76) adjacent the rotor (74). The overmolded electronics assembly (12) is connected to the motor subassembly (14) such that the bearing is at least partially disposed in the bearing holder (36).[French]
