WO2023128878 - NANOFILTRATION DEVICE FOR DEACTIVATION OF AIR-FILTERED PATHOGENS ON SURFACE-TREATED FILTER MATERIAL
National phase entry:
Publication Number
WO/2023/128878
Publication Date
06.07.2023
International Application No.
PCT/SK2021/000007
International Filing Date
30.12.2021
Title **
[English]
NANOFILTRATION DEVICE FOR DEACTIVATION OF AIR-FILTERED PATHOGENS ON SURFACE-TREATED FILTER MATERIAL
[French]
DISPOSITIF DE NANOFILTRATION POUR LA DÉSACTIVATION D'AGENTS PATHOGÈNES FILTRÉS À L'AIR SUR UN MATÉRIAU FILTRANT TRAITÉ EN SURFACE
Applicants **
VÝSKUMNÝ ÚSTAV PAPIERA A CELULÓZY, A.S.
Inventors
BOHÁČEK, Štefan
SOOŠ, Ľubomír
TÓTH, Marcela
STANKOVSKÁ, Monika
PAŽITNÝ, Andrej
IHNÁT, Vladimír
KUŇA, Vladimír
BALBERČÁK, Jozef
SCHWARTZ, Jiří
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
|
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2087 | |
| EPO | Filing, Examination, Granting | 12570 | |
| Japan | Filing, Examination, Granting | 2306 | |
| South Korea | Filing, Examination, Granting | 2172 | |
| USA | Filing, Examination, Granting | 4930 |
Total:
24,065
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

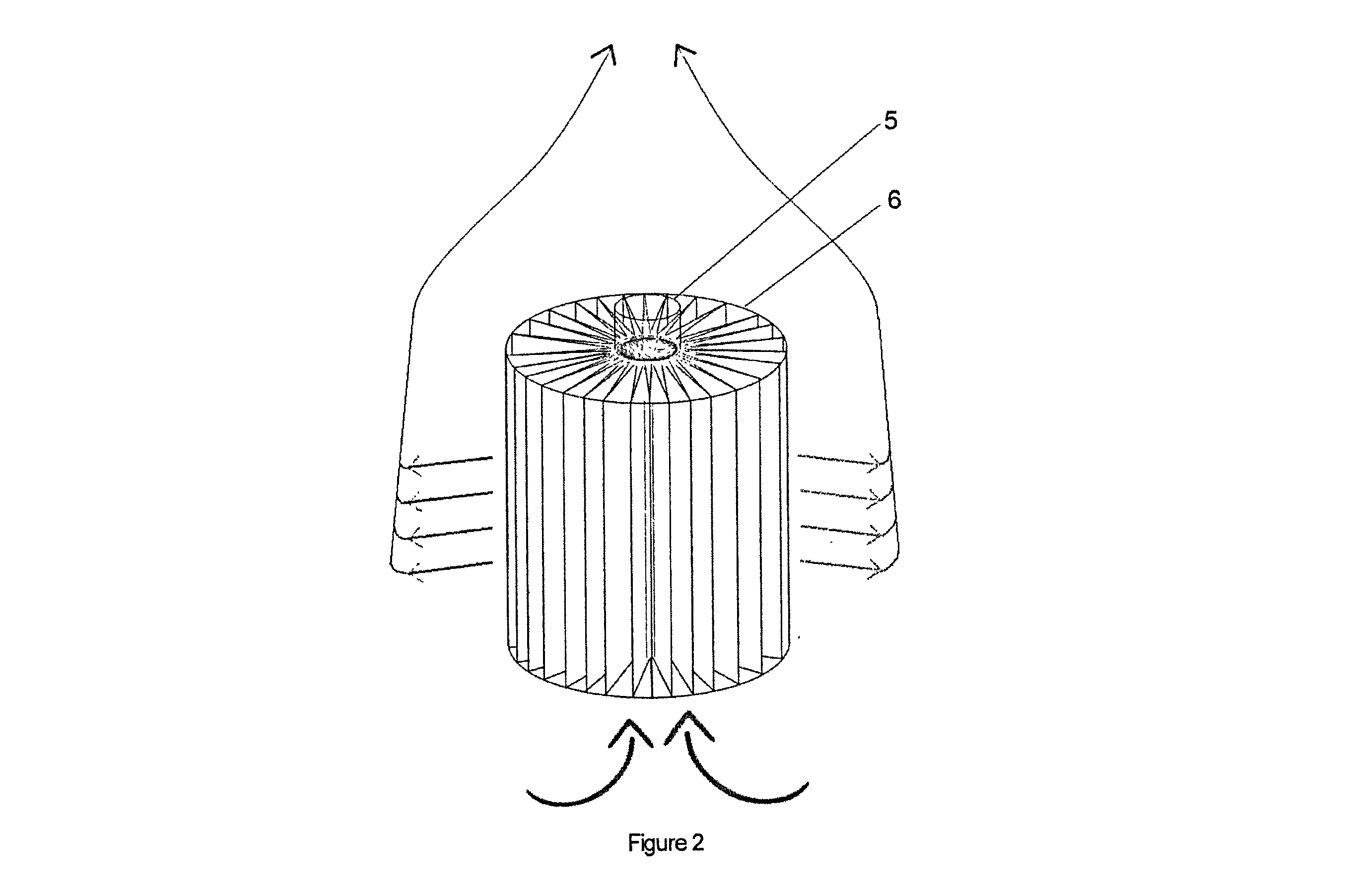

The object of the invention is a nanofiltration device for inactivating droplet- transmitted pathogens. The microdroplets are captured by filtering contaminated air on a filter material/paper with the nanoflbrillated cellulose and/or nanocellulose surface treatment containing antiseptic metal ions and an adjuvant in the retained residual water. The air is sucked into the openings of the nanofiltration device located at the bottom passes Into the center of the filter cartridge, in which a germicidal emitter emits radiation In the UV-C range of the electromagnetic wavelength spectrum is mounted. Subsequently, it flows through a filter paper containing salts of antiseptic metals, from the center from the radiator outwards through a filter paper hermetically inserted into the filter cartridge, folded harmoniously so that its surface is maximally and entirely irradiated with UV-C radiation. Antiseptic ions diffuse into the contaminated microdroplets, which with UV-C radiation deactivate viruses and disinfect bacteria. Subsequently, the droplets dry out, and the deactivated viruses and bacteria are carried away by air, which, with the help of adjuvants, receive the human body and increase the population's immunity.[French]
L'objet de l'invention est un dispositif de nano-filtration pour inactiver des agents pathogènes transmis par gouttelettes. Les microgouttelettes sont capturées par filtration d'air contaminé sur un matériau/papier filtrant avec la cellulose nanofibrillée et/ou le traitement de surface de nanocellulose contenant des ions métalliques antiseptiques et un adjuvant dans l'eau résiduelle retenue. L'air est aspiré dans les ouvertures du dispositif de nanofiltration situé au fond passe dans le centre de la cartouche filtrante, dans lequel un émetteur germicide émet un rayonnement dans la plage UV-C du spectre de longueur d'onde électromagnétique est monté. Ensuite, il s'écoule à travers un papier filtrant contenant des sels de métaux antiseptiques, depuis le centre du radiateur vers l'extérieur à travers un papier filtrant inséré hermétiquement dans la cartouche filtrante, plié harmonieusement de telle sorte que sa surface est irradiée au maximum et entièrement avec un rayonnement UV-C. Les ions antiseptiques se diffusent dans les microgouttelettes contaminées qui, avec le rayonnement UV-C, désactivent les virus et désinfectent les bactéries. Ensuite, les gouttelettes sèches, et les virus et les bactéries désactivés sont emportés par l'air, ce qui, à l'aide d'adjuvants, reçoit le corps humain et augmente l'immunité de la population.
