WO2024162880 - ATTACHMENT DEVICE, KIT COMPRISING A HANDHELD POWER TOOL AND AN ATTACHEMENT DEVICE, AND HANDHELD POWER TOOL
National phase entry is expected:
Publication Number
WO/2024/162880
Publication Date
08.08.2024
International Application No.
PCT/SE2023/051313
International Filing Date
28.12.2023
Title **
[English]
ATTACHMENT DEVICE, KIT COMPRISING A HANDHELD POWER TOOL AND AN ATTACHEMENT DEVICE, AND HANDHELD POWER TOOL
[French]
DISPOSITIF DE FIXATION, KIT COMPRENANT UN OUTIL ÉLECTRIQUE PORTATIF ET UN DISPOSITIF DE FIXATION, ET OUTIL ÉLECTRIQUE PORTATIF
Applicants **
HUSQVARNA AB
561 82 Huskvarna, SE
Inventors
JONSSON, Andreas
c/o Husqvarna AB
IP Dept.
561 82 Huskvarna, SE
KINDLUNDH, Anna
c/o Husqvarna AB
IP Dept.
561 82 Huskvarna, SE
HERMANSSON, Eric
c/o Husqvarna AB
IP Dept.
561 82 Huskvarna, SE
Priority Data
2350082-0
30.01.2023
SE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1631 | |
| EPO | Filing, Examination | 10177 | |
| Japan | Filing | 592 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 4835 |
Total: 17810 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

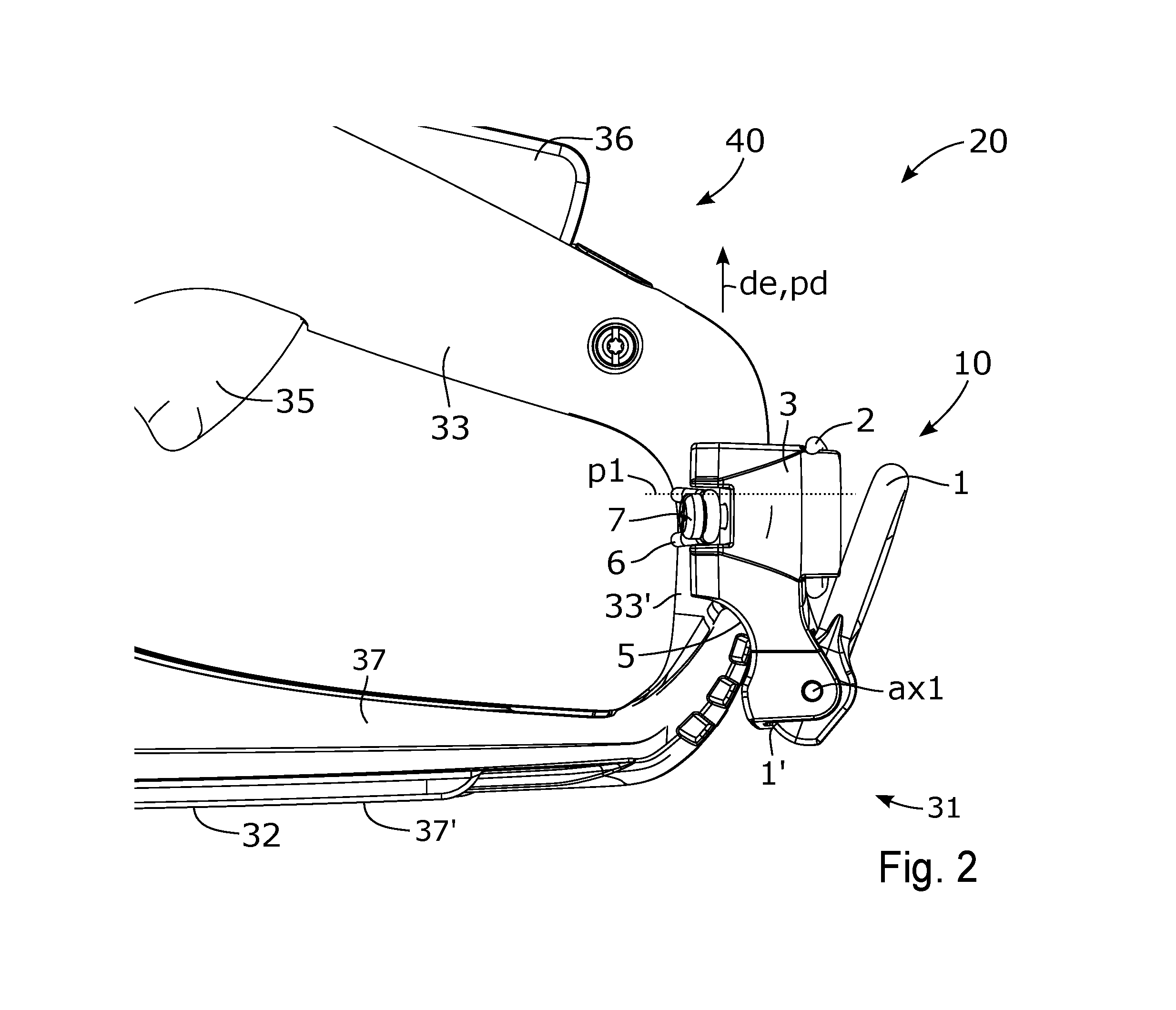

An attachment device (10) is disclosed comprising a device body (3) comprising a fastening section (5) configured to be fastened against an elongated portion (33') of the handheld power tool (40) such that a predetermined direction (pd) of the device (10) coincides with a direction of elongation (de) of the elongated portion (33'), and an attachment loop (1) pivotally arranged on the device body (3) around a first pivot axis (ax1) between a storage position and use position. The angle (a1) between the first pivot axis (ax1) and the predetermined direction (pd) is within the range of 70 - 110 degrees or is within the range of 80 - 100 degrees. The present disclosure further relates to a kit (20) comprising a handheld power tool (40) and an attachment device (10) as well as a handheld power tool (40) comprising an attachment device (10).[French]
Est divulgué un dispositif de fixation (10) comprenant un corps de dispositif (3) comprenant une partie de fixation (5) conçue pour être fixée contre une partie allongée (33') de l'outil électrique portatif (40) de sorte qu'une direction prédéterminée (pd) du dispositif (10) coïncide avec une direction d'allongement (de) de la partie allongée (33'), et une boucle de fixation (1) disposée pivotante sur le corps de dispositif (3) autour d'un premier axe de pivotement (ax1) entre une position de stockage et une position d'utilisation. L'angle (a1) entre le premier axe de pivotement (ax1) et la direction prédéterminée (pd) se situe dans la plage de 70 à 110 degrés ou dans la plage de 80 à 100 degrés. La présente divulgation concerne en outre un kit (20) comprenant un outil électrique portatif (40) et un dispositif de fixation (10), ainsi qu'un outil électrique portatif (40) comprenant un dispositif de fixation (10).
