WO2024242599 - AN UNDERWATER UNMANNED VEHICLE DOCKING ARRANGEMENT
National phase entry:
Publication Number
WO/2024/242599
Publication Date
28.11.2024
International Application No.
PCT/SE2023/051279
International Filing Date
18.12.2023
Title **
[English]
AN UNDERWATER UNMANNED VEHICLE DOCKING ARRANGEMENT
[French]
AGENCEMENT D'ACCOSTAGE DE VÉHICULE SOUS-MARIN SANS ÉQUIPAGE
Applicants **
ELEVATED LAUNCH AB
C/O Norström
Slingergatan 12
43169 Mölndal, SE
Inventors
NORSTRÖM, Markus
Slingergatan 12
43169 Mölndal, Sverige, SE
SANDSTEDT, Jonas
Ekåsavägen 3
44165 Alingsås, SE
Priority Data
2330230-0
22.05.2023
SE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
SPRO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1107 | |
| EPO | Filing, Examination | 4969 | |
| Japan | Filing | 597 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2710 |
Total: 9958 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

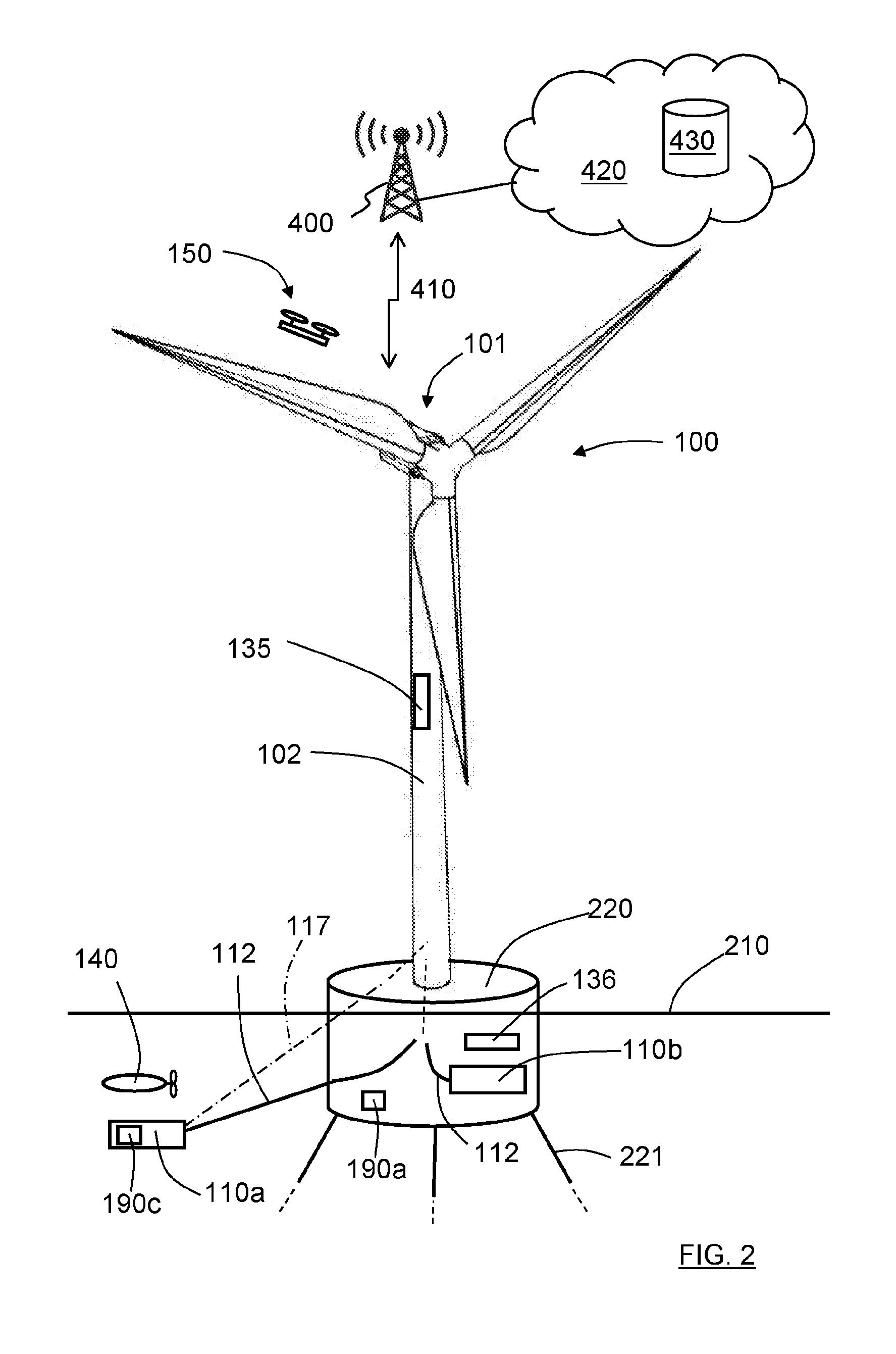

The present disclosure relates to an off-shore wind power plant arrangement (100) comprising a wind power plant tower (102) and a wind power plant nacelle arrangement (101) The wind power plant arrangement (100) comprises an unmanned underwater vehicle, UUV, docking arrangement (110a, 110b) that is adapted to accommodate at least one remotely controlled UUV (140) and comprises an electrical charging connection (112). The electrical charging connection (112) is adapted to electrically connect and charge a re-chargeable battery arrangement (141) comprised in a UUV (140) to an electrical power source (113) comprised in the wind power plant arrangement (100) via at least one power interface means (180). Furthermore, the wind power plant arrangement (100) comprises at least one hydroacoustic sensor arrangement (190a, 190b, 190c).[French]
La présente invention concerne un agencement de centrale éolienne en mer (100) comprenant une tour de centrale éolienne (102) et un agencement de nacelle de centrale éolienne (101). L'agencement de centrale éolienne (100) comprend un agencement d'accostage de véhicule sous-marin sans équipage (UUV) (110a, 110b) qui est conçu pour recevoir au moins un UUV commandé à distance (140) et comprend un raccordement de charge électrique (112). La connexion de charge électrique (112) est conçue pour connecter électriquement et charger un agencement de batterie rechargeable (141) compris dans un UUV (140) à une source d'alimentation électrique (113) comprise dans l'agencement de centrale éolienne (100) par l'intermédiaire d'au moins un moyen électrique d'interface (180). En outre, l'agencement de centrale éolienne (100) comprend au moins un agencement de capteur hydroacoustique (190a, 190b, 190c).
