WO2026120618 - A GUIDE RAIL STAND OR TRANSMISSION LINE FOR A HEAVY MACHINE
National phase entry is expected:
Publication Number
WO/2026/120618
Publication Date
11.06.2026
International Application No.
PCT/IN2025/051966
International Filing Date
29.11.2025
Title **
[English]
A GUIDE RAIL STAND OR TRANSMISSION LINE FOR A HEAVY MACHINE
[French]
SOCLE DE RAIL DE GUIDAGE OU LIGNE DE TRANSMISSION POUR UNE MACHINE LOURDE
Applicants **
SHUKLA, Manoj Krishna
Inventors
SHUKLA, Manoj Krishna
Priority Data
202421044106
05.12.2024
IN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
IP India
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1979 | |
| EPO | Filing, Examination, Granting | 8704 | |
| Japan | Filing, Examination, Granting | 1998 | |
| South Korea | Filing, Examination, Granting | 1804 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,225
Contact Us
Abstract[English]

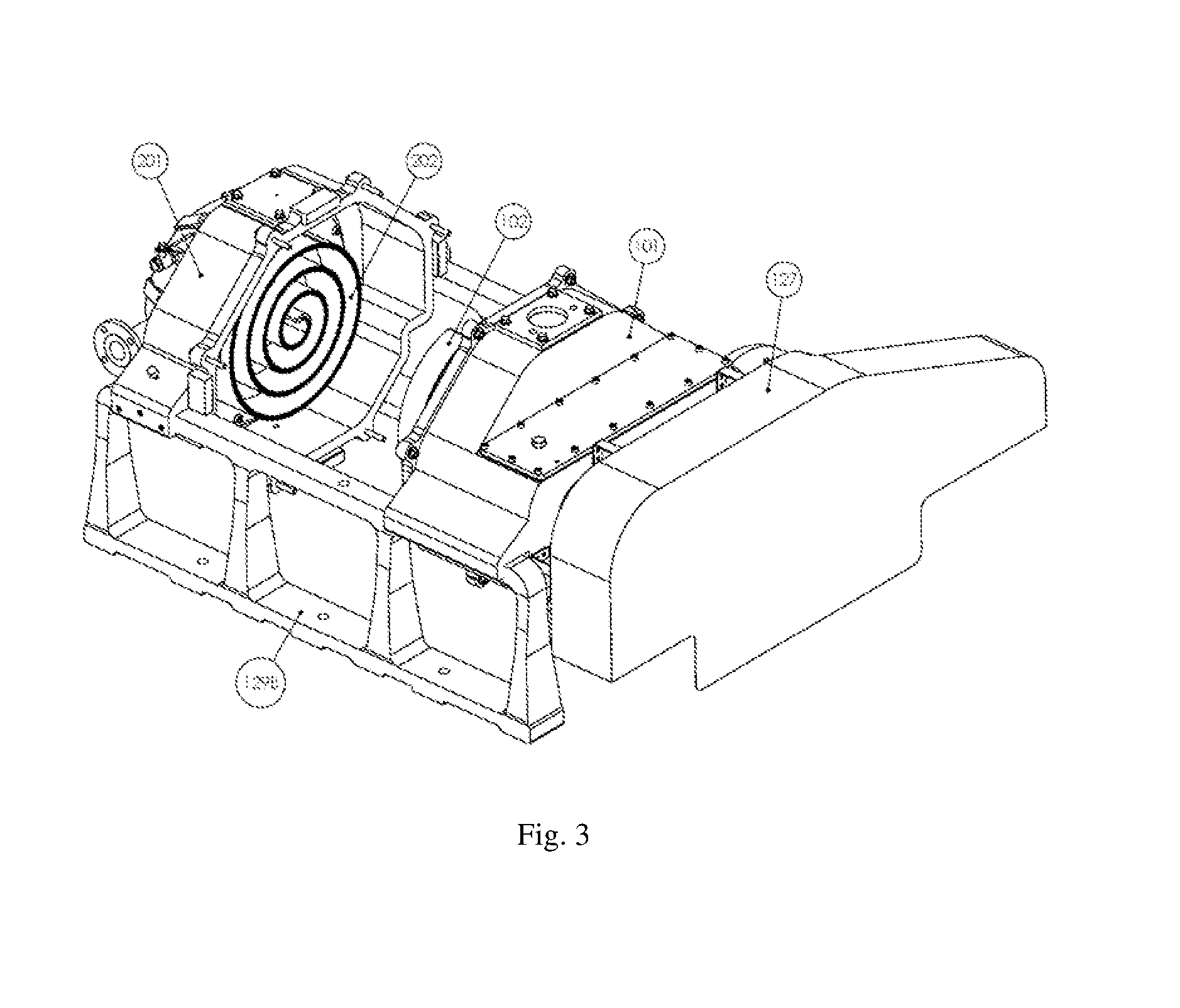

The present invention relates to a transmission stand assembly for mounting and operating high-capacity scroll-type machines, such as vacuum pumps. The assembly comprises a transmission casing (101) with a moving scroll (102), a fixed casing (201) with a fixed scroll (202), and at least one transmission stand selected from (129A, and 129B). The fixed casing is configured to slide over the transmission stand using a guiding mechanism, enabling precise back-and-forth motion between open and closed positions for maintenance or operation. Guiding mechanisms may include rail-based systems, track and roller systems, or linear bearings, supporting both horizontal and vertical orientations. The design ensures 1000 nanometer-level alignment accuracy and accommodates manual or mechanical actuation. This system significantly reduces downtime, enhances safety, and improves the ease of inspection and servicing for scroll-type machinery.[French]
