WO2023187810 - AN INVERTER MODULE ASSEMBLY
National phase entry is expected:
Publication Number
WO/2023/187810
Publication Date
05.10.2023
International Application No.
PCT/IN2023/050074
International Filing Date
23.01.2023
Title **
[English]
AN INVERTER MODULE ASSEMBLY
[French]
ENSEMBLE MODULE ONDULEUR
Applicants **
TVS MOTOR COMPANY LIMITED
“Chaitanya”,
No.12 Khader Nawaz Khan Road,
Nungambakkam
Chennai, 600 006, IN
Inventors
GODWIN, George
TVS Motor Company Limited,
“Chaitanya”,
No.12 Khader Nawaz Khan Road,
Nungambakkam Chennai 600 006, IN
SENTHILNATHAN, Subbiah
TVS Motor Company Limited,
“Chaitanya”,
No.12 Khader Nawaz Khan Road,
Nungambakkam Chennai 600 006, IN
Priority Data
202241019781
31.03.2022
IN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1007 | |
| EPO | Filing, Examination | 4719 | |
| Japan | Filing | 602 | |
| South Korea | Filing | 576 | |
| USA | Filing, Examination | 2635 |
Total: 9539 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

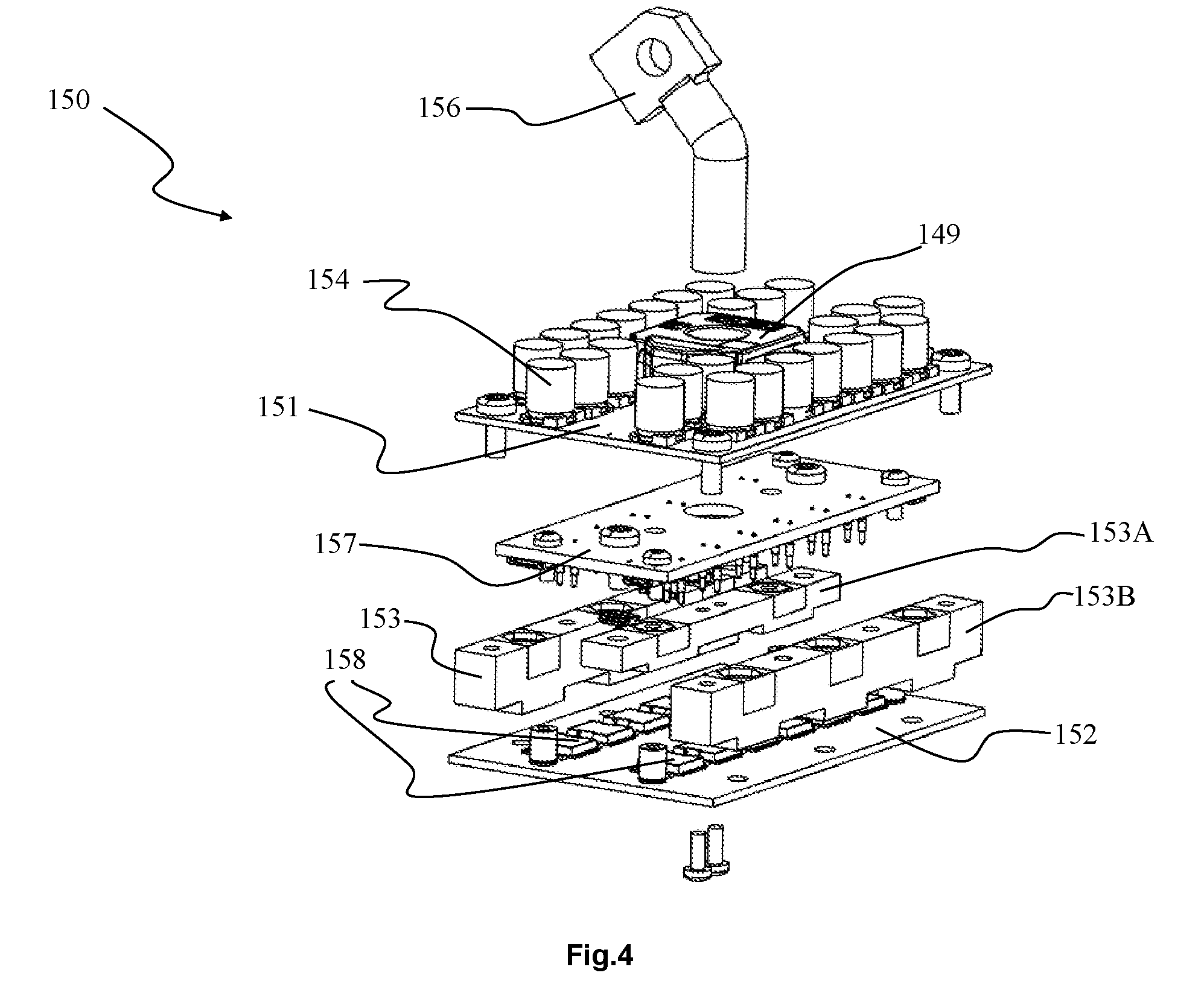

An inverter module assembly (170) for an inverter (110), said inverter module assembly (170) comprising: a power board (152), a driver board (157), a plurality of busbars (153, 153A, 153B) and a capacitor and sensor board (151). The driver board (157) is configured to accommodate plurality of transistors (158). The plurality of busbars (153, 153A, 153B) are disposed between said power board (152) and said driver board (157) and the capacitor and current sensor board (151) is parallelly mounted to said driver board (157) and said power board (152). The power board (152) is electrically isolated, and the power board (152) is mounted to an inverter casing (110), to dissipate heat from plurality of transistors (158).[French]
