WO2026028054 - TWO-STAGE PRESSURE RELIEF FUEL TANK ISOLATION VALVE
National phase entry is expected:
Publication Number
WO/2026/028054
Publication Date
05.02.2026
International Application No.
PCT/IB2025/057579
International Filing Date
25.07.2025
Title **
[English]
TWO-STAGE PRESSURE RELIEF FUEL TANK ISOLATION VALVE
[French]
SOUPAPE D'ISOLEMENT DE RÉSERVOIR DE CARBURANT À DÉTENTE DE PRESSION À DEUX ÉTAGES
Applicants **
EATON INTELLIGENT POWER LIMITED
Inventors
MCLAUCHLAN, Raymond Bruce
TENBROEK, Joseph
O'NEIL, Brian James
BOYCHUK, Robert J.
HILDEBRANDT, Mark William
COPE, Bryan
Priority Data
63/676,758
29.07.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2222 | |
| EPO | Filing, Examination, Granting | 10844 | |
| Japan | Filing, Examination, Granting | 2307 | |
| South Korea | Filing, Examination, Granting | 2385 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
22,498
Contact Us
Abstract[English]

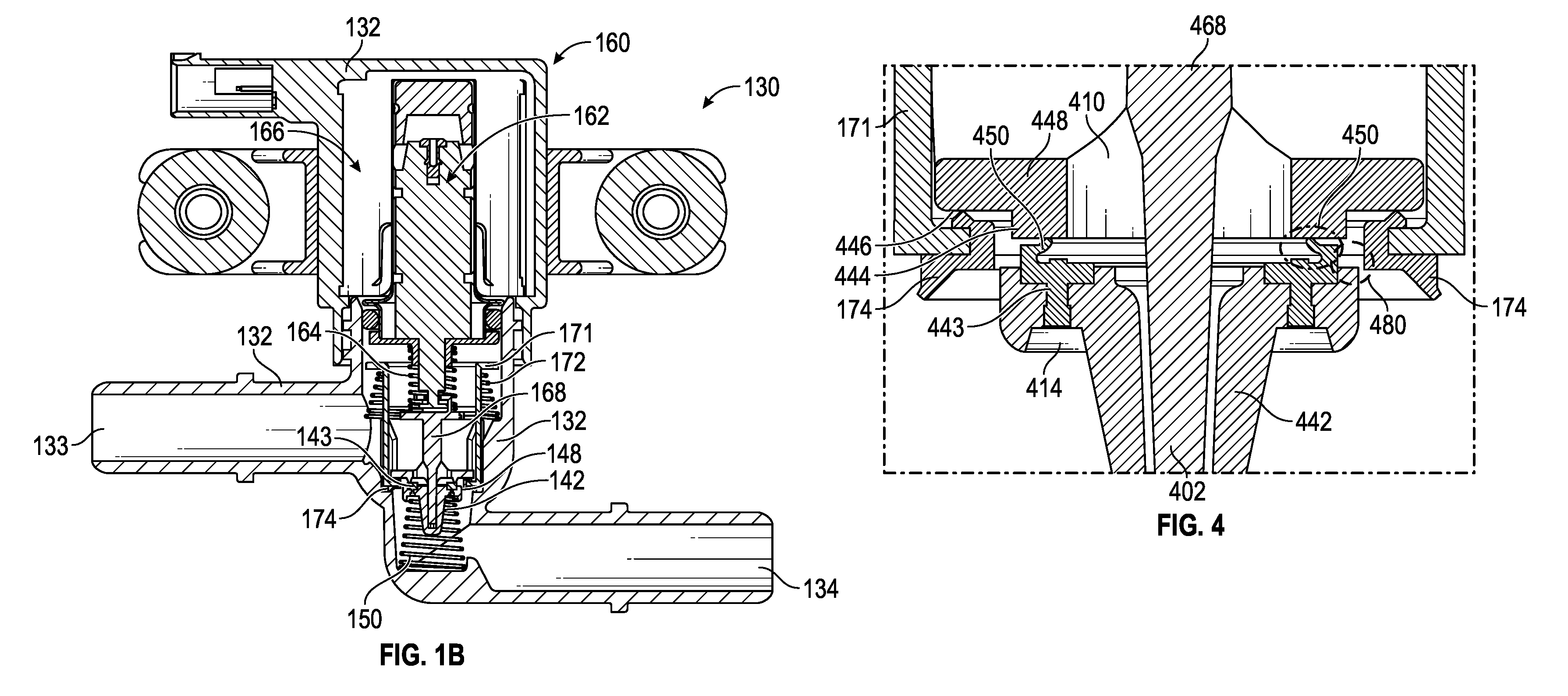

A valve assembly (130) for a fuel tank is disclosed, featuring a valve housing (132) with an inlet (133), outlet (144), and an internal chamber. A cage (171) is positioned within this chamber, housing a movable sealing element (168) with a disk (148) at its lower end. This disk includes apertures (210) for vapor passage. An outer seal (174) is coupled to the bottom of the cage. Below the disk is an over pressure release (OPR) seal (142), to which an inner seal component (443) with a seal lip 450 is attached. The inner seal component is configured to seal a vapor passage between the disk and the OPR seal when these components are pressed together. Conversely, the seal lip guides vapor flow toward this passage when the disk and OPR seal separate.[French]
L'invention concerne un ensemble soupape (130) pour un réservoir de carburant, comprenant un boîtier de soupape (132) avec une entrée (133), une sortie (144) et une chambre interne. Une cage (171) est positionnée à l'intérieur de cette chambre, logeant un élément d'étanchéité mobile (168) avec un disque (148) à son extrémité inférieure. Ce disque comporte des orifices (210) de passage de vapeur. Un joint externe (174) est couplé au fond de la cage. En dessous du disque se trouve un joint de libération de surpression (OPR) (142), auquel est fixé un composant d'étanchéité interne (443) pourvu d'une lèvre d'étanchéité (450). Le composant d'étanchéité interne est conçu pour obturer un passage de vapeur entre le disque et le joint OPR lorsque ces composants sont pressés l'un contre l'autre. Inversement, la lèvre d'étanchéité guide le flux de vapeur vers ce passage lorsque le disque et le joint OPR se séparent.
