WO2025158330 - BINOCULAR ASSEMBLY FOR USE WITH A MICROSCOPE
National phase entry is expected:
Publication Number
WO/2025/158330
Publication Date
31.07.2025
International Application No.
PCT/IB2025/050736
International Filing Date
23.01.2025
Title **
[English]
BINOCULAR ASSEMBLY FOR USE WITH A MICROSCOPE
[French]
ENSEMBLE BINOCULAIRE DESTINÉ À ÊTRE UTILISÉ AVEC UN MICROSCOPE
Applicants **
ALCON INC.
Inventors
VASSEUR, Carlos
MCCULLOCH, Philip Matthew
VOITA, Christopher Paul
Priority Data
63/625,078
25.01.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2169 | |
| EPO | Filing, Examination, Granting | 10664 | |
| Japan | Filing, Examination, Granting | 2307 | |
| South Korea | Filing, Examination, Granting | 2385 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
22,265
Contact Us
Abstract[English]

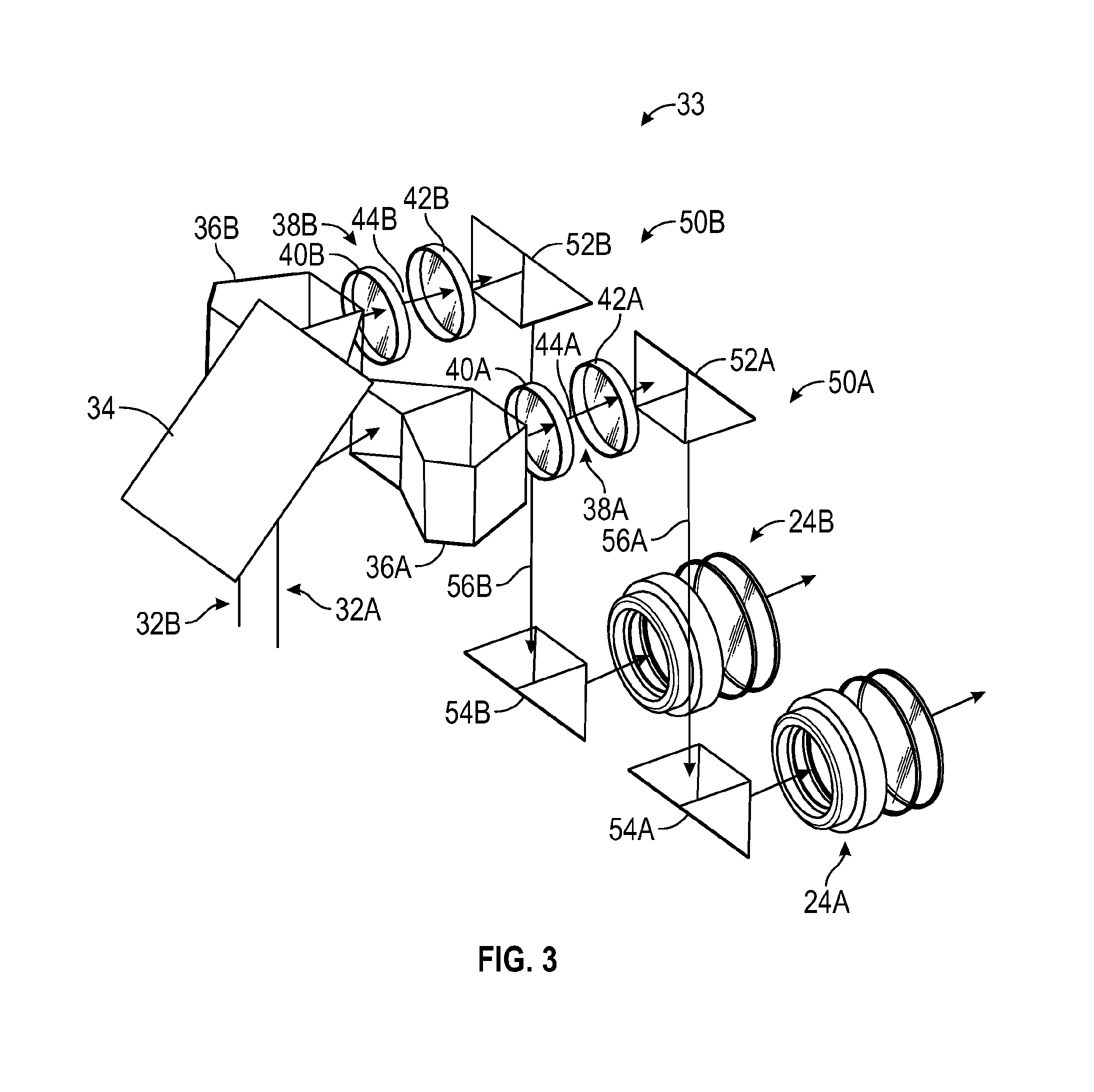

A binocular assembly (20) includes a first optical pathway (32A) extending from a flat plate mirror (34) to a first eyepiece assembly (24A). The first optical pathway (32A) includes a first penta-right angle prism (36A), a first optical focusing assembly (38A) located along a first focusing axis (44A) for focusing the first optical pathway (32A) from the first penta-right angle prism (36A), and a first pair of right-angle prisms (50A) located along a first prism axis. The binocular assembly also includes a second optical pathway (32B) extending from the flat plate mirror (34) to a second eyepiece assembly (24B). The second optical pathway (32B) includes a second penta-right angle prism (36B), a second optical focusing assembly (38B) located along a second focusing axis (44B) for focusing the second optical pathway (32B) from the second penta-right angle prism (36B), and a second pair of right-angle prisms (50B) located along a second prism axis.[French]
Un ensemble binoculaire (20) comprend un premier trajet optique (32A) s'étendant d'un miroir en plaque plate (34) à un premier ensemble oculaire (24A). Le premier trajet optique (32A) comprend un premier prisme à angle droit-penta (36A), un premier ensemble de focalisation optique (38A) situé le long d'un premier axe de focalisation (44A) pour focaliser le premier trajet optique (32A) à partir du premier prisme à angle droit-penta (36A), et une première paire de prismes à angle droit (50A) situés le long d'un premier axe de prisme. L'ensemble binoculaire comprend également un second trajet optique (32B) s'étendant du miroir en plaque plate (34) à un second ensemble oculaire (24B). Le second trajet optique (32B) comprend un second prisme à angle droit-penta (36B), un second ensemble de focalisation optique (38B) situé le long d'un second axe de focalisation (44B) pour focaliser le second trajet optique (32B) à partir du second prisme à angle droit-penta (36B), et une seconde paire de prismes à angle droit (50B) situés le long d'un second axe de prisme.
