WO2026047374 - OPTIMIZED CONDENSER: AN INDIRECT EVAPORATIVE COOLING SYSTEM WITH A MECHANISM OF PLACING THE WATER FILM IN THE VICINITY OF THE COMBINED AIR DIRECTED ON ONE SIDE OF THE METAL SURFACE OF THE MAIN COOLING ELEMENTS AGAINST THE COLLISION OF THE TARGET AIR PERPENDICULAR TO THE OTHER SIDE OF THE SURFACE OF THE MENTIONED ELEMENTS AND THE OPTIMAL CONDUCTIVITY OF THE TARGET AIR FLOW IN A VENTURI FORM

National phase entry is expected:
Publication Number WO/2026/047374
Publication Date 05.03.2026
International Application No. PCT/IB2024/058359
International Filing Date 28.08.2024
Title **
[English] OPTIMIZED CONDENSER: AN INDIRECT EVAPORATIVE COOLING SYSTEM WITH A MECHANISM OF PLACING THE WATER FILM IN THE VICINITY OF THE COMBINED AIR DIRECTED ON ONE SIDE OF THE METAL SURFACE OF THE MAIN COOLING ELEMENTS AGAINST THE COLLISION OF THE TARGET AIR PERPENDICULAR TO THE OTHER SIDE OF THE SURFACE OF THE MENTIONED ELEMENTS AND THE OPTIMAL CONDUCTIVITY OF THE TARGET AIR FLOW IN A VENTURI FORM
[French] CONDENSEUR OPTIMISÉ : SYSTÈME DE REFROIDISSEMENT PAR ÉVAPORATION INDIRECTE DOTÉ D'UN MÉCANISME DE PLACEMENT DE FILM D'EAU À PROXIMITÉ DE L'AIR COMBINÉ DIRIGÉ SUR UN CÔTÉ DE LA SURFACE MÉTALLIQUE D'ÉLÉMENTS DE REFROIDISSEMENT PRINCIPAUX CONTRE LA COLLISION DE L'AIR CIBLE PERPENDICULAIRE À L'AUTRE CÔTÉ DE LA SURFACE DES ÉLÉMENTS MENTIONNÉS ET LA CONDUCTIVITÉ OPTIMALE DU FLUX D'AIR CIBLE SOUS FORME DE VENTURI
Applicants **
ASKARI, Mehdi
FALAHZADEH ABARGHOUEI, Seyed Rasoul
Inventors
ASKARI, Mehdi
FALAHZADEH ABARGHOUEI, Seyed Rasoul
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1883
EPO Filing, Examination, Granting8697
Japan Filing, Examination, Granting1908
South Korea Filing, Examination, Granting1514
USA Filing, Examination, Granting5340
MasterCard Visa
Total: 19,342
Contact Us

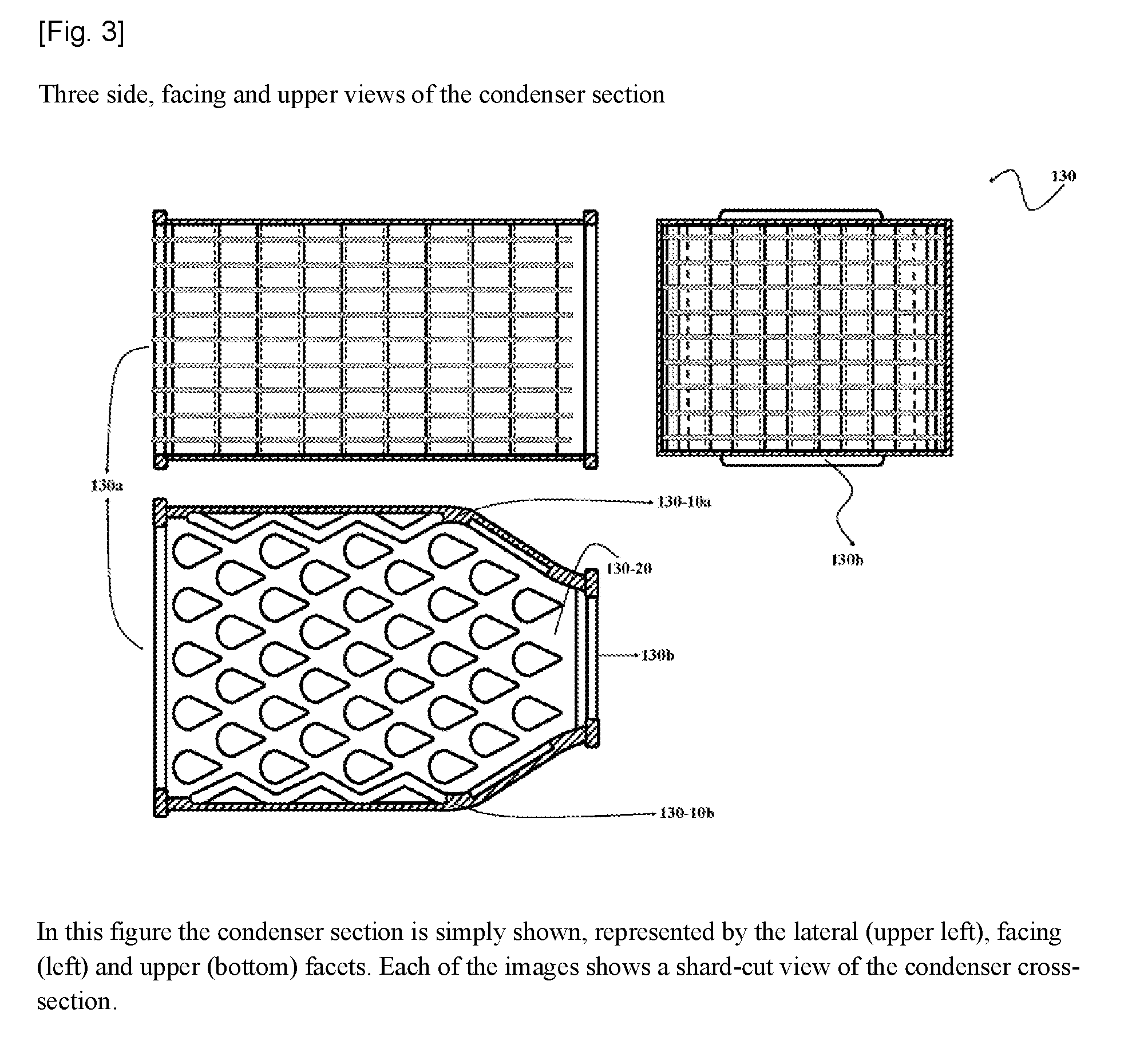

Abstract[English] The optimized condenser is an indirect evaporative cooling system with a mechanism of placing the water film in the vicinity of the combined air directed on one side of the metal surface of the main cooling elements against the impact of the target air perpendicular to the other side of the surface of the said elements and the optimal direction of the target air flow in a venturi shape. This condenser has a weather diffuser in the upper area of the condenser that has valves that are equipped with A sprinkler nozzle consists of a body whose target air outlet is smaller than the target air intake opening. Inside the condenser, there are three types of cooling elements in the form of air passage profiles, the main elements have a curvature against the target airflow and a vertex behind the stream to avoid tornadoes, which are arranged horizontally and crosswise and on both sides of the wall The condenser, angled cooling elements resemble a staircase, and in the funnel area of the condenser body, there are cubic cooling elements. The cooling fins are also located in the form of floors with a small distance, in which the inlet air of the target is divergent and convergent and the side currents of the main axis are all distributed horizontally and vertically, and when colliding with the curved part of the main profiles that have a water film from the inside, the cooling action is performed.[French] Le condenseur optimisé est un système de refroidissement par évaporation indirecte doté d'un mécanisme de placement du film d'eau à proximité de l'air combiné dirigé sur un côté de la surface métallique des éléments de refroidissement principaux contre l'impact de l'air cible perpendiculaire à l'autre côté de la surface desdits éléments et la direction optimale du flux d'air cible sous forme de venturi. Ce condenseur comprend un diffuseur météorologique dans la zone supérieure du condenseur qui possède des vannes. Une buse d'arroseur comprend un corps dont la sortie d'air cible est plus petite que l'ouverture d'entrée d'air cible. À l'intérieur du condenseur, il y a trois types d'éléments de refroidissement sous la forme de profils de passage d'air, les éléments principaux présentent une courbure contre le flux d'air cible et un sommet derrière le flux pour éviter des tornades, qui sont agencés horizontalement et transversalement et des deux côtés de la paroi du condenseur, des éléments de refroidissement inclinés ressemblent à un escalier, et dans la zone d'entonnoir du corps de condenseur, il y a des éléments de refroidissement cubiques. Les ailettes de refroidissement sont également situées sous la forme d'étages avec une faible distance, dans lesquels l'air d'entrée de la cible est divergent et convergent et les courants latéraux de l'axe principal sont tous répartis horizontalement et verticalement, et lorsqu'ils entrent en collision avec la partie incurvée des profils principaux qui possèdent un film d'eau depuis l'intérieur, l'action de refroidissement est effectuée.
