WO2024261649 - AGRICULTURAL BALER FOR PRESSING TWO BALES SIMULTANEOUSLY WITH BALE SHAPE MONITORING SYSTEM
National phase entry is expected:
Publication Number
WO/2024/261649
Publication Date
26.12.2024
International Application No.
PCT/IB2024/055966
International Filing Date
19.06.2024
Title **
[English]
AGRICULTURAL BALER FOR PRESSING TWO BALES SIMULTANEOUSLY WITH BALE SHAPE MONITORING SYSTEM
[French]
PRESSE À BALLES AGRICOLE POUR PRESSER DEUX BALLES SIMULTANÉMENT DOTÉE D’UN SYSTÈME DE SURVEILLANCE DE FORME DE BALLE
Applicants **
AGCO CORPORATION
4205 RIVER GREEN PARKWAY
DULUTH, Georgia 30096, US
Inventors
OLSEN, Robert James
AGCO Corporation
420 W Lincoln Blvd
Hesston, Kansas 67062, US
HERBERS, Eric
AGCO Corporation
420 W Lincoln Blvd
Hesston, Kansas 67062, US
BOLLINGER, Shane
AGCO Corporation
420 W Lincoln Blvd
Hesston, Kansas 67062, US
BOOTON, Kelly
AGCO Corporation
420 W Lincoln Blvd
Hesston, Kansas 67062, US
CHERNEY, Patrick
AGCO Corporation
420 W Lincoln Blvd
Hesston, Kansas 67062, US
Priority Data
63/508,931
19.06.2023
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 955 | |
| EPO | Filing, Examination | 4715 | |
| Japan | Filing | 597 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2710 |
Total: 9552 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

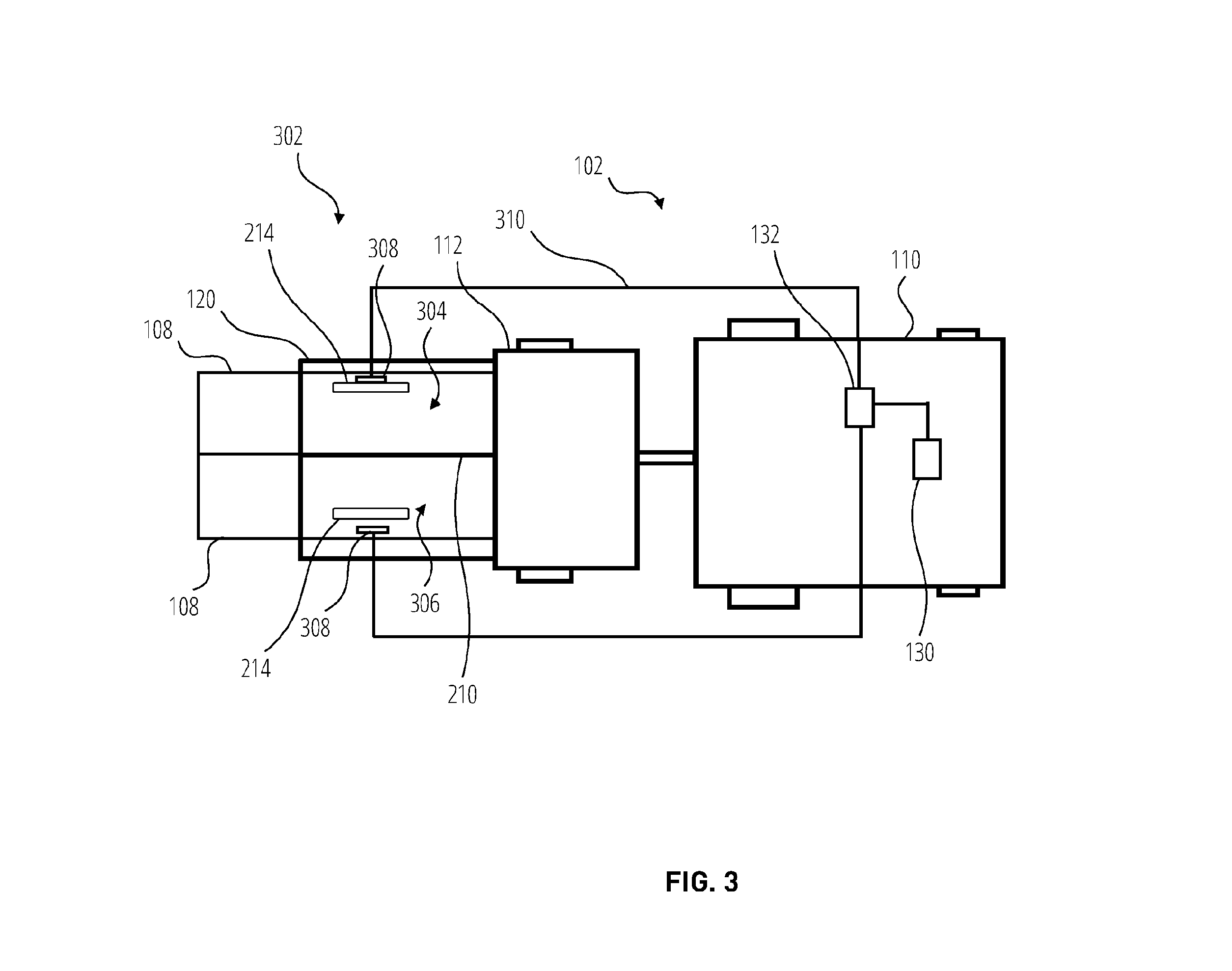

An agricultural baler system (102) having a pickup assembly (122) configured to take cut crop material from the ground and move the crop material to a baling chamber (120). The baling chamber has a knife (208) such that crop material is split into left and right bale forming compartments (304, 306) to simultaneously form a first bale in the left bale-forming compartment and a second bale in the right bale-forming compartment. The baler includes a bale shape monitoring system (302) to monitor the shape of the bales being formed. The bale shape monitoring system includes a bale length measuring device (214) in the left and right bale forming compartments configured to measure changes in bale length and determine differences in the bale length measured by the bale length measuring device in the left bale forming compartment with respect to the bale length measuring device in the right bale forming compartment.[French]
L'invention concerne un système de presse à balles agricole (102) ayant un ensemble de ramassage (122) conçu pour ramasser un matériau de récolte coupé sur le sol et déplacer le matériau de récolte jusqu’à une chambre de mise en balles (120). La chambre de mise en balles comporte un couteau (208) de telle sorte que le matériau de récolte soit divisé dans les compartiments de formation de balles gauche et droit (304, 306) pour former simultanément une première balle dans le compartiment de formation de balles gauche et une seconde balle dans le compartiment de formation de balles droit. La presse à balles comprend un système de surveillance de forme de balle (302) pour surveiller la forme des balles formées. Le système de surveillance de forme de balle comprend un dispositif de mesure de longueur de balle (214) dans les compartiments de formation de balle gauche et droit conçus pour mesurer des changements de longueur de balle et déterminer des différences de longueur de balle mesurées par le dispositif de mesure de longueur de balle dans le compartiment de formation de balle gauche par rapport au dispositif de mesure de longueur de balle dans le compartiment de formation de balle droit.
