WO2024201364 - LOCATING AND SIZING 2D IMAGED FEATURES IN 3D LASER SCANNING COORDINATE SYSTEM
National phase entry is expected:
Publication Number
WO/2024/201364
Publication Date
03.10.2024
International Application No.
PCT/IB2024/053021
International Filing Date
28.03.2024
Title **
[English]
LOCATING AND SIZING 2D IMAGED FEATURES IN 3D LASER SCANNING COORDINATE SYSTEM
[French]
LOCALISATION ET DIMENSIONNEMENT DE CARACTÉRISTIQUES IMAGÉES 2D DANS UN SYSTÈME DE COORDONNÉES DE BALAYAGE LASER 3D
Applicants **
DWFRITZ AUTOMATION, LLC
Inventors
COFFEY, Joe
CADIOU, Aurélien
VANDERGIESSEN, Clint
BAKER, Mark
AQUI, Derek
Priority Data
63/493,678
31.03.2023
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
USPTO
* |
| * | |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2133 | |
| EPO | Filing, Examination, Granting | 11621 | |
| Japan | Filing, Examination, Granting | 2183 | |
| South Korea | Filing, Examination, Granting | 2082 | |
| USA | Filing, Examination, Granting | 4310 |
Total:
22,329
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

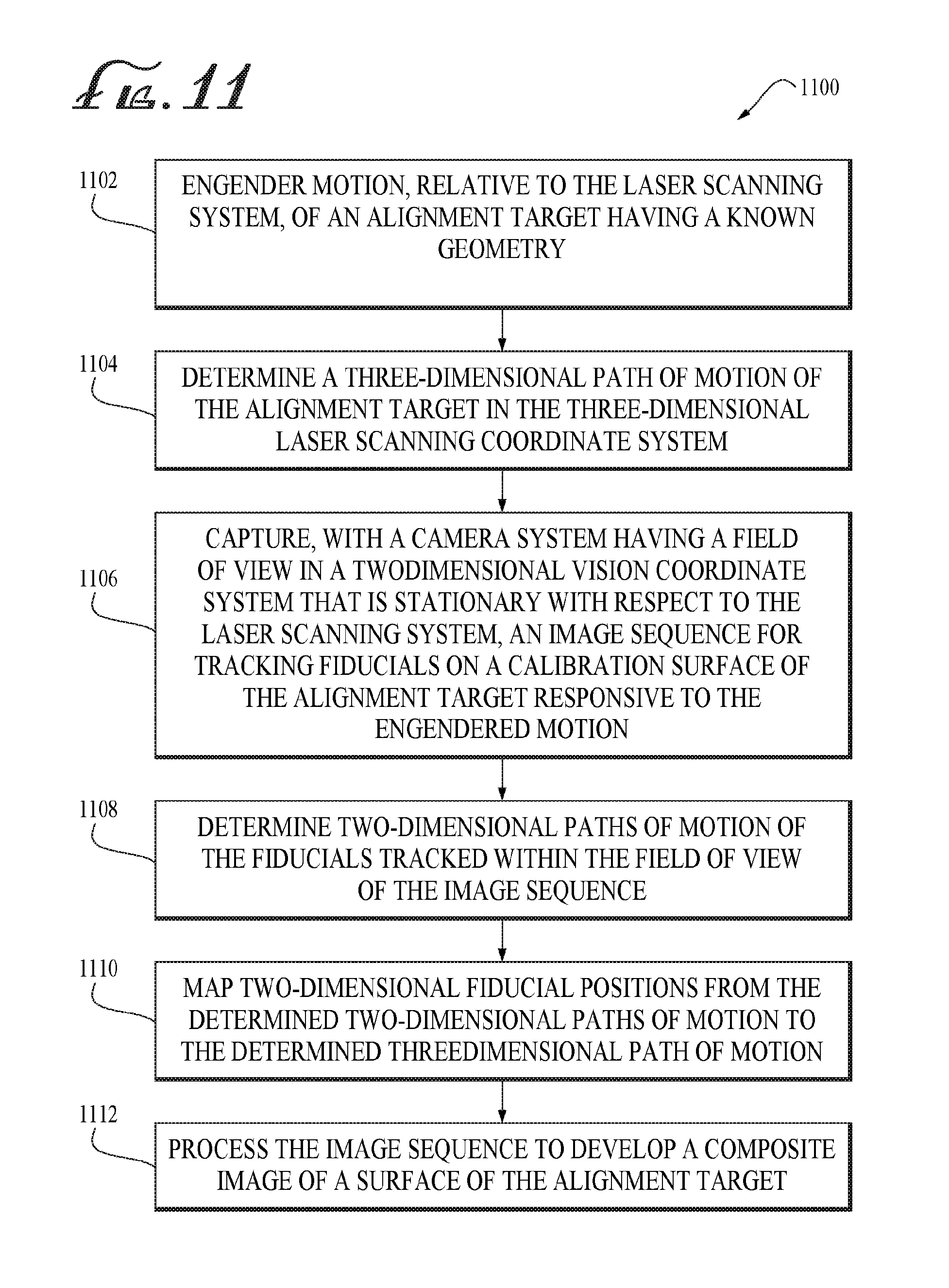

A method of determining a location, in a three-dimensional laser scanning coordinate system for a laser scanning system, of a target, the method comprising: engendering motion, relative to the laser scanning system, of an alignment target having a known geometry; determining a three-dimensional path of motion of the alignment target in the three-dimensional laser scanning coordinate system; capturing, with a camera system having a field of view in a two-dimensional vision coordinate system that is stationary with respect to the laser scanning system, an image sequence for tracking fiducials on a calibration surface of the alignment target responsive to the engendered motion; determining two-dimensional paths of motion of the fiducials tracked within the field of view of the image sequence; and mapping two-dimensional fiducial positions from the two-dimensional paths of motion to the three-dimensional path of motion.[French]
L'invention concerne un procédé de détermination d'un emplacement d'une cible, dans un système de coordonnées de balayage laser tridimensionnel pour un système de balayage laser, le procédé consistant à : engendrer un mouvement, par rapport au système de balayage laser, d'une cible d'alignement à géométrie connue ; déterminer un trajet tridimensionnel de mouvement de la cible d'alignement dans le système de coordonnées de balayage laser tridimensionnel ; capturer, avec un système de caméra ayant un champ de vision dans un système de coordonnées de vision bidimensionnel qui est fixe par rapport au système de balayage laser, une séquence d'images pour suivre des repères sur une surface de calibrage de la cible d'alignement en réponse au mouvement engendré ; déterminer des trajets bidimensionnels de mouvement des repères suivis dans le champ de vision de la séquence d'images ; et cartographier des positions de repères bidimensionnelles à partir des trajets bidimensionnels de mouvement vers le trajet tridimensionnel de mouvement.
