WO2024201305 - VALVE ASSEMBLY HOUSING
National phase entry:
Publication Number
WO/2024/201305
Publication Date
03.10.2024
International Application No.
PCT/IB2024/052906
International Filing Date
26.03.2024
Title **
[English]
VALVE ASSEMBLY HOUSING
[French]
BOÎTIER D'ENSEMBLE SOUPAPE
Applicants **
EATON INTELLIGENT POWER LIMITED
30 Pembroke Road
Dublin, 4, IE
Inventors
MCLAUCHLAN, Raymond
48067 Jester Drive
Macomb Township, Michigan 48044, US
JAIN, Rythm
774/A ward no.6 doodh wali gali
Mehrauli, Delhi 110030, IN
O'NEIL, Brian
29248 Shirah Lane
Chesterfield Twp, Michigan 48051, US
HILDEBRANDT, Mark William
13330 Denver Dr.
Hartland, Michigan 48353, US
Priority Data
202311021888
27.03.2023
IN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1217 | |
| EPO | Filing, Examination | 6348 | |
| Japan | Filing | 530 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2635 |
Total: 11305 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

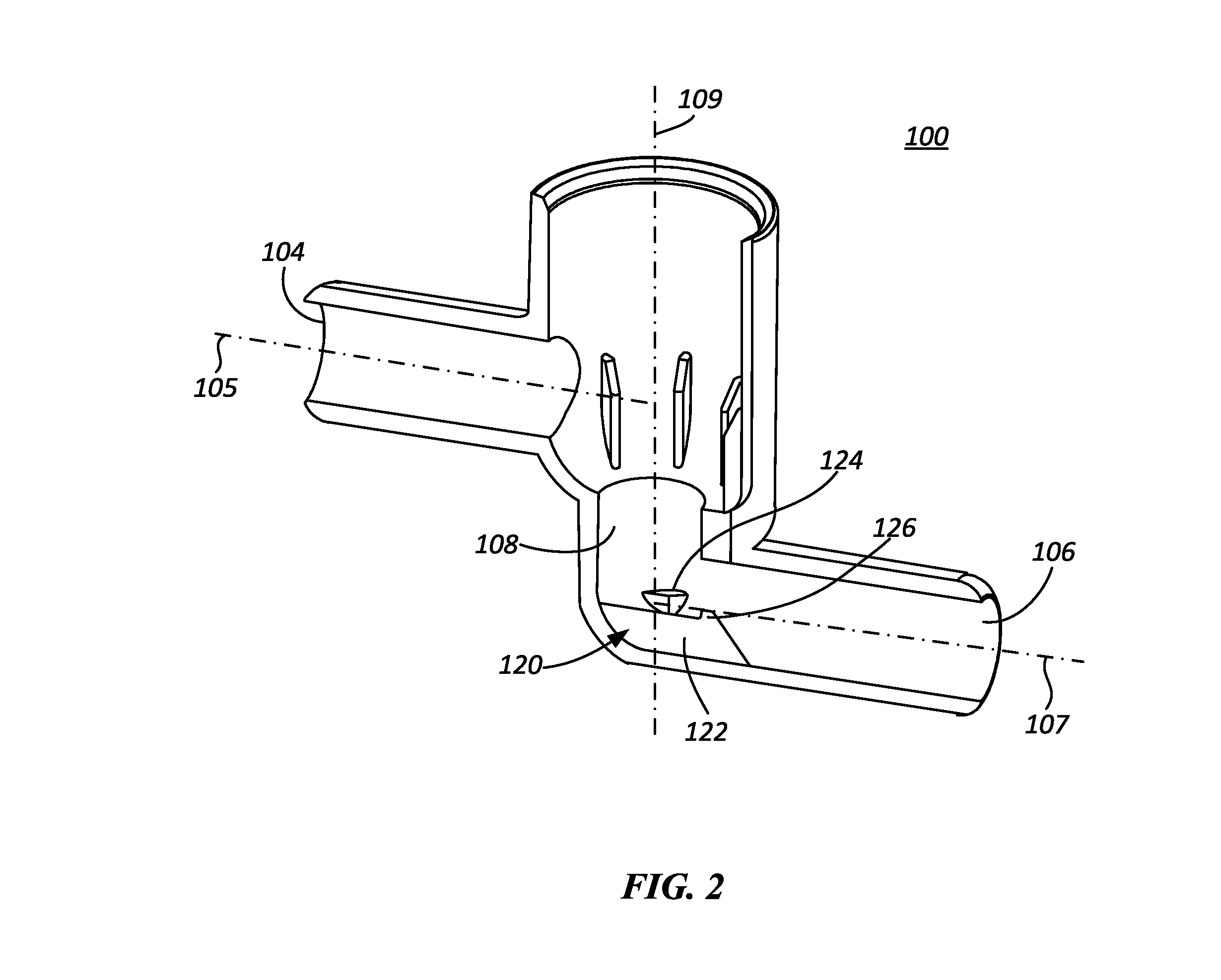

In one embodiment, a valve assembly housing configured to house a valve assembly for a fuel tank is provided. The valve assembly housing includes an inlet, an outlet positioned parallel to and lower than the inlet, a valve cavity connected between the inlet and the outlet, and a main seat positioned in the valve cavity at a location proximate to where the valve cavity transitions to the outlet. The outlet and the inlet have different axes. The valve cavity is configured to house the valve assembly. The main seat is configured to support a spring of the valve assembly disposed along a center axis of the valve cavity. The main seat includes a retainer configured to retain the spring on the main seat.[French]
Dans un mode de réalisation, l'invention propose un boîtier d'ensemble soupape configuré pour loger un ensemble soupape pour un réservoir de carburant. Le boîtier d'ensemble soupape comprend une entrée, une sortie positionnée parallèlement à l'entrée et inférieure à celle-ci, une cavité de soupape reliée entre l'entrée et la sortie, et un siège principal positionné dans la cavité de soupape à un emplacement à proximité de l'endroit où la cavité de soupape passe à la sortie. La sortie et l'entrée possèdent des axes différents. La cavité de soupape est configurée pour loger l'ensemble soupape. Le siège principal est conçu pour supporter un ressort de l'ensemble soupape disposé le long d'un axe central de la cavité de soupape. Le siège principal comprend un élément de retenue configuré pour retenir le ressort sur le siège principal.
