WO2024171130 - RELEASABLE COUPLING ELEMENTS FOR SCREENING PANEL MODULES
National phase entry:
Publication Number
WO/2024/171130
Publication Date
22.08.2024
International Application No.
PCT/IB2024/051485
International Filing Date
16.02.2024
Title **
[English]
RELEASABLE COUPLING ELEMENTS FOR SCREENING PANEL MODULES
[French]
ÉLÉMENTS D'ACCOUPLEMENT AMOVIBLES POUR MODULES DE PANNEAUX DE CRIBLAGE
Applicants **
SANDVIK ROCK PROCESSING AUSTRALIA PTY LIMITED
Inventors
JOHNSTONE, Aidan
Priority Data
23157002.9
16.02.2023
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
* |
| Recordal of a Change of the Applicant's Name/Address | * |
| Type of Assignment | * |
| Applicant's Legal Status | * |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under | * |
| Patent Delivery | * |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2100 | |
| EPO | Filing, Examination, Granting | 10982 | |
| Japan | Filing, Examination, Granting | 2215 | |
| South Korea | Filing, Examination, Granting | 2179 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
22,216
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

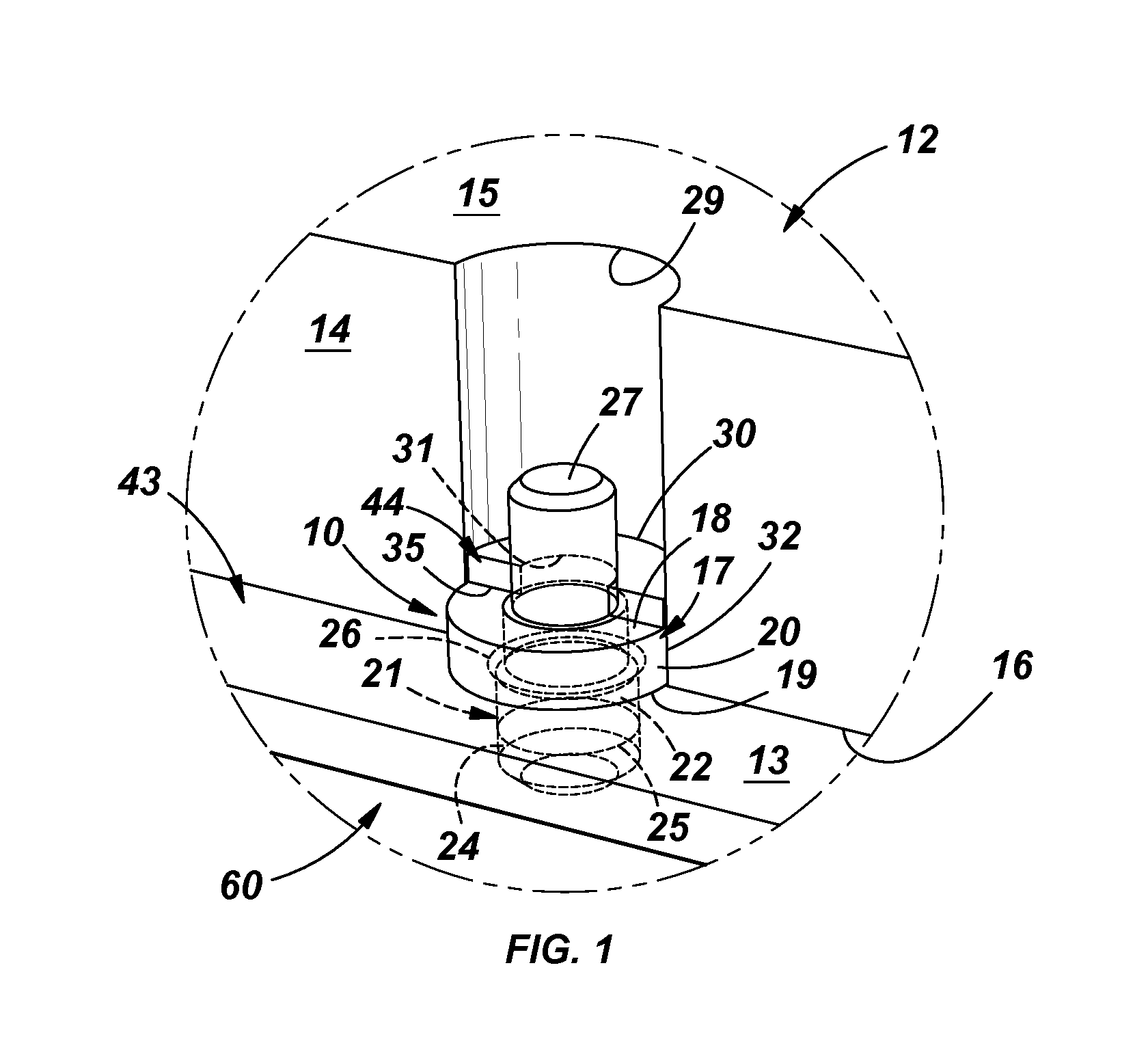

A coupling element (10) for coupling a screening member (12) releasably to a support member (13) in a screening deck (60) used in a material vibrational screening apparatus, the coupling element (10) having a first part (17) with a first zone (18) configured to engage with the screening member (12) with magnetic attraction forces acting to releasably hold the screening member (12) to the coupling element (10), the first part (17) having an oppositely facing second zone (19) configured to engage with the support member (13) with magnetic attraction forces releasably holding the coupling element (10) to the support member (13), the coupling element (10) further having a second part (21, 41) connected to and extending axially downwardly from the first part (17) to engage with the support member (13) to prevent relative movement laterally to the axial direction but not inhibit relative moment in the axial direction.[French]
La présente invention concerne un élément d'accouplement (10) pour accoupler un élément de criblage (12) de manière amovible à un élément de support (13) dans un plateau de criblage (60) utilisé dans un appareil de criblage vibratoire de matériau, l'élément d'accouplement (10) ayant une première partie (17) dotée d'une première zone (18) conçue pour venir en prise avec l'élément de criblage (12) avec des forces d'attraction magnétique agissant pour maintenir de manière amovible l'élément de criblage (12) sur l'élément d'accouplement (10), la première partie (17) ayant une seconde zone opposée (19) conçue pour venir en prise avec l'élément de support (13) avec des forces d'attraction magnétique maintenant de manière amovible l'élément d'accouplement (10) sur l'élément de support (13), l'élément d'accouplement (10) ayant en outre une seconde partie (21, 41) raccordée à la première partie (17) et s'étendant axialement vers le bas depuis celle-ci pour se mettre en prise avec l'élément de support (13) pour empêcher un mouvement relatif de manière latérale par rapport à la direction axiale mais sans empêcher le moment relatif dans la direction axiale.
