WO2024154081 - DUCTING SYSTEM FOR MAXIMUM POWER POINT TRACKING

National phase entry is expected:
Publication Number WO/2024/154081
Publication Date 25.07.2024
International Application No. PCT/IB2024/050481
International Filing Date 18.01.2024
Title **
[English] DUCTING SYSTEM FOR MAXIMUM POWER POINT TRACKING
[French] ENSEMBLE DE GAINES AUX FINS D'UNE RECHERCHE DE POINT MAXIMAL DE PUISSANCE
Applicants **
A - DISTRIBUZIONE GREEN GROUP SRLS Corso Vittorio Emanuele, 15 20122 Milano, IT
Inventors
BERTOLINI, Sara C/O A - DISTRIBUZIONE GREEN GROUP Srls Corso Vittorio Emanuele, 15 20122 Milano, IT
Priority Data
102023000000786   20.01.2023   IT
front page image
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
*
International Searching Authority
*
Applicant's Legal Status
*
*
*
*
*
Entry into National Phase under
*
Translation

Recalculate

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing931
EPO Filing, Examination4639
Japan Filing540
South Korea Filing576
USA Filing, Examination2635
MasterCard Visa

Total: 9321

The term for entry into the National Phase has expired. This quotation is for informational purposes only

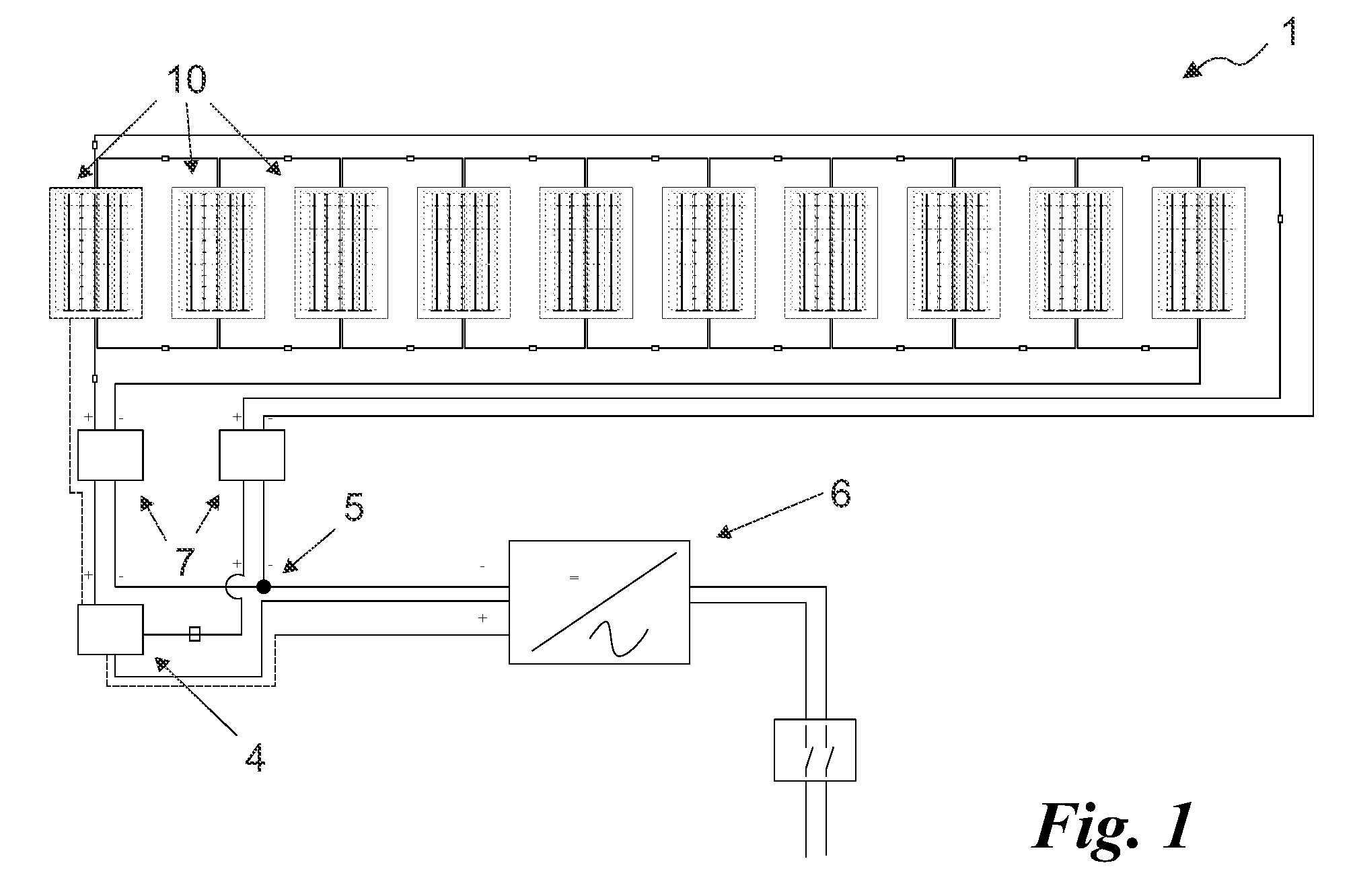

Abstract[English] A ducting system (1) for maximum power point tracking is provided, comprising a first photovoltaic surface (2) suitable for generating a first direct electric current and including a first connector (20) and a second connector (21) configured to transmit a first current with respectively positive and negative polarity; a second photovoltaic surface (3) nearly parallel and offset with respect to the first surface (2), suitable for generating a second direct electric current and including a third connector (30) and a fourth connector (31) for transmitting a second current with respectively positive and negative polarity; a first coupler (4) connected to first and third connector (20, 30) and configured to couple the currents with positive polarity to determine a first positive current signal and including a first and a second input (40, 41) operatively connected respectively to the first and third connector(20, 30), an output (42) suitable for conveying the first signal exiting the first coupler (4), a coupling node (43) connecting inputs (40, 41) and outputs (42), and a controller (44); a second coupler (5) electrically connected to second and fourth connector (21, 31), configured to couple the currents with negative polarity to determine a second negative current signal; an inverter (6) connected to the output (42) and to the second coupler (5); wherein the first coupler (4) further comprises a first diode (45) and a second diode (46) each one arranged between a respective input (40, 41) and the coupling node (43) and configured to differentiate intensities and input voltages of the currents, and wherein the controller (44) adjusts the output voltage of the first signal to the sum of the input intensities so as to calibrate the voltage with respect to the relative position between said surfaces (2, 3) and the sun.[French] L'invention concerne un ensemble de gaines (1) aux fins d'une recherche de point maximal de puissance, comprenant une première surface photovoltaïque (2) appropriée pour générer un premier courant électrique continu et comprenant un premier connecteur (20) et un deuxième connecteur (21) configurés pour transmettre un premier courant présentant une polarité respectivement positive et négative ; une seconde surface photovoltaïque (3) presque parallèle et décalée par rapport à la première surface (2), appropriée pour générer un second courant électrique continu et comprenant un troisième connecteur (30) et un quatrième connecteur (31) pour transmettre un second courant présentant une polarité respectivement positive et négative ; un premier coupleur (4) connecté aux premier et troisième connecteurs (20, 30) et configuré pour coupler les courants présentant une polarité positive pour déterminer un premier signal de courant positif et comprenant des première et seconde entrées (40, 41) connectées fonctionnellement respectivement aux premier et troisième connecteurs (20, 30), une sortie (42) appropriée pour transporter le premier signal sortant du premier coupleur (4), un nœud de couplage (43) reliant des entrées (40, 41) et des sorties (42), et un dispositif de commande (44) ; un second coupleur (5) connecté électriquement aux deuxième et quatrième connecteurs (21, 31), configuré pour coupler les courants présentant une polarité négative pour déterminer un second signal de courant négatif ; un onduleur (6) connecté à la sortie (42) et au second coupleur (5) ; le premier coupleur (4) comprenant en outre une première diode (45) et une seconde diode (46), chacune étant agencée entre une entrée respective (40, 41) et le nœud de couplage (43) et configurée pour différencier des intensités et des tensions d'entrée des courants, et le dispositif de commande (44) ajustant la tension de sortie du premier signal selon la somme des intensités d'entrée de façon à étalonner la tension par rapport à la position relative entre lesdites surfaces (2, 3) et le soleil.
