WO2024154058 - METHOD FOR MANUFACTURING A FIBER-REINFORCED LINK
National phase entry is expected:
Publication Number
WO/2024/154058
Publication Date
25.07.2024
International Application No.
PCT/IB2024/050417
International Filing Date
16.01.2024
Title **
[English]
METHOD FOR MANUFACTURING A FIBER-REINFORCED LINK
[French]
PROCÉDÉ DE FABRICATION D'UNE LIAISON RENFORCÉE PAR DES FIBRES
Applicants **
9T LABS AG
Inventors
STEINKAMP, Florian
INDERKUM, Petra
NETTER, Thomas
ALTHERR, Jan
Priority Data
PCT/IB2023/050375
16.01.2023
IB
24151487.6
11.01.2024
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2513 | |
| EPO | Filing, Examination, Granting | 15766 | |
| Japan | Filing, Examination, Granting | 2616 | |
| South Korea | Filing, Examination, Granting | 3046 | |
| USA | Filing, Examination, Granting | 6740 |
Total:
30,681
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

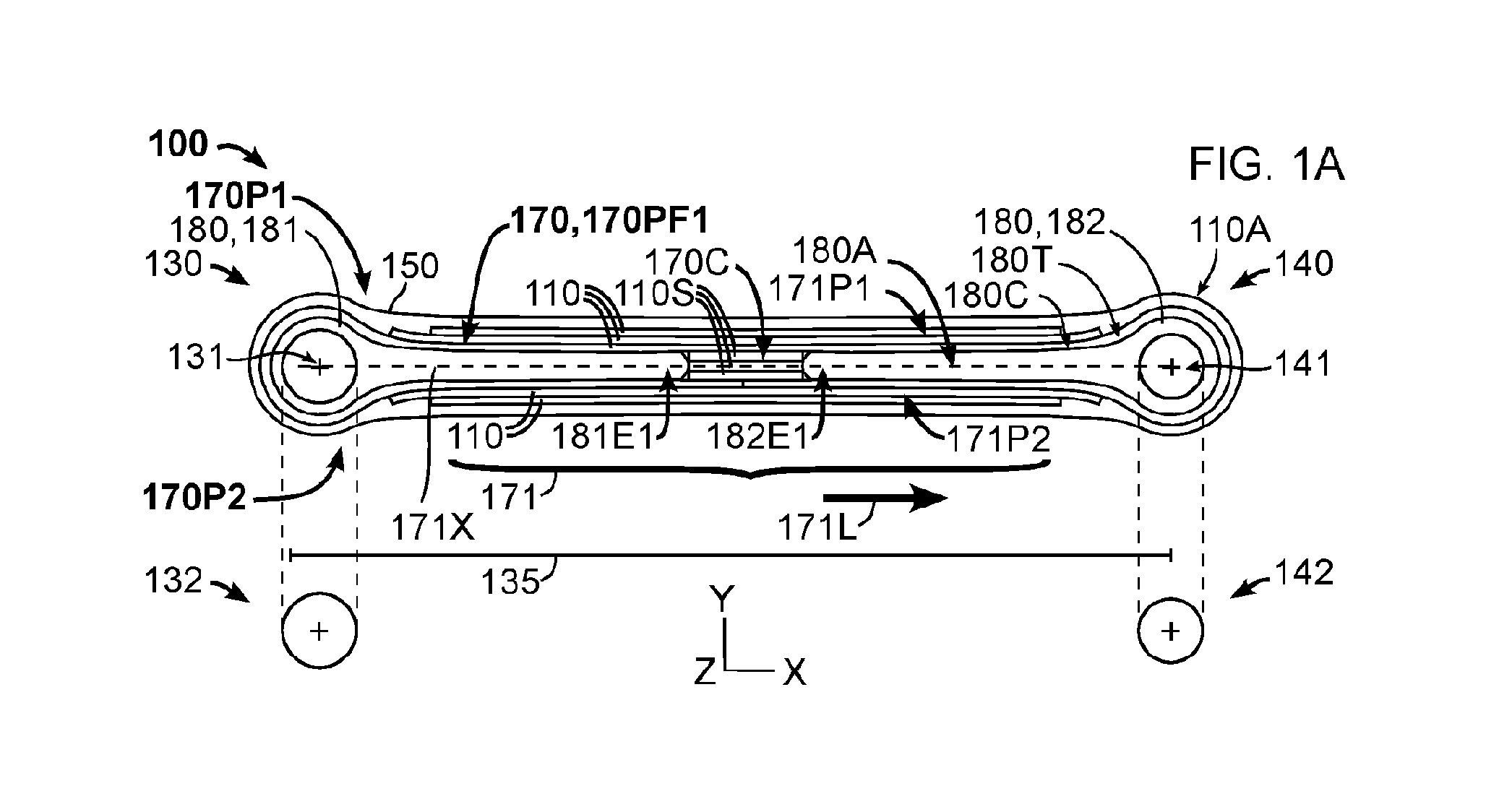

A method (1000) for manufacturing a link (100) comprising comprising one or more inserts (180), wherein an insert comprises an elongate insert portion between a first end position (131) and a second end position (141), the method comprising: forming (1170) one or more preforms (170, 170PF1, 170PF2, 170PF3, 170PF4) comprising an elongate portion (171) between two or more of the end positions (131, 141), wherein the elongate portion comprises filaments (110), each filament along a path, comprising a plurality of one or more of continuous and discontinuous fibers (110F) along an entire length of the filament and oriented parallel to the local longitudinal direction of the filament.[French]
L'invention concerne un procédé (1000) de fabrication d'une liaison (100) comprenant un ou plusieurs inserts (180), un insert comprenant une partie d'insert allongée entre une première position d'extrémité (131) et une seconde position d'extrémité (141), le procédé consistant à : former (1170) une ou plusieurs préformes (170, 170PF1, 170PF2, 170PF3, 170PF4) comprenant une partie allongée (171) entre au moins deux des positions d'extrémité (131, 141), la partie allongée comprenant des filaments (110), chaque filament le long d'un trajet, comprenant une pluralité d'une ou plusieurs fibres continues et discontinues (110F) le long d'une longueur entière du filament et orientées parallèlement à la direction longitudinale locale du filament.
