WO2025037133 - PRESSURE-CONTROL APPARATUSES FOR TESTING SYSTEMS, AND RELATED METHODS
National phase entry is expected:
Publication Number
WO/2025/037133
Publication Date
20.02.2025
International Application No.
PCT/IB2023/058198
International Filing Date
15.08.2023
Title **
[English]
PRESSURE-CONTROL APPARATUSES FOR TESTING SYSTEMS, AND RELATED METHODS
[French]
APPAREILS DE COMMANDE DE PRESSION POUR SYSTÈMES DE TEST, ET PROCÉDÉS ASSOCIÉS
Applicants **
SES HOLDINGS PTE. LTD.
Inventors
THERRIEN, Ian E.
RUFINO, Newton
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
MOIP
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2201 | |
| EPO | Filing, Examination, Granting | 14643 | |
| Japan | Filing, Examination, Granting | 2340 | |
| South Korea | Filing, Examination, Granting | 1832 | |
| USA | Filing, Examination, Granting | 4940 |
Total:
25,956
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

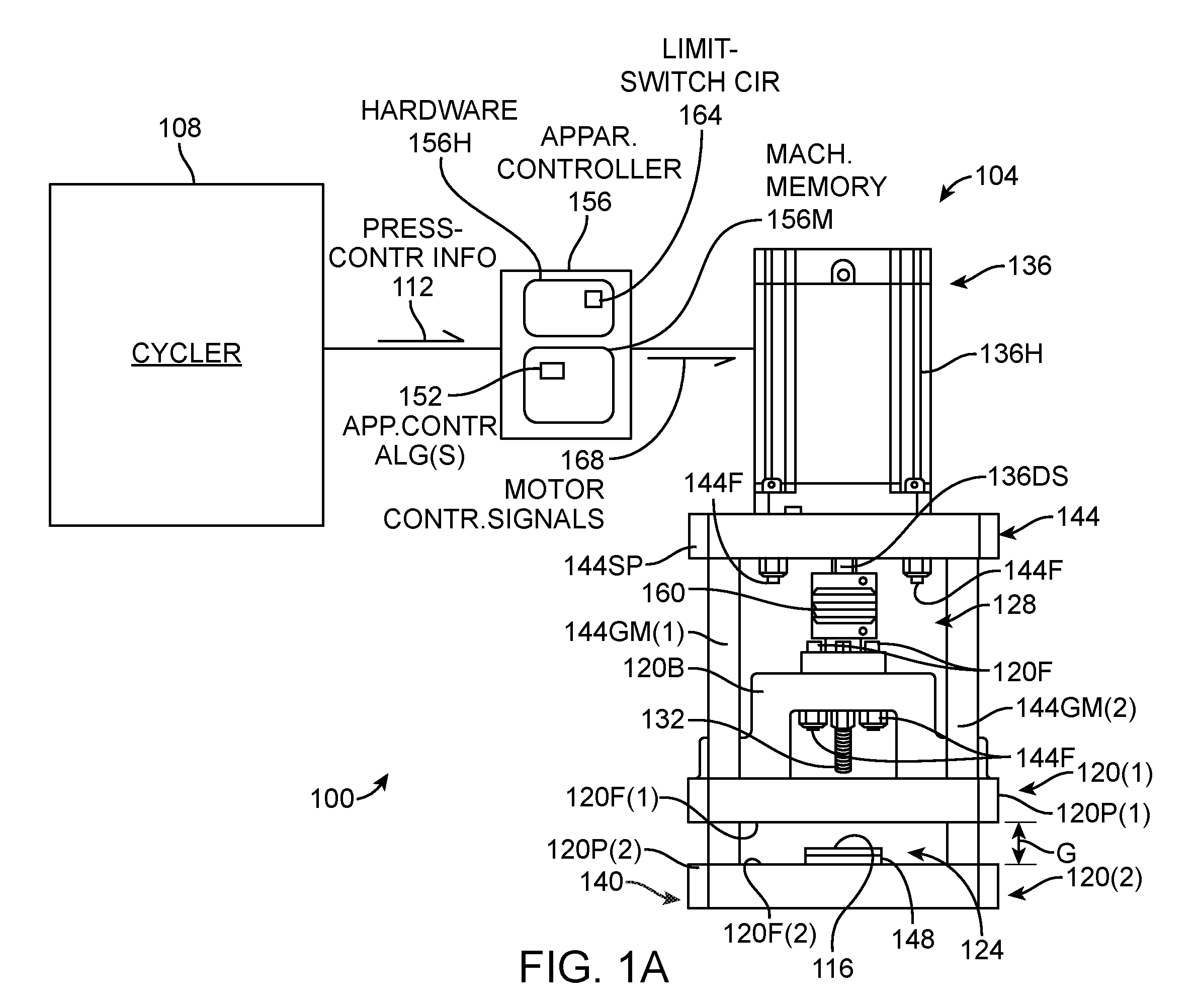

Pressure-control apparatuses for applying pressure to test specimens during testing, such as cycle testing of secondary battery cells and material-property testing of various materials. In some embodiments, a pressure-control apparatus includes one or more of a screw-drive mechanism that is driven by a stepper motor, a flexible drive coupling located between the motor and the screw-drive mechanism, and limit-switch circuitry that includes a pull-down-resistor arrangement that uses components of the pressure-control apparatus as electrical contacts. In embodiments for battery-cell testing, a pressure-control apparatus includes an apparatus controller that receives information from a cycler and that controls operations of the stepper motor based on that information, at time in conjunction with pressure signals from a pressure-sensing system located onboard the pressure- control apparatus.[French]
L'invention concerne des appareils de commande de pression pour appliquer une pression à des échantillons de test pendant un test, tels qu'un test de cycle de cellules de batterie secondaire et un test de propriété de matériau de divers matériaux. Dans certains modes de réalisation, un appareil de commande de pression comprend un ou plusieurs éléments parmi un mécanisme d'entraînement à vis qui est entraîné par un moteur pas à pas, un couplage d'entraînement flexible situé entre le moteur et le mécanisme d'entraînement à vis, et un circuit de commutation de limite qui comprend un agencement de résistance d'excursion basse qui utilise des composants de l'appareil de commande de pression en tant que contacts électriques. Dans des modes de réalisation pour un test de cellule de batterie, un appareil de commande de pression comprend un dispositif de commande d'appareil qui reçoit des informations provenant d'un cycleur et qui commande des opérations du moteur pas à pas sur la base de ces informations, à temps conjointement avec des signaux de pression provenant d'un système de détection de pression situé à bord de l'appareil de commande de pression.
