WO2024033724 - A PLANTER OR POT IRRIGATION SYSTEM AND USE THEREOF
National phase entry is expected:
Publication Number
WO/2024/033724
Publication Date
15.02.2024
International Application No.
PCT/IB2023/057094
International Filing Date
11.07.2023
Title **
[English]
A PLANTER OR POT IRRIGATION SYSTEM AND USE THEREOF
[French]
SYSTÈME D'IRRIGATION DE JARDINIÈRE OU DE POT ET SON UTILISATION
Applicants **
SPIRO, Daniel S.
Inventors
SPIRO, Daniel S.
Priority Data
22189626.9
10.08.2022
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2460 | |
| EPO | Filing, Examination, Granting | 8503 | |
| Japan | Filing, Examination, Granting | 2279 | |
| South Korea | Filing, Examination, Granting | 2323 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
20,305
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

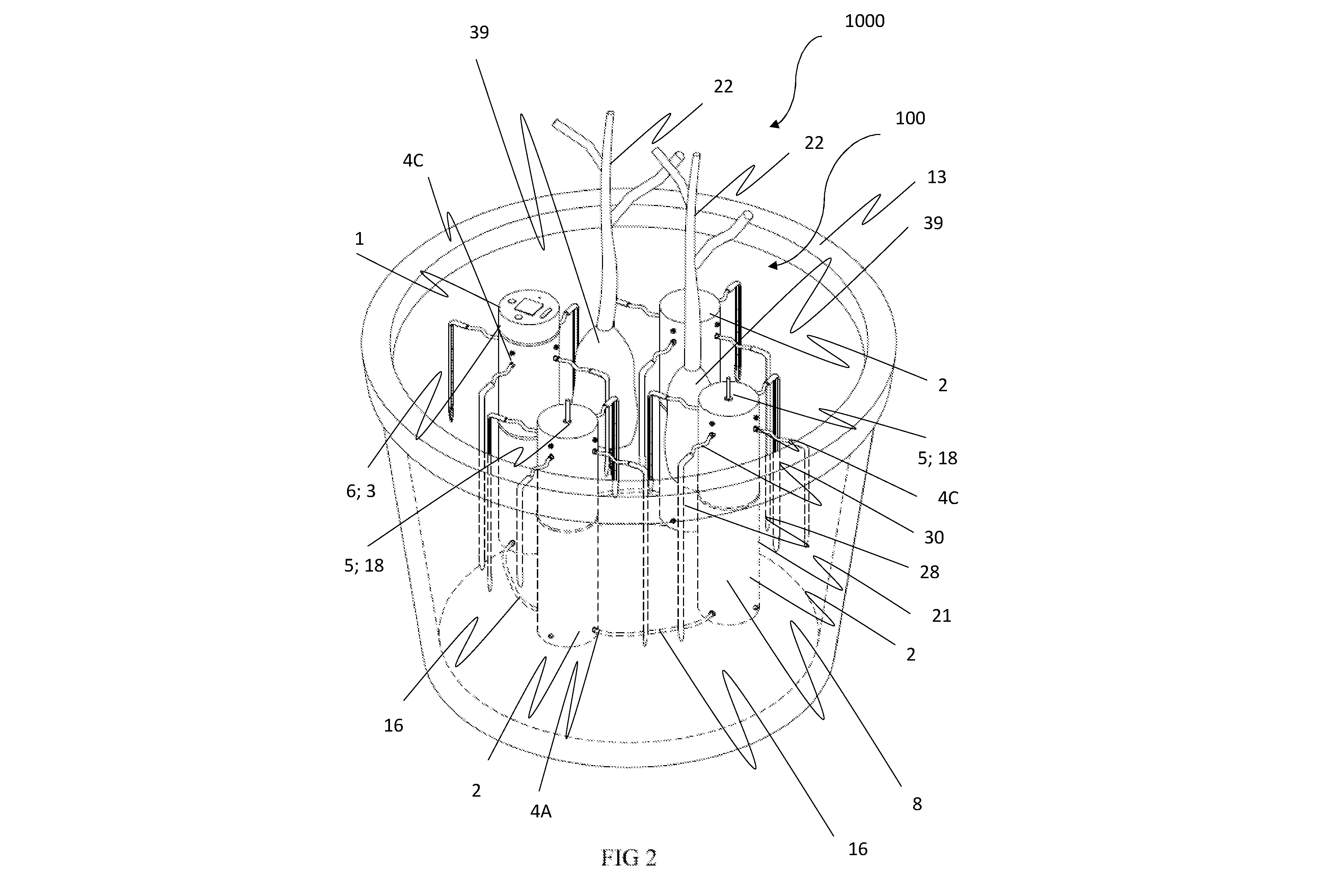

A planter or pot irrigation system is provided. The system comprises: a planter or pot (13) configured to receive a plant (15) with a root base (39) embedded in plant bedding material (14); a fluid tank arrangement (100) configured to contain irrigation fluid (8); at least one irrigation pipe (30) with a continuous wick (10); at least one irrigation stake (28) comprising a tipped end (19) configured to be embedded in the bedding material (14) in proximity to the root base (39). The at least one irrigation stake (28) is coupled to the fluid tank arrangement (100; 100'; 100") by the at least one irrigation pipe (30). The wick (10) is configured to originate from inside the fluid tank arrangement (100; 100'; 100") and to extend through the irrigation stake (28) to a fluid outlet location in proximity to the tipped end (19) of the irrigation stake. Fluid (8) inside the fluid tank arrangement (100; 100'; 100") is thereby configured to be conveyed by the wick through a fluid outlet (20) in the irrigation stake to the plant root base (39) by capillary action.[French]
Un système d'irrigation de jardinière ou de pot est prévu. Le système comprend : une jardinière ou un pot (13) conçu(e) pour recevoir une plante (15) avec une base de racine (39) incorporée dans un matériau de plantation (14) ; un agencement de réservoir de fluide (100) conçu pour contenir un fluide d'irrigation (8) ; au moins un tuyau d'irrigation (30) doté d'une mèche continue (10) ; au moins un piquet d'irrigation (28) comprenant une extrémité inclinée (19) conçue pour être incorporée dans le matériau de plantation (14) à proximité de la base de racine (39). Ledit piquet d'irrigation (28) est accouplé à l'agencement de réservoir de fluide (100 ; 100' ; 100") par ledit tuyau d'irrigation (30). La mèche (10) est conçue pour provenir de l'intérieur de l'agencement de réservoir de fluide (100 ; 100' ; 100") et pour s'étendre à travers le piquet d'irrigation (28) jusqu'à un emplacement de sortie de fluide à proximité de l'extrémité inclinée (19) du piquet d'irrigation. Le fluide (8) à l'intérieur de l'agencement de réservoir de fluide (100 ; 100' ; 100") est ainsi conçu pour être transporté par la mèche à travers une sortie de fluide (20) dans le piquet d'irrigation jusqu'à la base de racine (39) de la plante par action capillaire.
