WO2024013591 - CONFIGURABLE INTEGRATED POWER DELIVERY MODULE WITH ADAPTIVE POWER SHARING
National phase entry is expected:
Publication Number
WO/2024/013591
Publication Date
18.01.2024
International Application No.
PCT/IB2023/056393
International Filing Date
20.06.2023
Title **
[English]
CONFIGURABLE INTEGRATED POWER DELIVERY MODULE WITH ADAPTIVE POWER SHARING
[French]
MODULE DE DISTRIBUTION D'ÉNERGIE INTÉGRÉ CONFIGURABLE AVEC PARTAGE DE PUISSANCE ADAPTATIF
Applicants **
SILANNA ASIA PTE LTD
Inventors
NOTOHAMIPRODJO, Hubertus
WILHELM, Timothy
Priority Data
63/368,448
14.07.2022
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
MOIP
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2108 | |
| EPO | Filing, Examination, Granting | 12096 | |
| Japan | Filing, Examination, Granting | 1998 | |
| South Korea | Filing, Examination, Granting | 1470 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
22,412
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

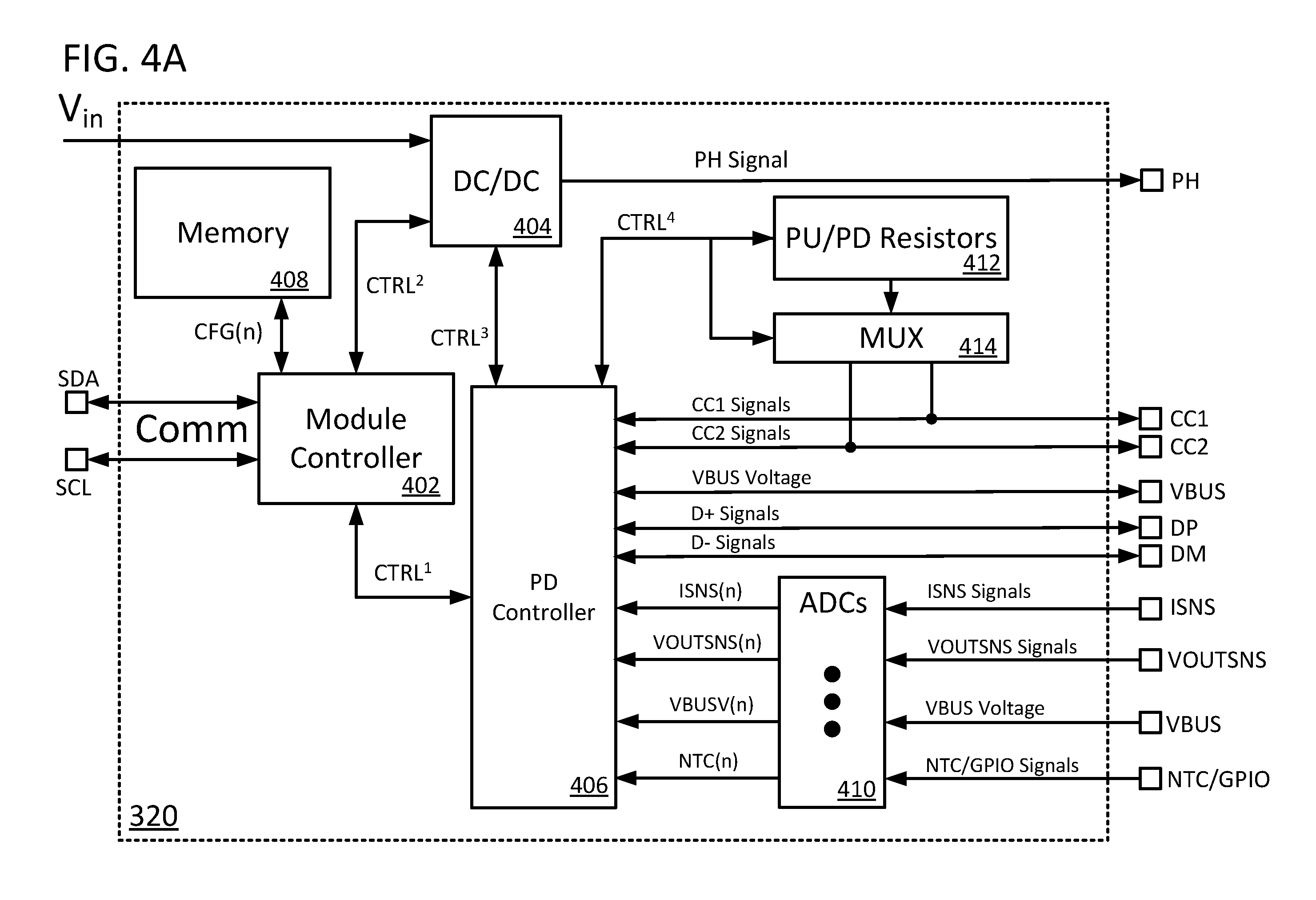

A multi-port charger includes two or more integrated power delivery modules electrically coupled to an AC-to-DC power converter. Each of the integrated power delivery modules includes a module controller in signal communication with a digital communication bus, a USB-PD controller, a switch-mode DC-to-DC power converter which is configured to provide an adjustable output voltage to a sink device via a USB voltage bus, a first analog-to-digital converter (ADC) circuit in signal communication with the USB-PD controller and the USB voltage bus to generate a digital representation of the output voltage, and a second ADC circuit in signal communication with the USB-PD controller and the USB voltage bus to provide a digital representation of an output current provided by the switch-mode DC-to-DC power converter to the sink device.[French]
Un chargeur à ports multiples comprend au moins deux modules de distribution de puissance intégrés couplés électriquement à un convertisseur de puissance CA-CC. Chacun des modules de distribution d'énergie intégrés comprend un dispositif de commande de module en communication de signal avec un bus de communication numérique, un dispositif de commande USB-PD, un convertisseur de puissance CC-CC à mode de commutation qui est conçu pour fournir une tension de sortie réglable à un dispositif source par l'intermédiaire d'un bus de tension USB, un premier circuit convertisseur analogique-numérique (CAN) en communication de signal avec le dispositif de commande USB-PD et le bus de tension USB pour générer une représentation numérique de la tension de sortie, et un second circuit CAN en communication de signal avec le dispositif de commande USB-PD et le bus de tension USB pour fournir une représentation numérique d'un courant de sortie fourni par le convertisseur de puissance CC-CC à mode de commutation au dispositif source.
