WO2024256851 - PHYSICAL-OBJECT SCANNING AND MEASURING SYSTEMS BASED ON PHOTOGRAMMETRY, APPARATUSES INCORPORATING SUCH SYSTEMS, AND RELATED METHODS
National phase entry is expected:
Publication Number
WO/2024/256851
Publication Date
19.12.2024
International Application No.
PCT/IB2023/056169
International Filing Date
14.06.2023
Title **
[English]
PHYSICAL-OBJECT SCANNING AND MEASURING SYSTEMS BASED ON PHOTOGRAMMETRY, APPARATUSES INCORPORATING SUCH SYSTEMS, AND RELATED METHODS
[French]
SYSTÈMES DE BALAYAGE ET DE MESURE D'OBJET PHYSIQUE BASÉS SUR LA PHOTOGRAMMÉTRIE, APPAREILS INCORPORANT DE TELS SYSTÈMES, ET PROCÉDÉS ASSOCIÉS
Applicants **
SES HOLDINGS PTE. LTD.
1 Robinson Road, #18-00 AIA Tower
Singapore 048542, SG
Inventors
RUFINO, Newton I.
35 Cabot Road
Woburn, Massachusetts 01801, US
MATULEVICH, Yury
35 Cabot Road
Woburn, Massachusetts 01801, US
LI, Casey K.C.
35 Cabot Road
Woburn, Massachusetts 01801, US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
MOIP
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1508 | |
| EPO | Filing, Examination | 12496 | |
| Japan | Filing | 529 | |
| South Korea | Filing | 482 | |
| USA | Filing, Examination | 5235 |
Total: 20250 USD
Abstract[English]

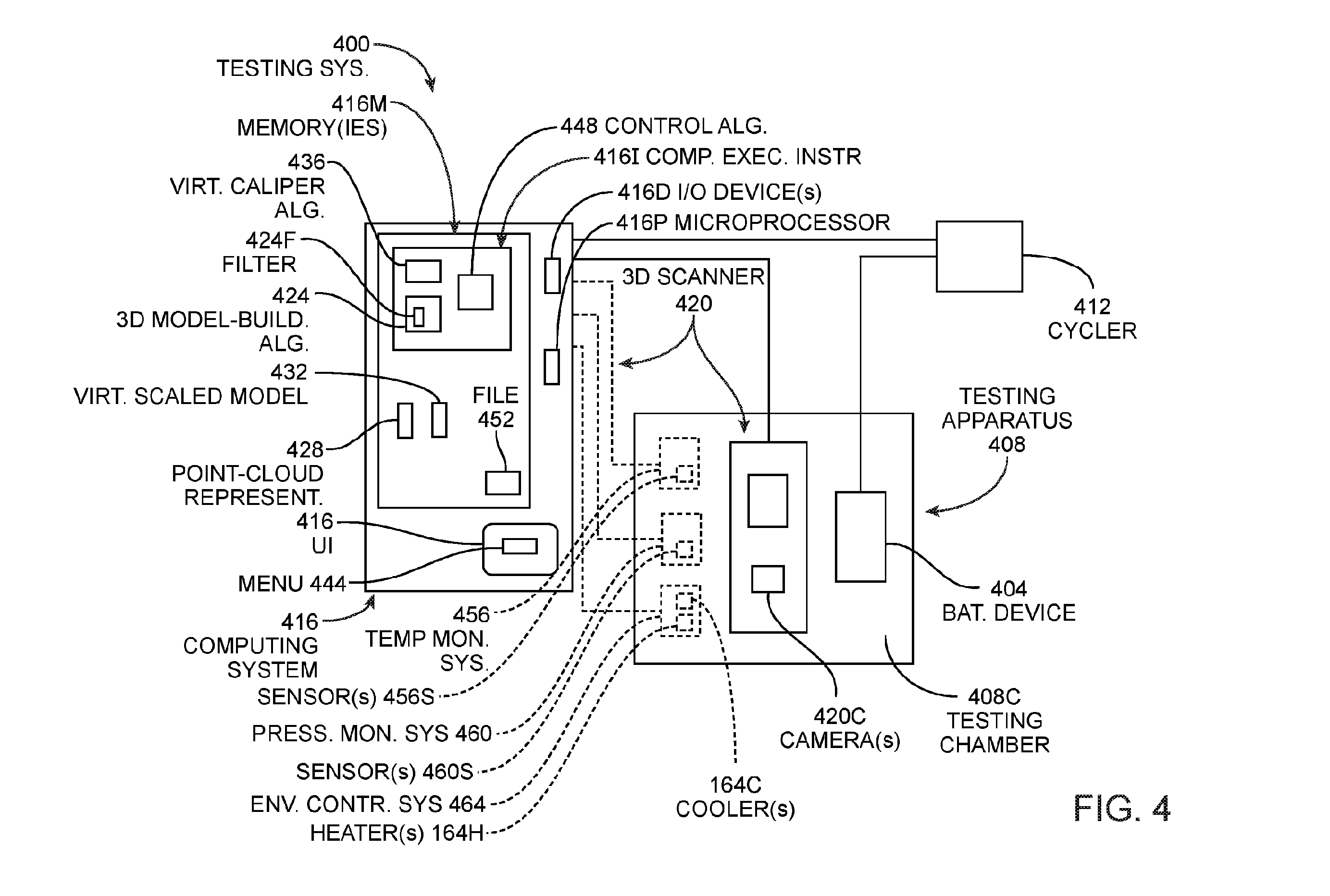

3D scanners that construct 3D virtual scaled models from images of an actual 3D object acquired from multiple perspectives at differing image-capture points throughout a virtual image-capture mesh. In some embodiments, the 3D scanners make measurements of the actual 3D object virtually by applying virtual calipers to the 3D virtual scaled model. In some embodiments, a 3D scanner of this disclosure is deployed within a testing chamber, such as a testing chamber for testing battery devices, such as battery packs, battery modules, battery cells, and the like. In such deployments, the 3D scanners can make accurate measurements of the battery devices in a safe manner. Methods of building 3D virtual scaled models, of measuring actual 3D objects virtually, and of testing battery devices, among others, are also disclosed.[French]
L'invention concerne des scanners 3D qui construisent des modèles virtuels 3D mis à l'échelle à partir d'images d'un objet 3D réel acquis à partir de multiples perspectives au niveau de différents points de capture d'image d'un bout à l'autre d'un maillage de capture d'image virtuelle. Dans certains modes de réalisation, les scanners 3D effectuent des mesures de l'objet 3D réel virtuellement en appliquant des pieds à coulisse virtuels au modèle virtuel 3D mis à l'échelle. Dans certains modes de réalisation, le scanner 3D selon la présente invention est déployé dans une chambre de test, telle qu'une chambre de test pour tester des dispositifs de batterie, tels que des blocs-batteries, des modules de batterie, des éléments de batterie et analogue. Dans de tels déploiements, les scanners 3D peuvent effectuer des mesures précises des dispositifs de batterie d'une manière sûre. Sont également divulgués des procédés de construction de modèles virtuels 3D mis à l'échelle, de mesure virtuelle d'objets 3D réels et de test de dispositifs de batterie, entre autres.
