WO2024189399 - AN APPARATUS FOR CREATING ARTIFICIAL GRAVITY AND MAGNETIC FIELD DURING BEDTIME FOR ASTRONAUTS IN SPACE, CONSUMING VERY LOW ENERGY
National phase entry is expected:
Publication Number
WO/2024/189399
Publication Date
19.09.2024
International Application No.
PCT/IB2023/052367
International Filing Date
12.03.2023
Title **
[English]
AN APPARATUS FOR CREATING ARTIFICIAL GRAVITY AND MAGNETIC FIELD DURING BEDTIME FOR ASTRONAUTS IN SPACE, CONSUMING VERY LOW ENERGY
[French]
APPAREIL DE CRÉATION DE GRAVITÉ ARTIFICIELLE ET DE CHAMP MAGNÉTIQUE PENDANT LE SOMMEIL POUR ASTRONAUTES DANS L'ESPACE, CONSOMMANT UNE TRÈS FAIBLE ÉNERGIE
Applicants **
RAHMANI NEJAD, Akbar
unit 5, No.10m 2nd Nilofar Lane, Nilofar /st., Kashani, ave.
Tehran, 1487772694, IR
Inventors
RAHMANI NEJAD, Akbar
unit 5, No.10m 2nd Nilofar Lane, Nilofar /st., Kashani, ave.
Tehran, 1487772694, IR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
IP India
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 892 | |
| EPO | Filing, Examination | 4906 | |
| Japan | Filing | 535 | |
| South Korea | Filing | 483 | |
| USA | Filing, Examination | 6235 |

Total: 13051 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

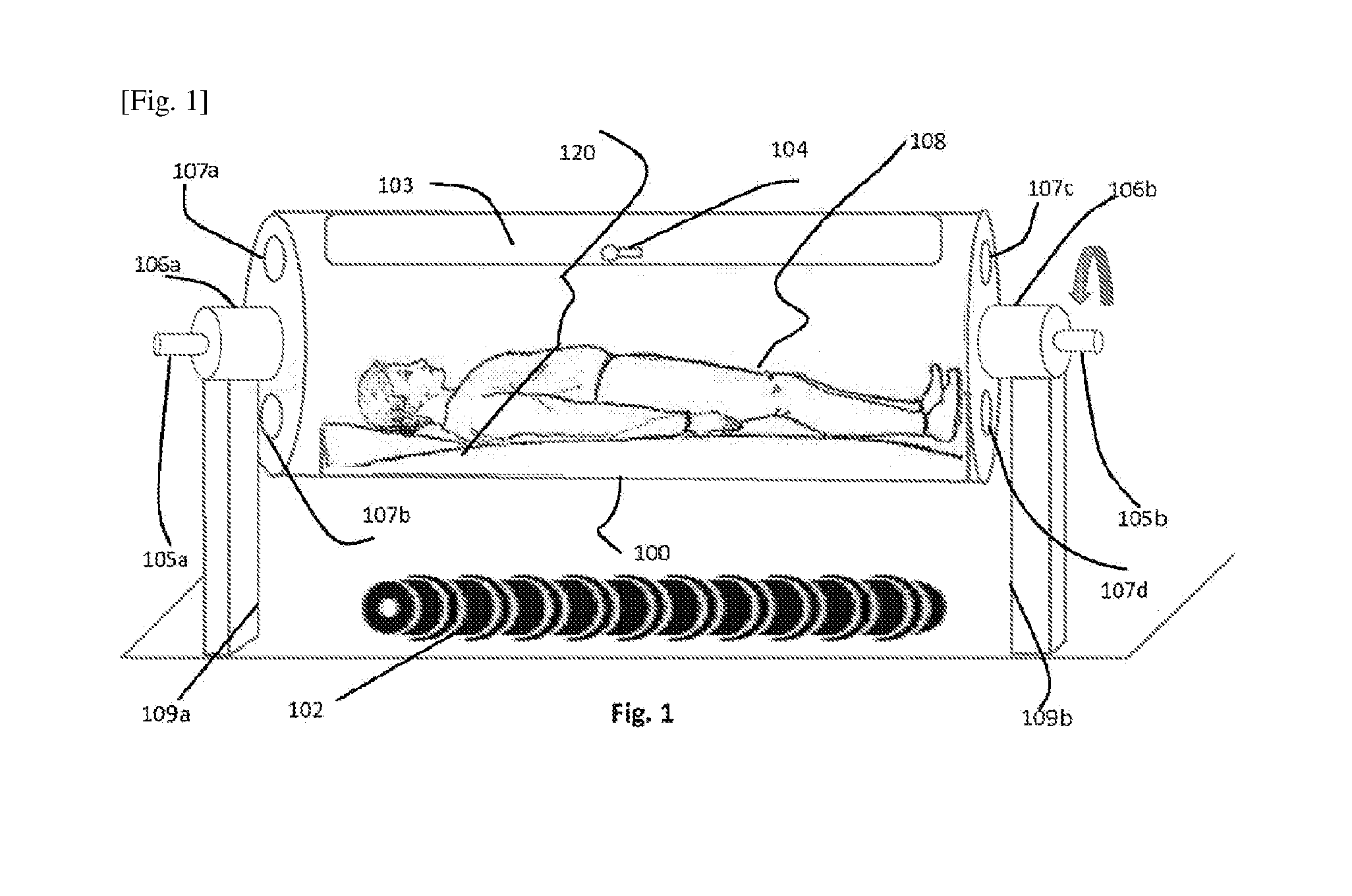

) during the bedtime (rest-time) of astronauts by spinning a cylindrical cabin 100, for generating centrifugal force and also simulating earth magnetic field (about 0.5 Gauss) in the cabin by permanent magnet 102. Due to the energy economy in space, the invented apparatus is designed such that the first embodiment consumes very low energy (Fig.1), and the second embodiment Fig.2, consumes almost zero energy by implementation of vacuum frictionless magnetic bearing 106, and a vacuum cabin 200. As it is depicted in Fig.1 and Fig. 2, the apparatus comprises a cylindrical spinning cabin 100 that houses a bed 120 for a astronaut and a permanent magnet 102 producing about 0.5 Gauss magnetic field along the cylindrical spinning cabin 100. As depicted in both figs, it also comprises a rotating shaft 105, connected to a rotating electric machine (not included in the figures) for spinning the cylindrical cabin to generation gravity due to centrifugal force, a vacuum magnetic bearing which is almost frictionless, a gear and a mechanical brake. The vacuum magnetic bearing, mechanical brake, and a gear are all housed in a coupling device 106. The rotating shaft is connected to the electric motor (the electric motor is not included in the depictions) on one side and to the coupling device on the other side. After turning on the electric motor, the centrifugal cylindrical spinning cabin is accelerated to reach enough rotating speed for generating gravitational force due to centrifugal force equal to the earth gravity, when the spinning speed reached to required speed, afterward shaft is disconnected by the gear, the electric motor is turned off, and the spinning (centrifugal) cylindrical cabin rotates for a long time due to lack of friction and any counter force (at least several hours is desirable). Another embodiment Fig. 2, depicts that the cylindrical spinning cabin is housed in another vacuum cylindrical cabin, which in turn omits air resistance that can at least sustain the spinning for several days or more.[French]
