WO2023126726 - AUTOMATIC ROBOTIC LAWN MOWING BOUNDARY DETECTION USING 3D SEMANTIC SEGMENTATION
National phase entry is expected:
Publication Number
WO/2023/126726
Publication Date
06.07.2023
International Application No.
PCT/IB2022/061951
International Filing Date
09.12.2022
Title **
[English]
AUTOMATIC ROBOTIC LAWN MOWING BOUNDARY DETECTION USING 3D SEMANTIC SEGMENTATION
[French]
DÉTECTION AUTOMATIQUE DE LIMITE DE TONTE DE GAZON ROBOTIQUE À L'AIDE D'UNE SEGMENTATION SÉMANTIQUE 3D
Applicants **
MIDEA GROUP CO., LTD.
Inventors
HUANG, Ke
Priority Data
17/565,162
29.12.2021
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2040 | |
| EPO | Filing, Examination, Granting | 14761 | |
| Japan | Filing, Examination, Granting | 2309 | |
| South Korea | Filing, Examination, Granting | 2469 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
26,319
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

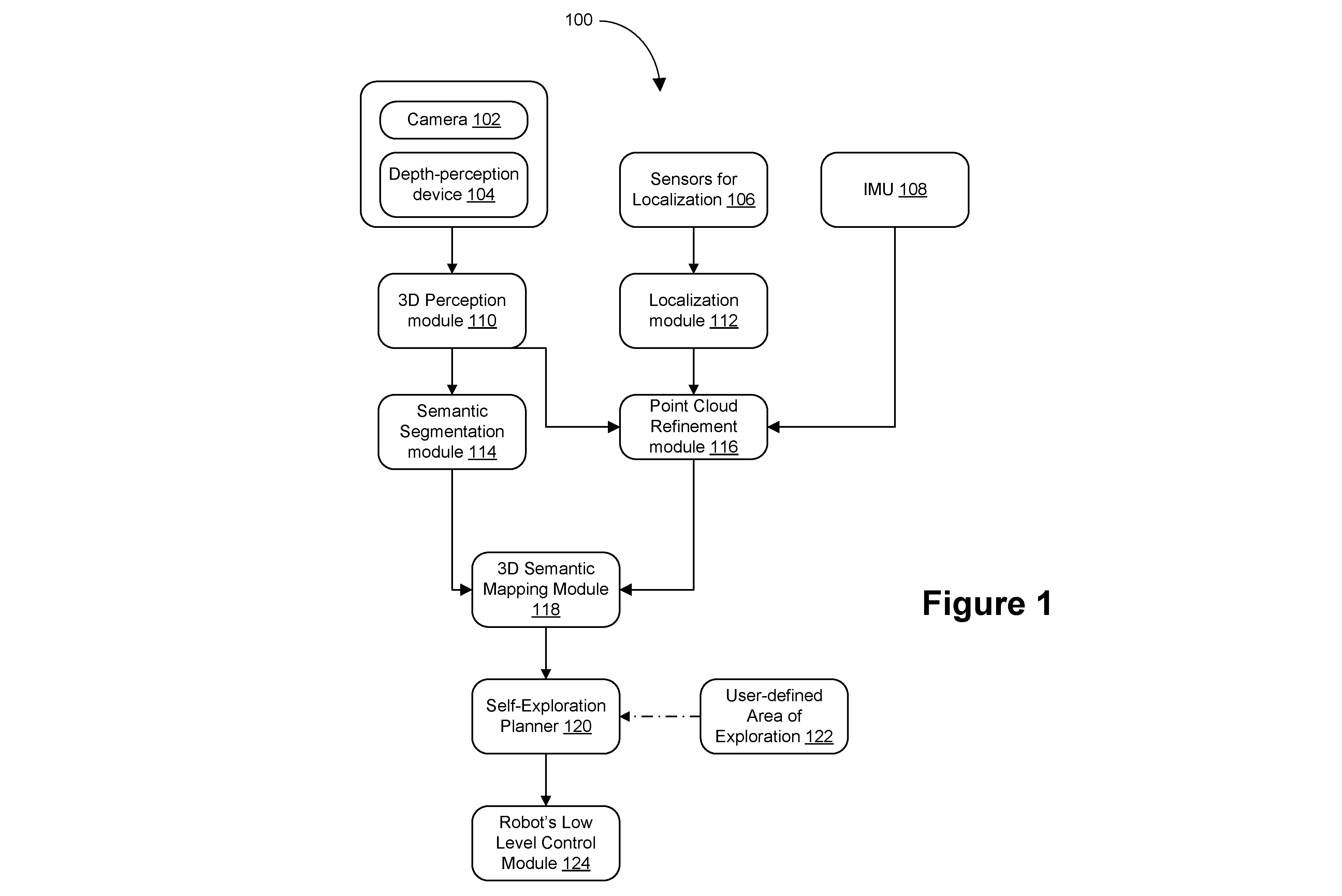

The method and system disclosed herein presents a method and system for capturing, by a depth-perception device on a mobile robot moving in an environment, depth-perception information at a first location within a portion of the environment. The method includes capturing, by a camera device on the mobile robot, an image frame at the first location within the portion of the environment, generating a three-dimensional point cloud representing the portion of the environment based on the depth-perception information and the image frame, extracting semantic information by providing the frame and the point cloud to a neural network model configured to perform semantic segmentation, associating the semantic information to the three-dimensional point cloud, projecting the three-dimensional point cloud onto a two-dimensional plane to form a first two-dimensional map; and demarcating the first two-dimensional map with a plurality of different regions based on the semantic information.[French]
Le procédé et le système divulgués aux présentes se rapportent à un procédé et un système de capture, par un dispositif de perception de profondeur sur un robot mobile se déplaçant dans un environnement, d'informations de perception de profondeur à un premier emplacement à l'intérieur d'une portion de l'environnement. Le procédé consiste à capturer, par un dispositif de caméra sur le robot mobile, une trame d'image au premier emplacement à l'intérieur de la portion de l'environnement, générer un nuage de points tridimensionnel représentant la portion de l'environnement sur la base des informations de perception de profondeur et de la trame d'image, extraire des informations sémantiques en fournissant la trame et le nuage de points à un modèle de réseau neuronal configuré pour effectuer une segmentation sémantique, associer les informations sémantiques au nuage de points tridimensionnel, projeter le nuage de points tridimensionnel sur un plan bidimensionnel pour former une première carte bidimensionnelle ; et délimiter la première carte bidimensionnelle avec une pluralité de régions différentes sur la base des informations sémantiques.
