WO2023073680 - A MEDICAL VENTILATOR WITH THE ABILITY TO AIR PURIFIER
National phase entry is expected:
Publication Number
WO/2023/073680
Publication Date
04.05.2023
International Application No.
PCT/IB2022/060538
International Filing Date
02.11.2022
Title **
[English]
A MEDICAL VENTILATOR WITH THE ABILITY TO AIR PURIFIER
[French]
VENTILATEUR MÉDICAL AYANT LA CAPACITÉ DE PURIFIER L'AIR
Applicants **
AHMADI SHALMANI, Mohammad Hassan
ALIJANI POURARBASTAN, Fatemeh
Inventors
AHMADI SHALMANI, Mohammad Hassan
ALIJANI POURARBASTAN, Fatemeh
Priority Data
140050140003006128
01.11.2021
IR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
IP India
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2160 | |
| EPO | Filing, Examination, Granting | 9391 | |
| Japan | Filing, Examination, Granting | 2215 | |
| South Korea | Filing, Examination, Granting | 2265 | |
| USA | Filing, Examination, Granting | 12540 |
Total:
28,571
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

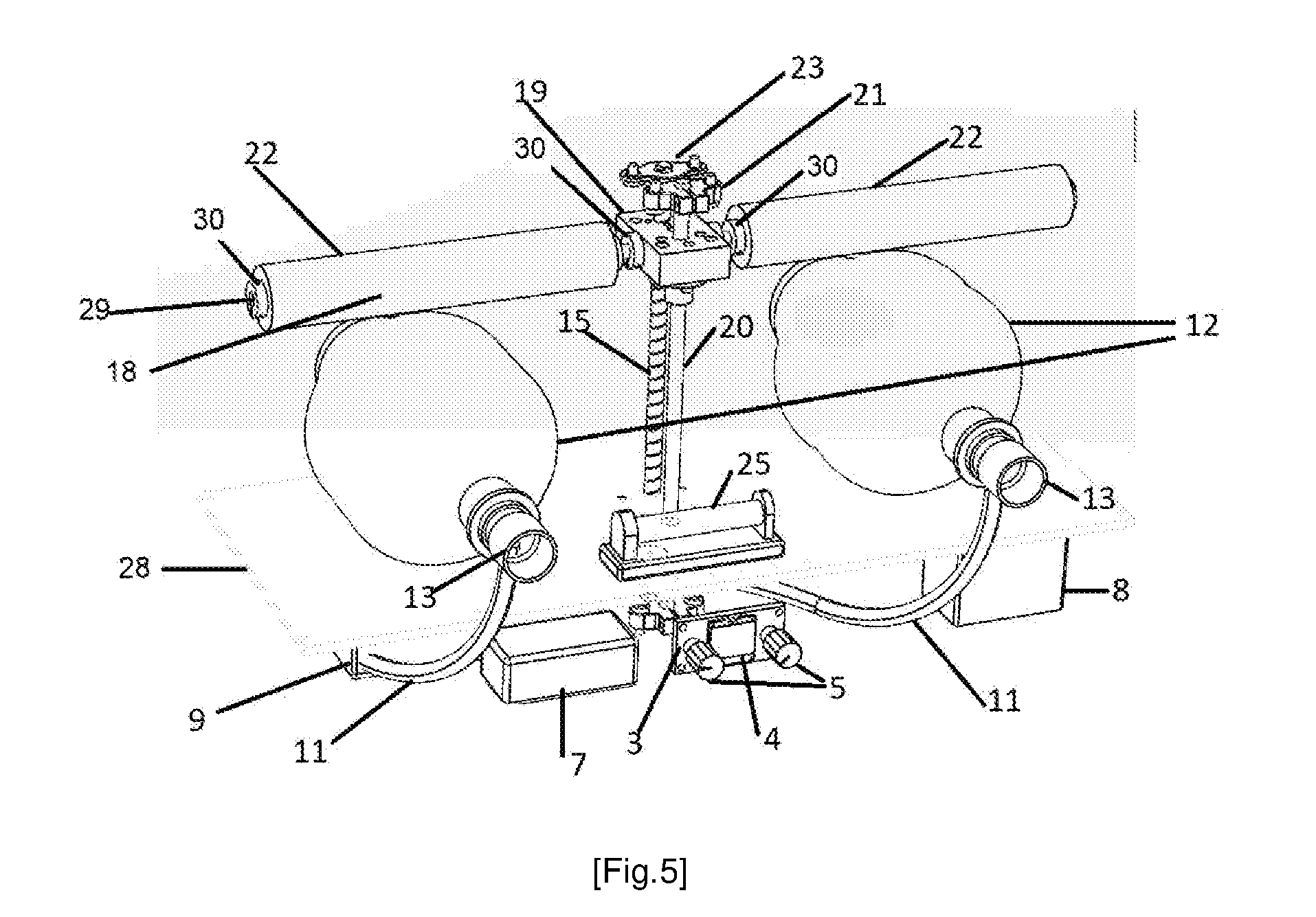

This invention is a medical ventilator with the ability to air purifier. the device medical ventilator are in wide spread use in medical and emergency treatment of patients. This invention uses a brushless motor and UVC light. Using the linear lead screw mechanism, the brushless motor causes the reciprocating movement of the arm connected to the linear lead screw mechanism. Each time the arm presses on two Ambu bags, it compresses them and the air coming out of the Ambu bags provides the breathing needs of two patients. The microcontroller and electronic part of the device smartly regulates the number of breaths per min and the pressure amount and volume of the air coming out of the Ambu bags. The UVC light of the device cleans the air inside the Ambu bags from bacteria and viruses to prevent the aggravation of internal infection in patients with lung damage.[French]
La présente invention concerne un ventilateur médical ayant la capacité de purifier l'air. Le ventilateur médical de dispositif est largement utilisé dans le traitement médical et d'urgence de patients. La présente invention utilise un moteur sans balai et une lumière UVC. A l'aide du mécanisme de vis-mère linéaire, le moteur sans balai entraîne le mouvement de va-et-vient du bras relié au mécanisme de vis-mère linéaire. Chaque fois que le bras appuie sur deux ballons Ambu, il les comprime et l'air sortant des ballons Ambu fournit les besoins respiratoires de deux patients. Le microcontrôleur et la partie électronique du dispositif régulent de manière intelligente le nombre de respirations par minute et la quantité et le volume de pression de l'air sortant des ballons Ambu. La lumière UVC du dispositif nettoie l'air à l'intérieur des ballons Ambu des bactéries et des virus pour empêcher l'aggravation d'une infection interne chez des patients atteints de lésions pulmonaires.
