WO2023042159 - FABRIC-BASED RFID TAGS AND METHODS OF MANUFACTURE
National phase entry:
Publication Number
WO/2023/042159
Publication Date
23.03.2023
International Application No.
PCT/IB2022/058791
International Filing Date
16.09.2022
Title **
[English]
FABRIC-BASED RFID TAGS AND METHODS OF MANUFACTURE
[French]
ÉTIQUETTES RFID À BASE DE TISSU ET PROCÉDÉS DE FABRICATION
Applicants **
SML BRAND IDENTIFICATION SOLUTIONS LIMITED
6th Floor, C-BONS International Center,
108 Wai Yip Street
Kowloon, CN
Inventors
RAMZAN, Mohammed
23 Milton Terrace
Halifax Yorkshire HX1 5LN, GB
SMITH, Daniel
6 Swan Close
Melton Mowbray Leicestershire LE13 0QD, GB
Priority Data
63/261,267
16.09.2021
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1529 | |
| EPO | Filing, Examination | 9567 | |
| Japan | Filing | 595 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 7710 |
Total: 19976 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

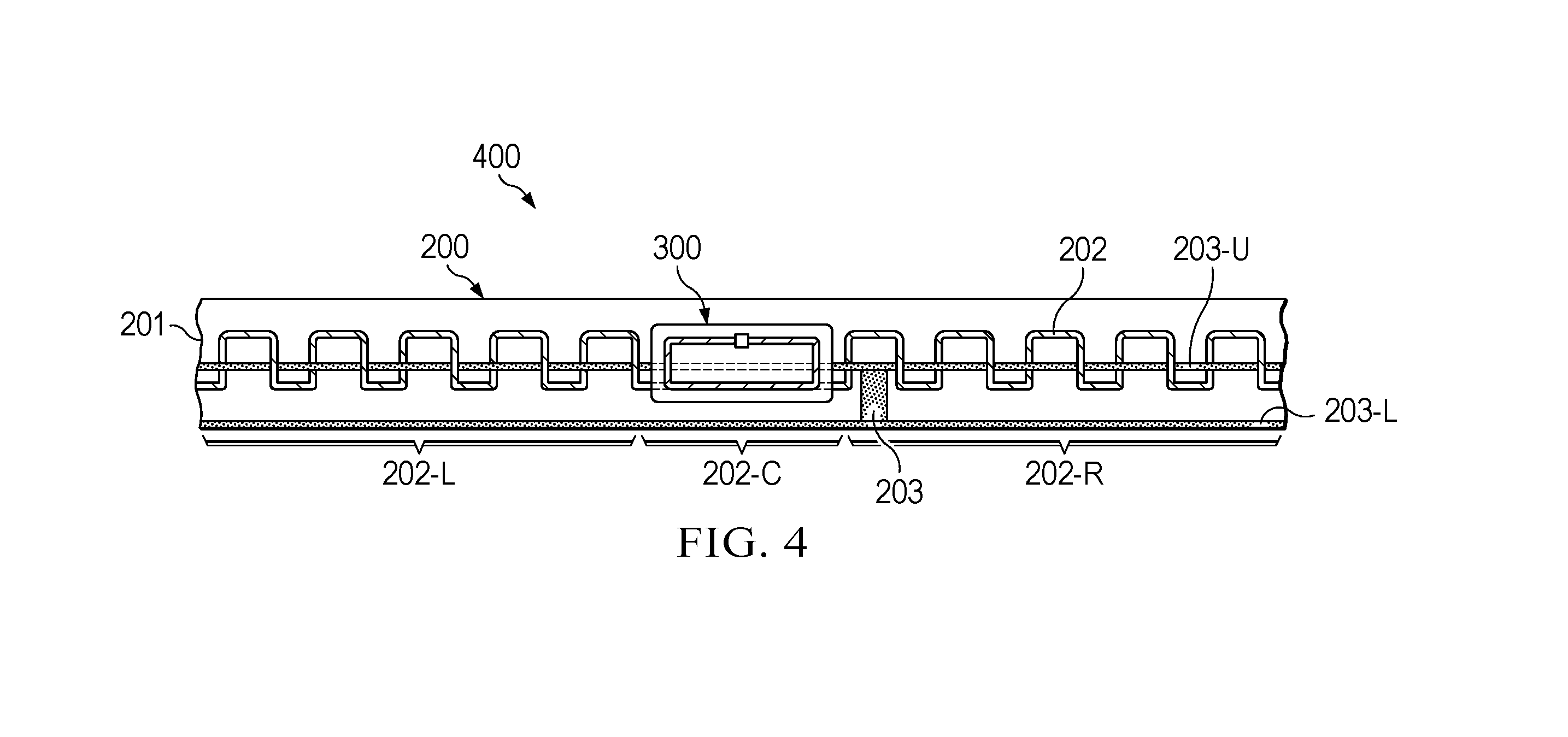

Disclosed are fabric-based radio frequency identification (RFID) tags and methods of manufacture. The method is characterized by forming a knitted fabric from at least one primary non-conductive fiber and a secondary conductive fiber, wherein the secondary conductive fiber is distributed within the knitted fabric to form a plurality of dipole antennas; integrating an RFID inlay with each of the plurality of dipole antennas to form pairs of inlays and antennas; and, cutting the knitted fabric to separate each of the pairs of inlays and antennas into individual RFID tags. The RFID inlay comprises an RFID integrated circuit (IC) and a loop antenna on a substrate; the RFID inlay is positioned on the fabric-based antenna such that the loop antenna is inductively coupled to a dipole antenna.[French]
L'invention concerne des étiquettes d'identification par radiofréquence (RFID) à base de tissu et des procédés de fabrication. Le procédé est caractérisé par la formation d'un tissu tricoté à partir d'au moins une fibre non conductrice primaire et d'une fibre conductrice secondaire, la fibre conductrice secondaire étant distribuée à l'intérieur du tissu tricoté pour former une pluralité d'antennes dipôles ; l'intégration d'une incrustation RFID avec chacune de la pluralité d'antennes dipôles pour former des paires d'incrustations et d'antennes ; et la découpe du tissu tricoté pour séparer chacune des paires d'incrustations et d'antennes en étiquettes RFID individuelles. L'incrustation RFID comprend un circuit intégré RFID (IC) et une antenne cadre sur un substrat ; l'incrustation RFID est disposée sur l'antenne à base de tissu de telle sorte que l'antenne cadre est couplée par induction à une antenne dipôle.
