WO2023180789 - A SYSTEM AND A METHOD FOR COATING ELASTOMERIC ARTICLES
National phase entry is expected:
Publication Number
WO/2023/180789
Publication Date
28.09.2023
International Application No.
PCT/IB2022/052684
International Filing Date
24.03.2022
Title **
[English]
A SYSTEM AND A METHOD FOR COATING ELASTOMERIC ARTICLES
[French]
SYSTÈME ET PROCÉDÉ DE REVÊTEMENT D'ARTICLES ÉLASTOMÈRES
Applicants **
PT. MEDISAFE TECHNOLOGIES
JL. Batang Kuis GG, Tambak Rejo / PSR I,
Medan, 20028, ID
Inventors
MATHEW, Monichan Puthuvelil
JL. Batang Kuis GG, Tambak Rejo / PSR I,
Medan, 20028, ID
SIMBOLON, Lenny
JL. Batang Kuis GG, Tambak Rejo / PSR I,
Medan, 20028, ID
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
MOIP
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1156 | |
| EPO | Filing, Examination | 8449 | |
| Japan | Filing | 589 | |
| South Korea | Filing | 482 | |
| USA | Filing, Examination | 2710 |
Total: 13386 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

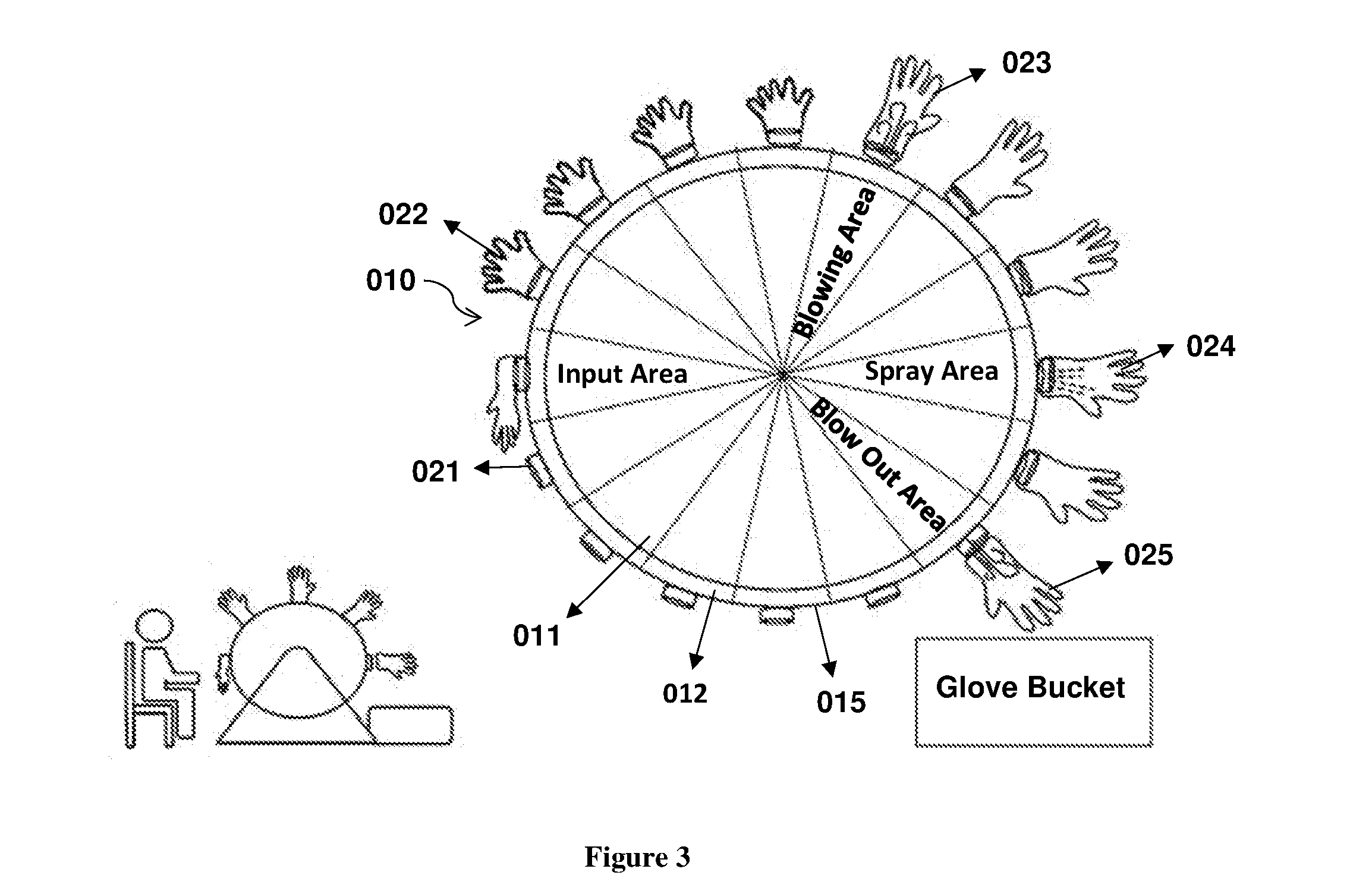

The present invention disclosed a system (010) for coating elastomeric articles. The system (010) comprising a rotating drum (011) having a fixed mandrel (015) with multiple stations (012), characterized by multiple holders (021) integrated with at least a sensor mounted on the multiple stations (012) for holding the elastomeric articles, a locking mechanism (022) for locking the elastomeric articles to the holders (021), an air blowing mechanism (023) for inflating and deflating the elastomeric articles, a coating mechanism (024) for coating the elastomeric articles, and a control panel (014) for controlling the system (010) upon receiving signals from the sensor, wherein (022) the air blowing mechanism (023) and the coating mechanism (024) are incorporated to the rotary drum (011) and operate collectively, whereby operation of the multiple holders (021) at the multiple stations (012) change as the rotary drum (011) spins to activate the locking mechanism (022), the air blowing mechanism (023) and the coating mechanism (024) by phase to complete the coating process. A method for coating the elastomeric articles is also disclosed.[French]
La présente invention divulgue un système (010) de revêtement d'articles élastomères. Système (010) comprenant un tambour rotatif (011) ayant un mandrin fixe (015) avec de multiples stations (012), caractérisé par de multiples supports (021) intégrés à au moins un capteur monté sur les multiples stations (012) pour soutenir des articles élastomères, un mécanisme de verrouillage (022) pour verrouiller les articles élastomères sur les supports (021), un mécanisme de soufflage d'air (023) pour gonfler et dégonfler les articles élastomères, un mécanisme de revêtement (024) pour revêtir les articles élastomères, et un panneau de commande (014) pour commander le système (010) lors de la réception de signaux provenant du capteur, (022) le mécanisme de soufflage d'air (023) et le mécanisme de revêtement (024) étant incorporés au tambour rotatif (011) et fonctionnant collectivement, le fonctionnement des multiples supports (021) au niveau des multiples stations (012) changeant lorsque le tambour rotatif (011) tourne pour activer le mécanisme de verrouillage (022), le mécanisme de soufflage d'air (023) et le mécanisme de revêtement (024) par phase pour achever le processus de revêtement. Un procédé de revêtement des articles élastomères est également divulgué.
