WO2022157588 - PORTABLE BREATHING AIR FILTERING DEVICE AND METHOD
National phase entry:
Publication Number
WO/2022/157588
Publication Date
28.07.2022
International Application No.
PCT/IB2022/050091
International Filing Date
06.01.2022
Title **
[English]
PORTABLE BREATHING AIR FILTERING DEVICE AND METHOD
[French]
PROCÉDÉ ET DISPOSITIF PORTABLE DE FILTRATION D'AIR RESPIRABLE
Applicants **
KING ABDULLAH UNIVERSITY OF SCIENCE AND TECHNOLOGY
4700 King Abdullah University of Science and Technology
Thuwal, 23955-6900, SA
Inventors
EMWAS, Abdul-Hamid Mohammed
4700 King Abdullah University of Science and Technology
Thuwal, 23955-6900, SA
SHEKHAH, Osama
4700 King Abdullah University of Science and Technology
Thuwal, 23955-6900, SA
HAGAR, Mohamed Essam Fayez Awad
Chemistry Department, Faculty of Science
Alexandria University
Alexandria, EG
EDDAOUDI, Mohamed
4700 King Abdullah University of Science and Technology
Thuwal, 23955-6900, SA
PAPAGIANNIS, Nikolaos
4700 King Abdullah University of Science and Technology
Thuwal, 23955-6900, SA
Priority Data
63/139,585
20.01.2021
US
63/290,144
16.12.2021
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1397 | |
| EPO | Filing, Examination | 6580 | |
| Japan | Filing | 589 | |
| South Korea | Filing | 607 | |
| USA | Filing, Examination | 2710 |
Total: 11883 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

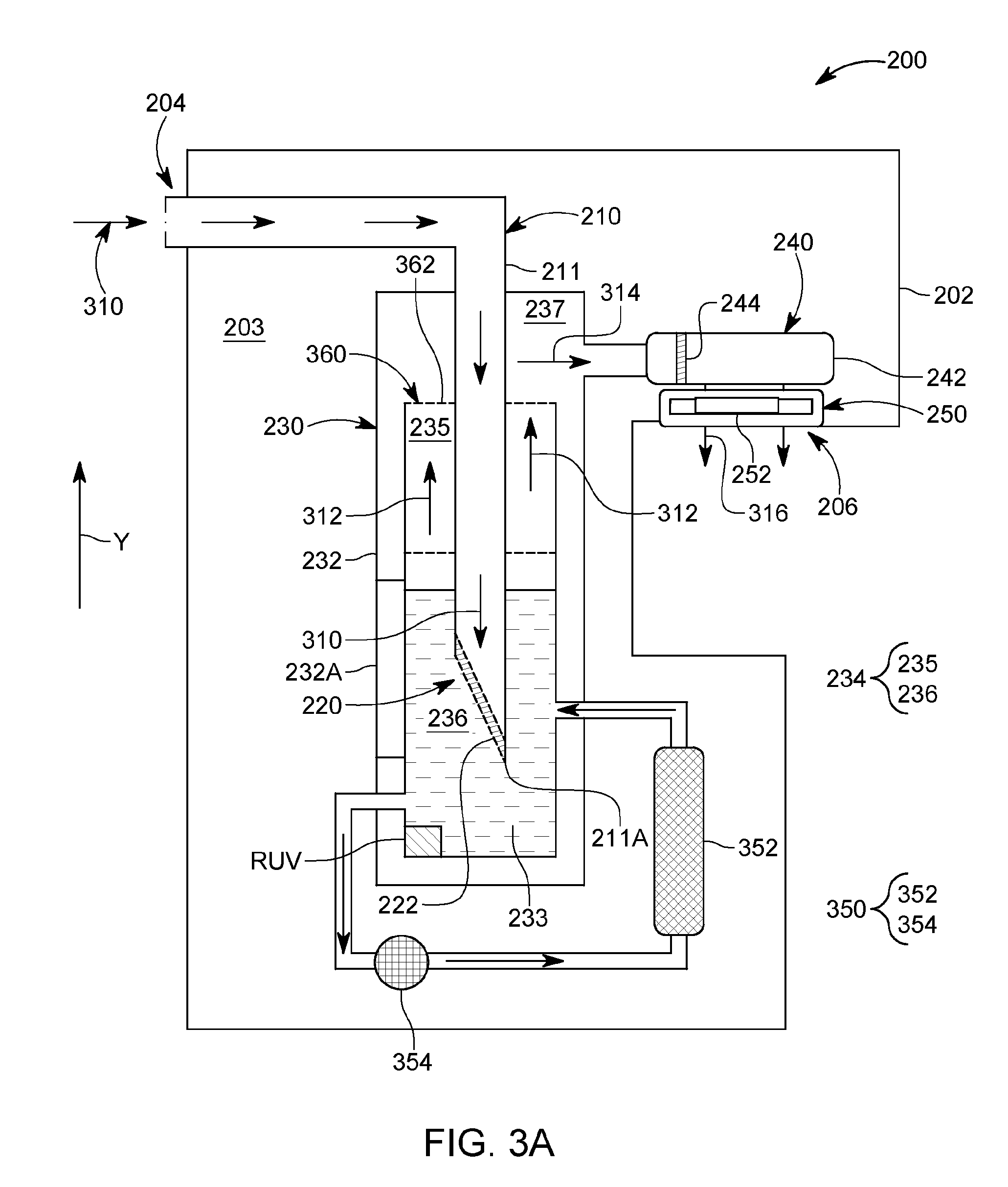

An air breathing filtering system (200) includes a housing (202) having an air input (204) and an air output (206), a first filtering stage (220) that filters out particles from a first air stream (310) to generate a second air stream (312), and a second filtering stage (230) that filters out germs from the second air stream (312) to generate a third air stream (314), wherein the second filtering stage (230) uses a different filtering process than the first filtering stage (220). The first air stream (310) is received at the air input (204) and the third air stream (314) is discharged outside the housing (202) at the air output (206). The second filtering stage (230) uses a liquid (233) to disable the germs from the second air stream (312).[French]
L'invention concerne un système de filtration d'air respirable (200) qui comprend un boîtier (202) comportant une entrée d'air (204) et une sortie d'air (206), un premier étage de filtration (220) qui élimine par filtration des particules contenues dans un premier flux d'air (310) pour générer un deuxième flux d'air (312), et un second étage de filtration (230) qui élimine par filtration les germes contenus dans le deuxième flux d'air (312) pour générer un troisième flux d'air (314), le second étage de filtration (230) faisant intervenir un processus de filtration différent de celui du premier étage de filtration (220). Le premier flux d'air (310) est reçu au niveau de l'entrée d'air (204) et le troisième flux d'air (314) est évacué à l'extérieur du boîtier (202) au niveau de la sortie d'air (206). Le second étage de filtration (230) utilise un liquide (233) pour désactiver les germes contenus dans le deuxième flux d'air (312).
