WO2024157036 - ICE FALL PROTECTION SYSTEM OF AT LEAST ONE MOVING OBJECTS MONITORING DEVICE AND/OR AT LEAST ONE MOVING OBJECTS COLLISION PREVENTION DEVICE INSTALLED ON THE TOWER OF A WIND TURBINE
National phase entry is expected:
Publication Number
WO/2024/157036
Publication Date
02.08.2024
International Application No.
PCT/GR2024/000005
International Filing Date
26.01.2024
Title **
[English]
ICE FALL PROTECTION SYSTEM OF AT LEAST ONE MOVING OBJECTS MONITORING DEVICE AND/OR AT LEAST ONE MOVING OBJECTS COLLISION PREVENTION DEVICE INSTALLED ON THE TOWER OF A WIND TURBINE
[French]
SYSTÈME DE PROTECTION CONTRE LES CHUTES DE GLACE D'AU MOINS UN DISPOSITIF DE SURVEILLANCE D'OBJETS MOBILES ET/OU D'AU MOINS UN DISPOSITIF DE PRÉVENTION DE COLLISION D'OBJETS MOBILES INSTALLÉS SUR LA TOUR D'UNE ÉOLIENNE
Applicants **
ORFANOS, Vasileios
18 Kanari str.
Chalandri
15233 Athens (Attiki), GR
Inventors
ORFANOS, Vasileios
18 Kanari str.
Chalandri
15233 Athens (Attiki), GR
Priority Data
20230100057
26.01.2023
GR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 988 | |
| EPO | Filing, Examination | 3650 | |
| Japan | Filing | 614 | |
| South Korea | Filing | 576 | |
| USA | Filing, Examination | 2710 |
Total: 8538 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

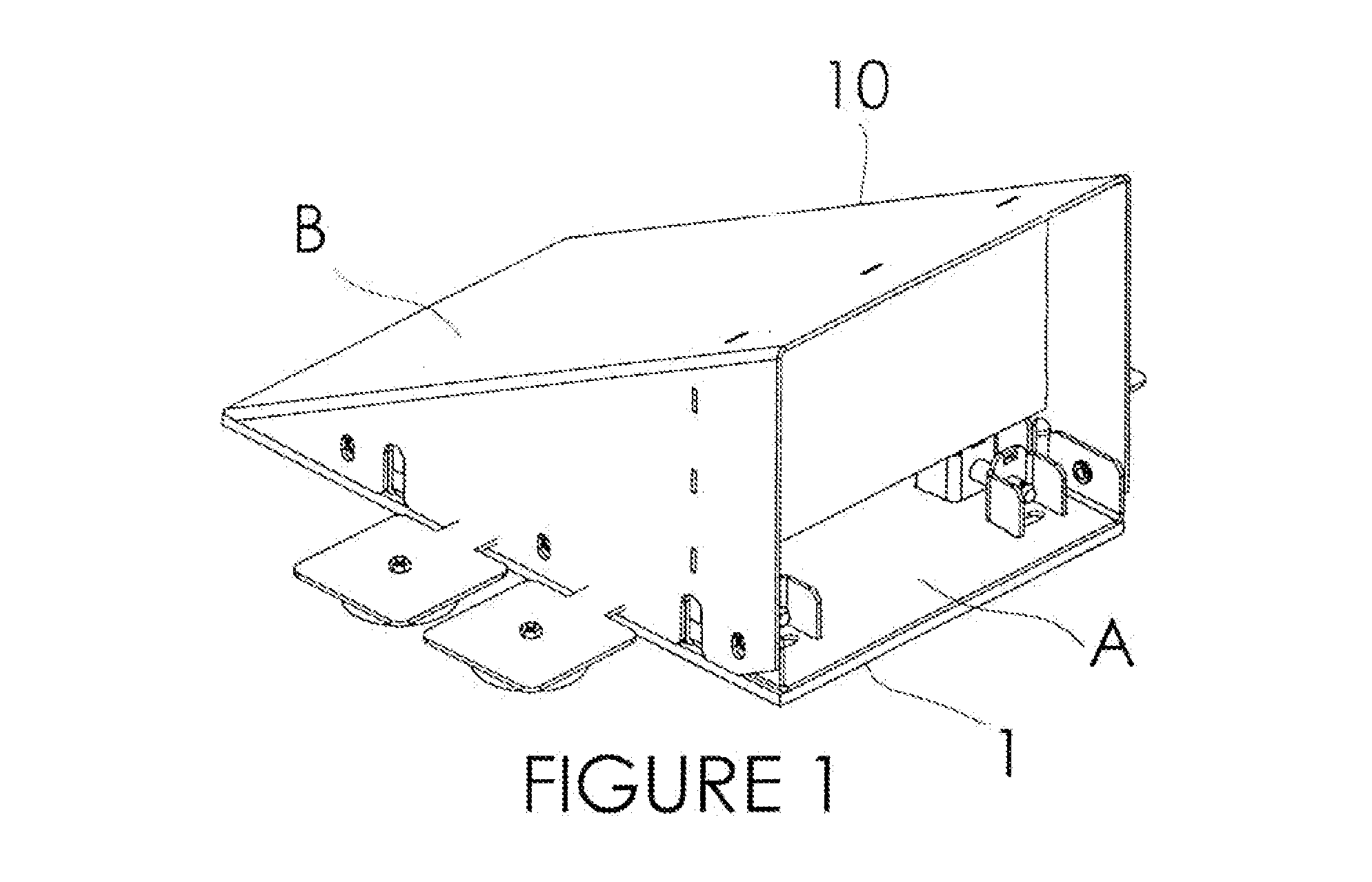

An ice fall protection system for at least one moving objects monitoring device and/or at least one moving objects collision prevention device installed on the tower of a wind turbine, wherein said system comprises: a mounting base (1) adapted to be fastened to the tower and comprising a flat surface (A) in a quadrilateral shape and at least one pair of opposite walls (2, 2'), at least one cover (10) comprising an ice repulsion surface (B) adapted to be installed on the tower to cover said devices and protect them from ice fall, wherein the mounting base (1) and the cover (10) are adapted to be removably connected to each other such that a removable installation of the cover (10) on the tower is achieved, with the repulsion surface (B) to present an inclination with respect to the surface of the tower, thereby repulsing the ice striking onto it.[French]
L'invention concerne un système de protection contre les chutes de glace pour au moins un dispositif de surveillance d'objets mobiles et/ou au moins un dispositif de prévention de collision d'objets mobiles installés sur la tour d'une éolienne. Ledit système comprend : une base de montage (1) conçue pour être fixée à la tour et comprenant une surface plate (A) en forme de quadrilatère et au moins une paire de parois opposées (2, 2') ; et au moins un couvercle (10) comprenant une surface de répulsion de glace (B) conçue pour être installée sur la tour pour recouvrir lesdits dispositifs et les protéger de la chute de glace. La base de montage (1) et le couvercle (10) sont conçus pour être reliés de manière amovible l'un à l'autre de telle sorte qu'une installation amovible du couvercle (10) sur la tour est obtenue, et la surface de répulsion (B) est conçue pour présenter une inclinaison par rapport à la surface de la tour, ce qui permet de repousser ainsi la glace frappant sur celle-ci.
