WO2023152528 - PNEUMOCEPHALUS PREVENTION DEVICE
National phase entry is expected:
Publication Number
WO/2023/152528
Publication Date
17.08.2023
International Application No.
PCT/GR2023/000002
International Filing Date
31.01.2023
Title **
[English]
PNEUMOCEPHALUS PREVENTION DEVICE
[French]
DISPOSITIF DE PRÉVENTION CONTRE LA PNEUMOCÉPHALIE
Applicants **
TSOGKAS, Anastasios
25th Martiou 36
56224 Thessaloniki, GR
Inventors
TSOGKAS, Anastasios
25th Martiou 36
56224 Thessaloniki, GR
Priority Data
20220100132
11.02.2022
GR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 959 | |
| EPO | Filing, Examination | 3573 | |
| Japan | Filing | 594 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2710 |
Total: 8411 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

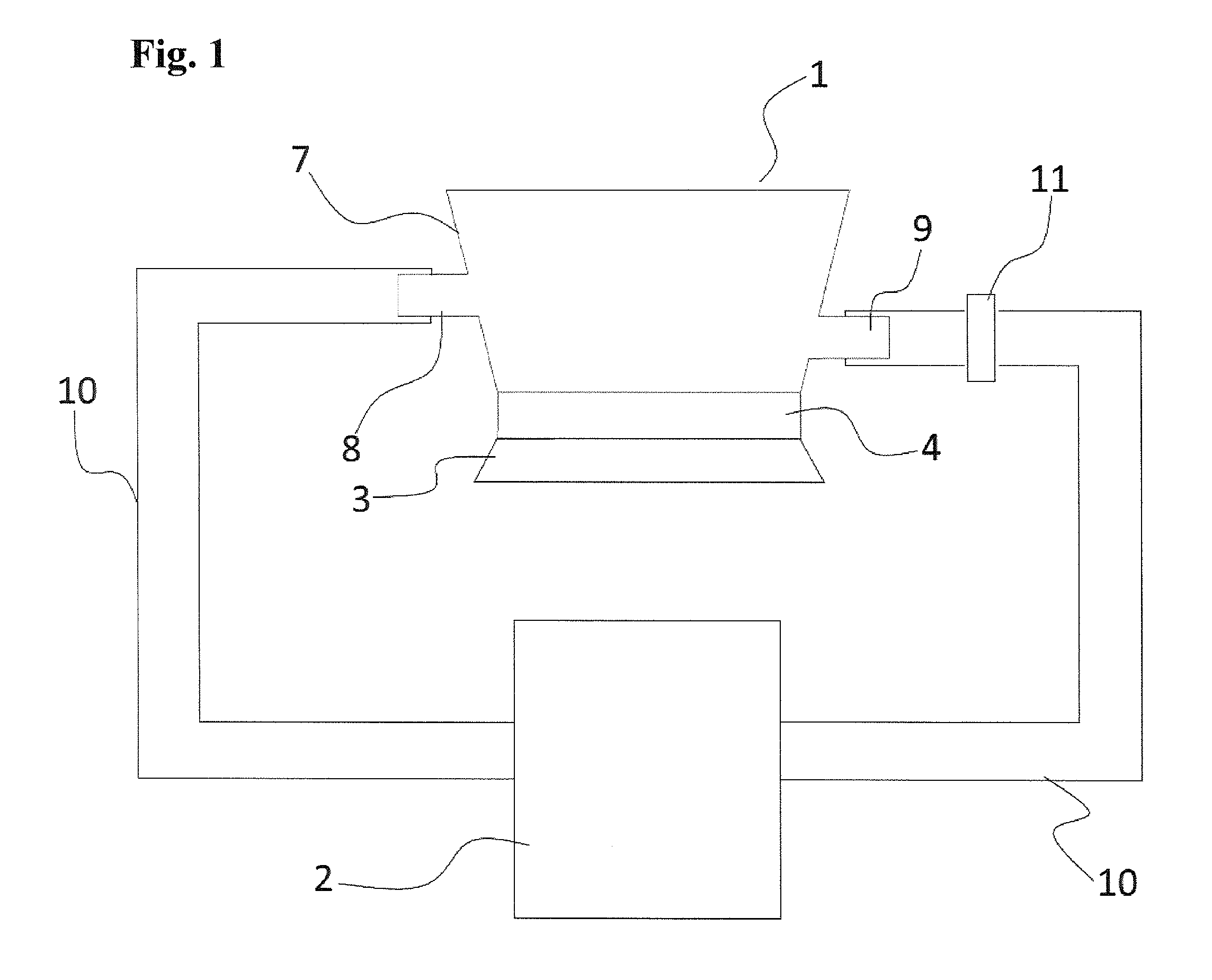

The invention relates to a pneumocephalus prevention device with a view to allowing a continuous circulation of saline solution during a cranial puncture and avoiding contact of the brain with atmospheric air. The device consists of a solution concentration unit (1), a liquid circulation pump (2) and tubes (10) to create a closed circuit in which the solution circulates. The solution concentration part (1), is screwed with screws to the skull and has two openings, one for shunting (8) and one for drainage (9), where the first is at higher position than the second one, in order to achieve the unhindered circulation of the solution.[French]
L'invention concerne un dispositif de prévention contre la pneumocéphalie qui permet une circulation continue d'une solution saline lors d'une ponction crânienne et évite le contact du cerveau avec l'air atmosphérique. Le dispositif est constitué d'une unité de concentration de solution (1), d'une pompe de circulation de liquide (2) et de tubes (10) pour créer un circuit fermé dans lequel circule la solution. La partie de concentration de solution (1) est vissée avec des vis sur le crâne et comporte deux ouvertures, l'une pour la dérivation (8) et l'autre pour le drainage (9), la première étant située plus haut que la seconde, afin d'assurer la libre circulation de la solution.
