WO2024056994 - MEMBRANE ANCHORING DEVICE
National phase entry is expected:
Publication Number
WO/2024/056994
Publication Date
21.03.2024
International Application No.
PCT/GB2023/052311
International Filing Date
07.09.2023
Title **
[English]
MEMBRANE ANCHORING DEVICE
[French]
DISPOSITIF D'ANCRAGE À MEMBRANE
Applicants **
VALRO MANUFACTURING LIMITED
Inventors
LINK, Matthew
Priority Data
2213303.7
12.09.2022
GB
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1996 | |
| EPO | Filing, Examination, Granting | 8113 | |
| Japan | Filing, Examination, Granting | 2122 | |
| South Korea | Filing, Examination, Granting | 2008 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,979
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

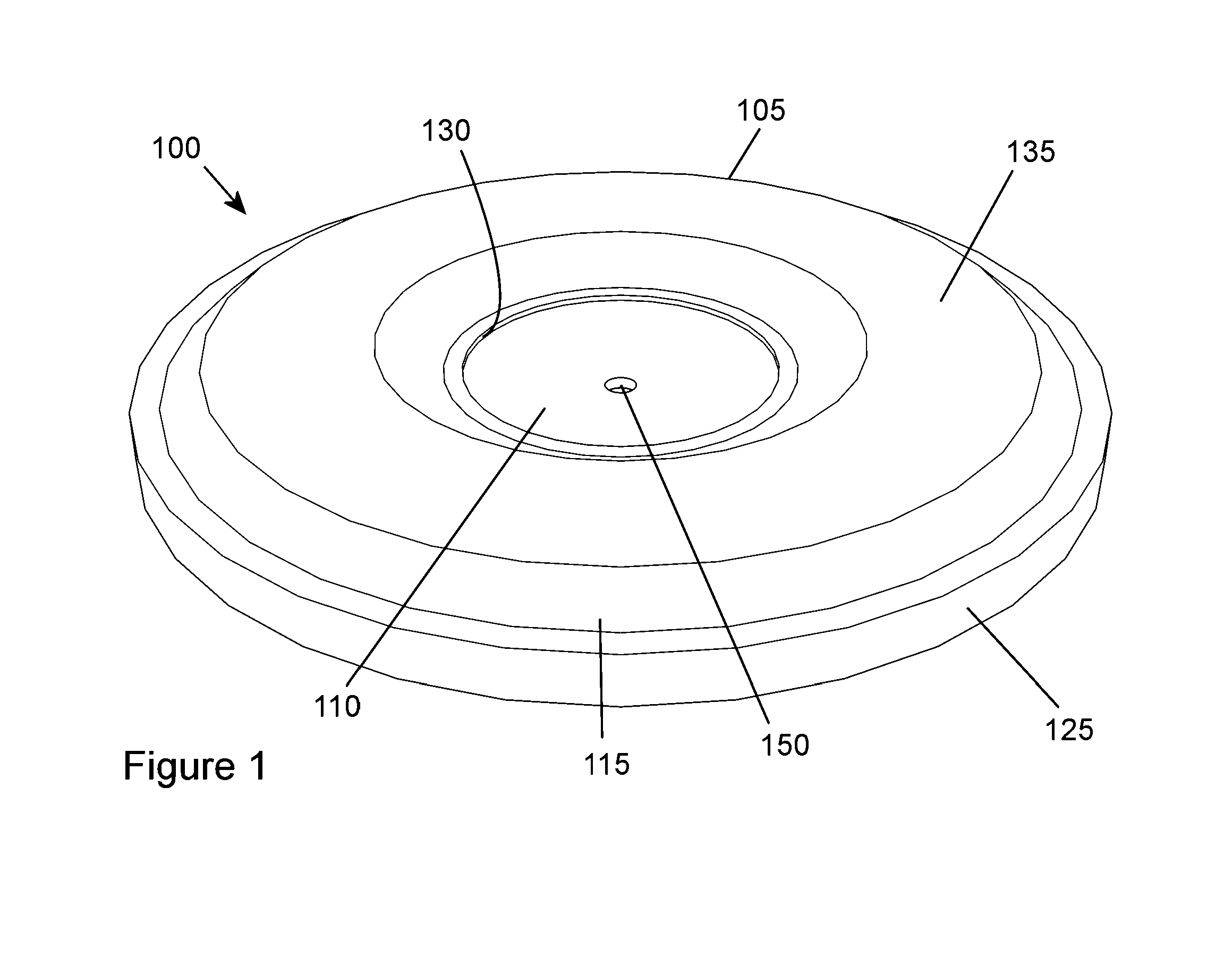

An anchoring device (100) for attaching a membrane to a surface includes a rigid bonding plate (105) and a pliable fixing plate (110) secured beneath the bonding plate (105). A hole (130) in the bonding plate (105) gives access to the fixing plate (110) from above so that a fastener can be driven into the fixing plate (110) to attach the anchoring device (100) to the surface. The top of the bonding plate (105) has a bonding area (135) provided with a heat-activated adhesive. The membrane is laid over the anchoring device (100) and the adhesive activated by induction heating the bonding plate (105) to attach the membrane to the anchoring device (100). The pliable fixing plate (110) deforms, if necessary, in preference to the bonding plate (105) to ensure the bonding area (135) is not distorted by the force of driving the fastener into the fixing plate (110).[French]
L'invention concerne un dispositif d'ancrage (100) pour fixer une membrane à une surface qui comprend une plaque de liaison rigide (105) et une plaque de fixation pliable (110) fixée sous la plaque de liaison (105). Un trou (130) dans la plaque de liaison (105) donne accès à la plaque de fixation (110) par le dessus de telle sorte qu'un élément de fixation peut être entraîné dans la plaque de fixation (110) pour fixer le dispositif d'ancrage (100) à la surface. La partie supérieure de la plaque de liaison (105) a une zone de liaison (135) pourvue d'un adhésif activé par la chaleur. La membrane est posée sur le dispositif d'ancrage (100) et l'adhésif est activé par chauffage par induction de la plaque de liaison (105) pour fixer la membrane au dispositif d'ancrage (100). La plaque de fixation pliable (110) se déforme, si nécessaire, de préférence à la plaque de liaison (105) pour assurer que la zone de liaison (135) n'est pas déformée par la force d'entraînement de l'élément de fixation dans la plaque de fixation (110).
