WO2023131798 - PANEL CONNECTING DEVICE
National phase entry:
Publication Number
WO/2023/131798
Publication Date
13.07.2023
International Application No.
PCT/GB2023/050025
International Filing Date
06.01.2023
Title **
[English]
PANEL CONNECTING DEVICE
[French]
DISPOSITIF DE LIAISON DE PANNEAUX
Applicants **
MORTIMER, Wayne
Inventors
MORTIMER, Wayne
Priority Data
2200162.2
07.01.2022
GB
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2536 | |
| EPO | Filing, Examination, Granting | 14058 | |
| Japan | Filing, Examination, Granting | 2709 | |
| South Korea | Filing, Examination, Granting | 3308 | |
| USA | Filing, Examination, Granting | 7940 |
Total:
30,551
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

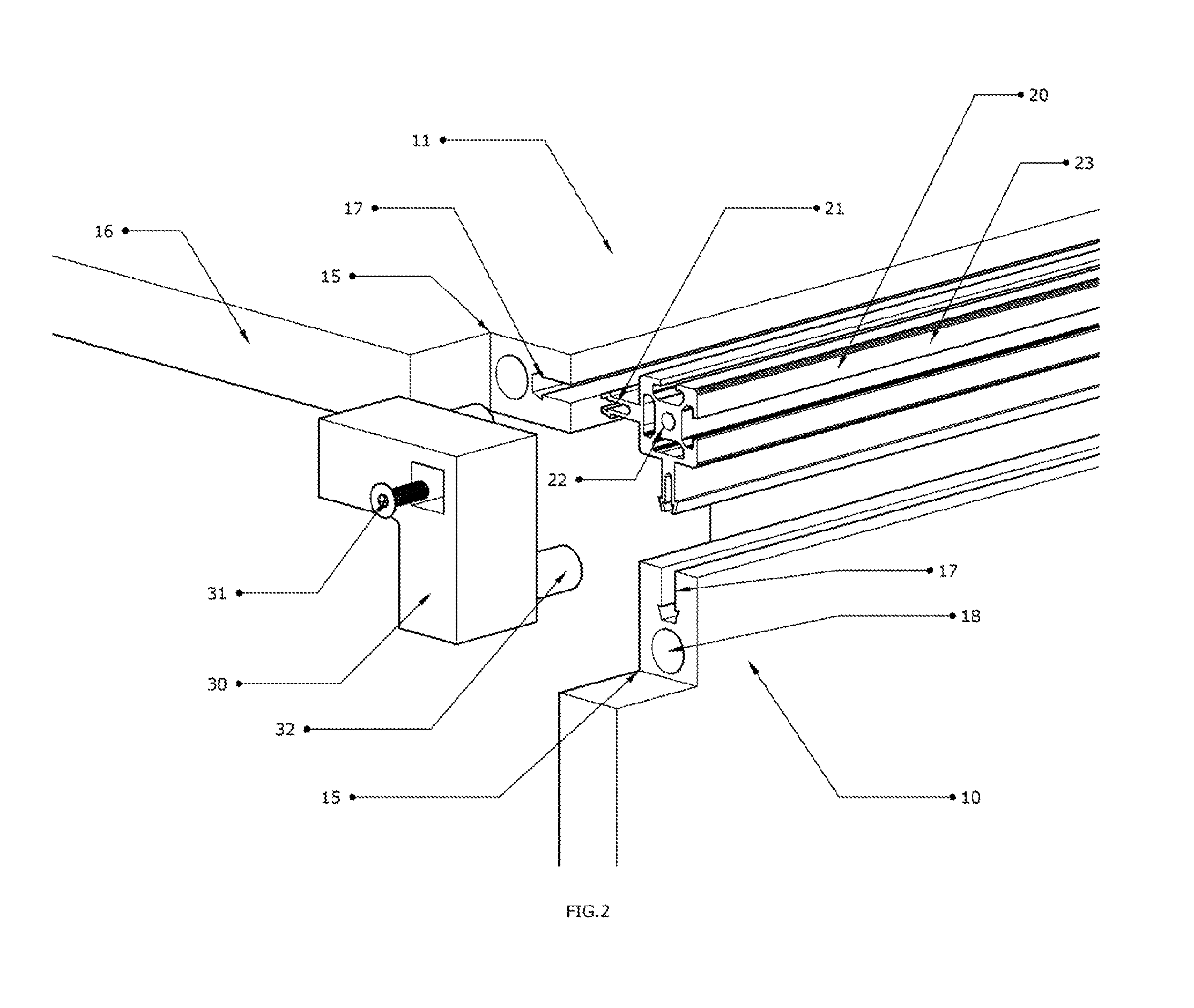

An exemplary panel connecting system includes an elongate structural profile and two alignment means abutting opposite ends of the structural profile. The structural profile includes a main body and two elongate, elastically deformable tenons extending from the main body. Typically, the tenons are perpendicular to each other. Each tenon is bifurcated, thereby defining a pair of elongate prongs. Each prong has a stem portion and an enlarged distal end barb. The prongs are elastically deformable towards each other and thereby snappingly engaged in a matching channel of a corresponding panel. Each alignment means includes a pair of plugs, each of which is interferingly engaged in a matching hole of a corresponding panel. The structural profile also includes a slot channel, whereby it is attachable to another contiguous structural profile by an interlocking means when needed.[French]
Un système de liaison de panneaux donné à titre d'exemple comprend un profil structural allongé et deux moyens d'alignement venant en butée contre des extrémités opposées du profil structural. Le profil structural comprend un corps principal et deux tenons allongés élastiquement déformables s'étendant depuis le corps principal. Normalement, les tenons sont perpendiculaires l'un à l'autre. Chaque tenon est divisé en deux parties, délimitant ainsi une paire de dents allongées. Chaque dent possède une partie tige et une barbelure d'extrémité distale agrandie. Les dents sont élastiquement déformables l'une vers l'autre et s'engagent ainsi par encliquetage dans un canal correspondant d'un panneau correspondant. Chaque moyen d'alignement comprend une paire de fiches, dont chacune vient en contact par interférence dans un trou correspondant d'un panneau correspondant. Le profil structural comprend également un canal de fente, ce par quoi il peut être fixé à un autre profil structural contigu par un moyen d'interverrouillage lorsque cela est nécessaire.
