WO2024261410 - HEATING DISPENSER FOR SHOWER GEL AND/OR SHAMPOO
National phase entry is expected:
Publication Number
WO/2024/261410
Publication Date
26.12.2024
International Application No.
PCT/FR2024/000058
International Filing Date
13.05.2024
Title **
[English]
HEATING DISPENSER FOR SHOWER GEL AND/OR SHAMPOO
[French]
DISTRIBUTEUR CHAUFFANT DE GEL DOUCHE ET/OU DE SHAMPOING
Applicants **
MOULAN, Raphael Roger Olivier
1 RUE GUY DE MAUPASSANT
35340 LIFFRE, FR
Inventors
MOULAN, Raphael Roger Olivier
1 RUE GUY DE MAUPASSANT
35340 LIFFRE, FR
Priority Data
FR2306287
19.06.2023
FR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 938 | |
| EPO | Filing, Examination | 3588 | |
| Japan | Filing | 532 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2635 |
Total: 8268 USD
Abstract[English]

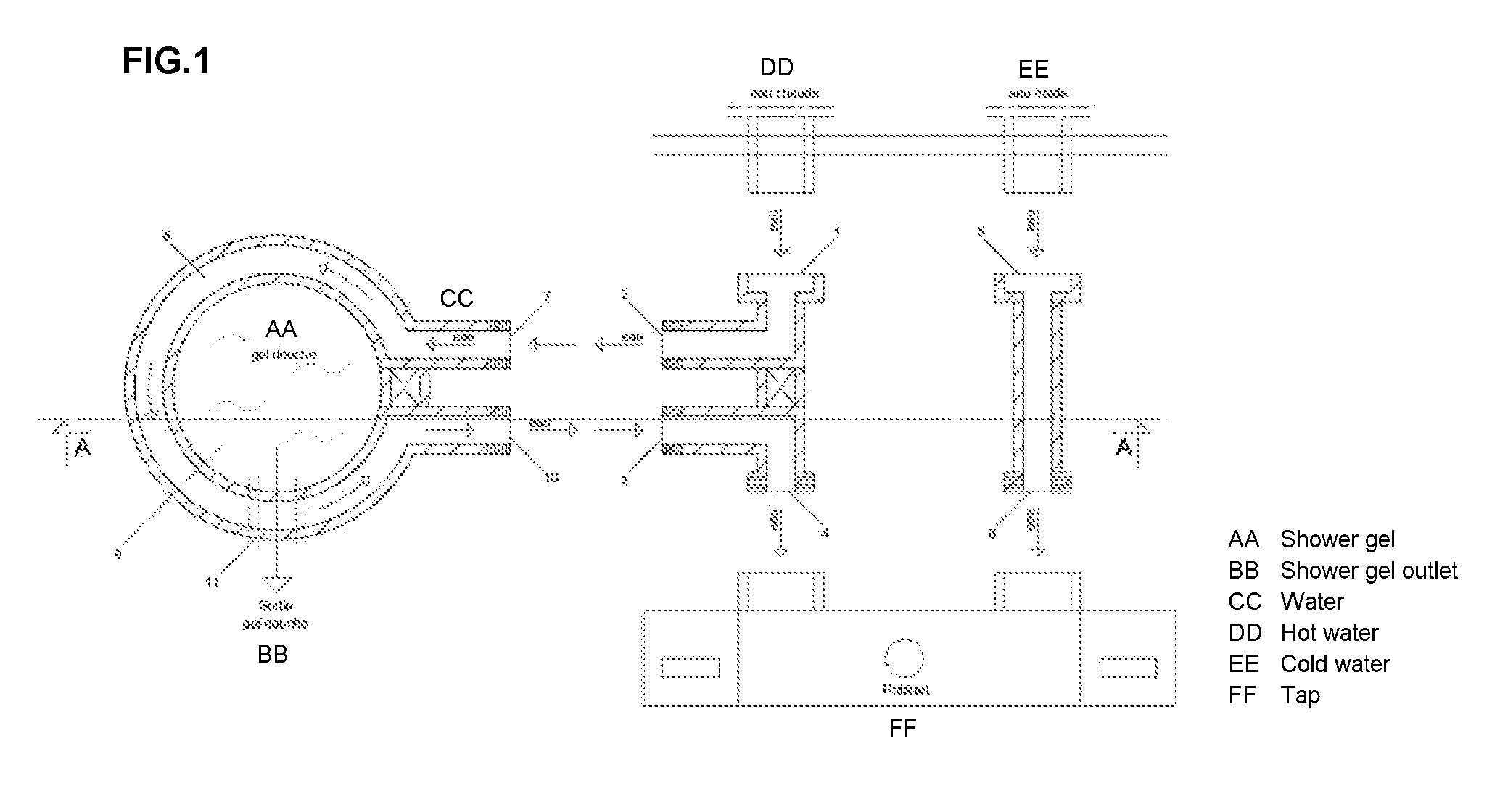

The invention relates to a device for heating and dispensing shower gel and/or shampoo during the use of a shower, without additional energy and without the sensation of cold during use. It consists of a first connector with four end pieces, a removable female nut of size G3/4 (1), two male nipples of size G1/2 (2 and 3) and a G3/4 male nipple (4). It also consists of a second connector with two end pieces, a removable female nut of size G3/4 (5) and a male nipple of size G3/4 (6). It additionally consists of a copper container with an outer channel forming a loop (8), an inlet to the channel with a male nipple of size G1/2 (7) and an outlet from the channel with a male nipple of size G1/2 (10). The loop of the channel forms a reservoir (9) at the centre, and a tunnel passing through the outer channel allows access to the centre of the reservoir (9) by means of a soap pump, which is actuated by the user.[French]
Dispositif pour réchauffer et distribuer le gel douche et/ou le shampoing pendant l'usage d'une douche, sans énergie supplémentaire et sans avoir la sensation de froid lors de l'usage. Il est constitué d'un premier raccord avec quatre embouts, un écrou femelle amovible de dimension G3/4 (1), deux mamelons mâles de dimension Gl/2 (2et3) et un mamelon mâle G3/4 (4). D'un deuxième raccord avec deux embouts, un écrou femelle amovible de dimension G3/4 (5) et un mamelon mâle de dimension G3/4 (6). Et d'un contenant en cuivre avec un canal extérieur formant une boucle (8), une entrée au canal avec un mamelon mâle de dimension Gl/2 (7) et une sortie du canal avec un mamelon mâle de dimension Gl/2 (10). La boucle du canal forme au centre une cuve (9) et un tunnel traversant le canal extérieur permet l'accès au centre de la cuve (9) à l'aide d'une pompe à savon, actionné par l'utilisateur.
