WO2026109757 - ELEKTROCHEMIEVORRICHTUNG, ELEKTROLYSEANLAGE ODER BRENNSTOFFZELLENANLAGE MIT DER ELEKTROCHEMIEVORRICHTUNG UND VERFAHREN ZUM BETRIEB DER ELEKTROCHEMIEVORRICHTUNG

National phase entry is expected:
Publication Number WO/2026/109757
Publication Date 28.05.2026
International Application No. PCT/EP2025/083954
International Filing Date 24.11.2025
Title **
[German] ELEKTROCHEMIEVORRICHTUNG, ELEKTROLYSEANLAGE ODER BRENNSTOFFZELLENANLAGE MIT DER ELEKTROCHEMIEVORRICHTUNG UND VERFAHREN ZUM BETRIEB DER ELEKTROCHEMIEVORRICHTUNG
[English] ELECTROCHEMICAL DEVICE, ELECTROLYSIS SYSTEM, OR FUEL CELL SYSTEM COMPRISING THE ELECTROCHEMICAL DEVICE, AND METHOD FOR OPERATING THE ELECTROCHEMICAL DEVICE
[French] DISPOSITIF ÉLECTROCHIMIQUE, INSTALLATION D'ÉLECTROLYSE OU INSTALLATION DE PILES À COMBUSTIBLE COMPRENANT LE DISPOSITIF ÉLECTROCHIMIQUE ET PROCÉDÉ POUR FAIRE FONCTIONNER LE DISPOSITIF ÉLECTROCHIMIQUE
Applicants **
ROBERT BOSCH GMBH
Inventors
SPAHIC, Elvis
TOMBERG, Marius
RIEDEL, Marc
SENGAMEDU PRASANNA VENKATESAN, Gururajan
KUPPUSAMY, Mohan Kumar
RAJENDRAN, Muthukumar
SAMSANTHOSH, Durairaj
SANKAR, Arumugarajan
Priority Data
102024211258.5   25.11.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1880
EPO Filing, Examination, Granting8126
Japan Filing, Examination, Granting2001
South Korea Filing, Examination, Granting1757
USA Filing, Examination, Granting5340
MasterCard Visa
Total: 19,104
Contact Us

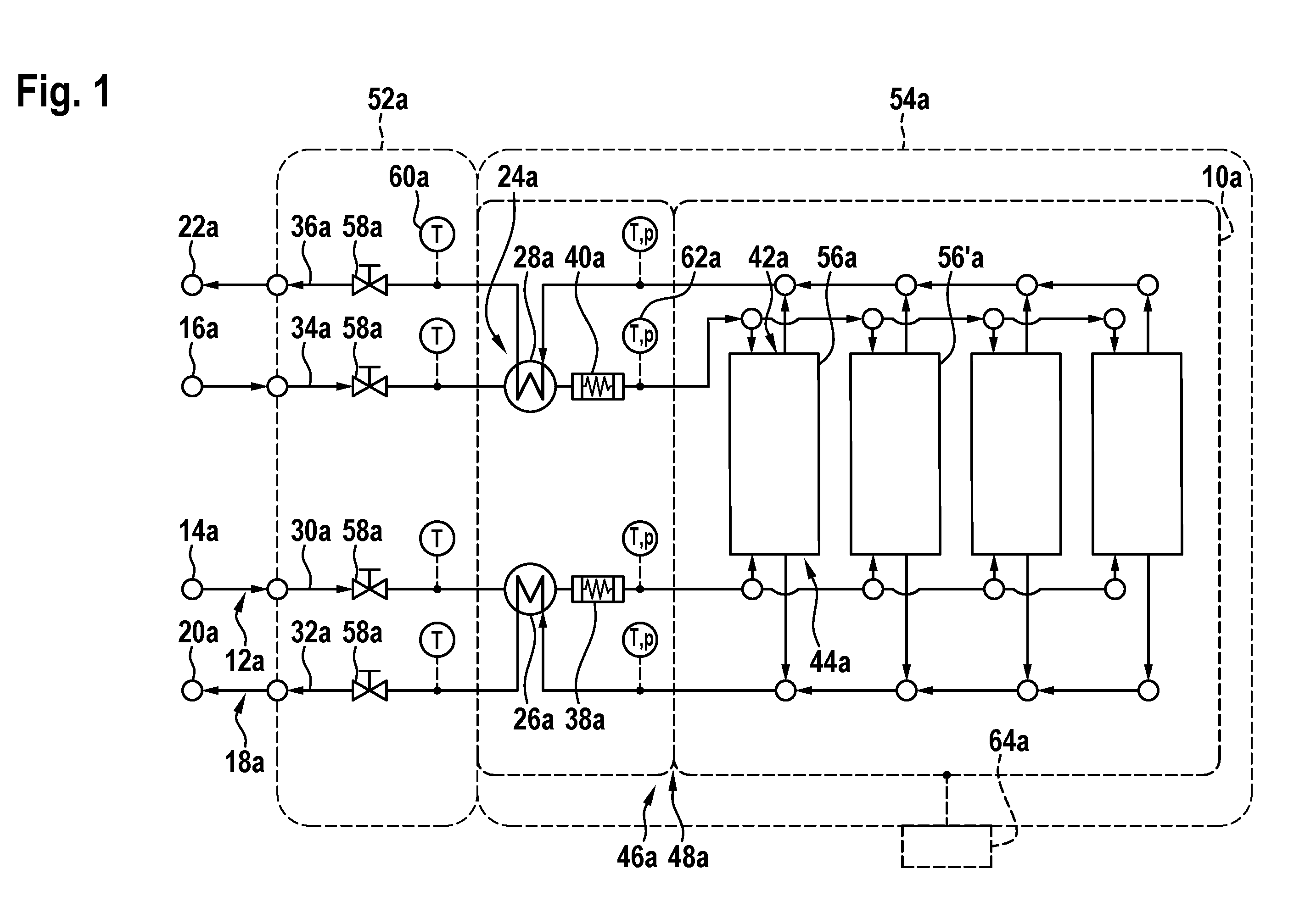

Abstract[German] Die Erfindung geht aus von einer Elektrochemievorrichtung (48a-b), mit zumindest einem Elektrochemiezellenmodul (10a-b), mit einer Gaszuleitungseinheit (12a-b) zu einer Zuleitung von zumindest einem Eduktgas (14a-b) und/oder Luft (16a-b) zu dem Elektrochemiezellenmodul (10a-b), mit einer Gasableitungseinheit (18a-b) zu einer Ableitung von zumindest einem Abgas (66b), zumindest einem Produktgas (20a), einer Abluft (22a-b) und/oder einer angereicherten Luft von dem Elektrochemiezellenmodul (10a-b), und mit einer Heizeinheit (24a-b) zumindest zu einer Erwärmung des von der Gaszuleitungseinheit (12a-b) zugeleiteten zumindest einen Eduktgases (14a-b) und/oder der von der Gaszuleitungseinheit (12a-b) zugeleiteten Luft (16a-b). Es wird vorgeschlagen, dass die Heizeinheit (24a-b) zumindest einen Wärmeüberträger (26a-b) umfasst, welcher dem abgeleiteten Abgas (66b), dem abgeleiteten Produktgas (20a), der abgeleiteten Abluft (22a-b) und/oder der abgeleiteten angereicherten Luft Wärme entzieht und dem zugeleiteten zumindest einen Eduktgas (14a-b) und/oder der zugeleiteten Luft (16a-b) zuführt, sodass eine Temperatur des zugeleiteten zumindest einen Eduktgases (14a-b) und/oder der zugeleiteten Luft (16a-b) in einem Temperaturbereich oberhalb von 500°C, insbesondere zwischen 500°C und 1000°C, gehalten wird.[English] The invention relates to an electrochemical device (48a-b) comprising at least one electrochemical cell module (10a-b), a gas supply unit (12a-b) for supplying at least one reactant gas (14a-b) and/or air (16a-b) to the electrochemical cell module (10a-b), a gas discharge unit (18a-b) for discharging at least one exhaust gas (66b), at least one product gas (20a), exhaust air (22a-b), and/or enriched air from the electrochemical cell module (10a-b); and a heating unit (24a-b) at least for heating the at least one reactant gas (14a-b) supplied by the gas supply unit (12a-b) and/or the air (16a-b) supplied by the gas supply unit (12a-b). According to the invention, the heating unit (24a-b) comprises at least one heat exchanger (26a-b) which extracts heat from the discharged exhaust gas (66b), the discharged product gas (20a), the discharged exhaust air (22a-b) and/or the discharged enriched air, and supplies heat to the supplied at least one reactant gas (14a-b) and/or the supplied air (16a-b) such that the temperature of the supplied at least one reactant gas (14a-b) and/or of the supplied air (16a-b) is maintained in a temperature range above 500°C, in particular between 500°C and 1000°C.[French] L'invention concerne un dispositif électrochimique (48a-b) comprenant au moins un module de cellules électrochimiques (10a-b), une unité d'amenée de gaz (12a-b) pour amener au moins un gaz de départ (14a-b) et/ou de l'air (16a-b) vers le module de cellules électrochimiques (10a-b), une unité d'évacuation de gaz (18a-b) pour l'évacuation d'au moins un gaz d'échappement (66b), d'au moins un gaz produit (20a), d'un air vicié (22a-b) et/ou un air enrichi depuis le module de cellules électrochimiques (10a-b), et une unité de chauffage (24a-b) destinée au moins à chauffer le ou les gaz de départ (14a-b) amenés par l'unité d'amenée de gaz (12a-b) et/ou l'air (16a-b) amené par l'unité d'amenée de gaz (12a-b). Selon l'invention, l'unité de chauffage (24a-b) comprend au moins un échangeur de chaleur (26a-b) qui extrait de la chaleur du gaz d'échappement (66b) évacué, du gaz produit (20a) évacué, de l'air vicié (22a-b) évacué et/ou de l'air enrichi évacué, et la transmet au(x) gaz de départ (14a-b) amenés et/ou à l'air (16a-b) amené, de sorte qu'une température du ou des gaz de départ (14a-b) amenés et/ou de l'air (16a-b) amené soit maintenue dans une plage de températures supérieure à 500°C, en particulier entre 500 °C et 1000 °C.
