WO2026068072 - KREISPROZESSVORRICHTUNG, THERMOMANAGEMENTSYSTEM, UND FAHRZEUG

National phase entry is expected:
Publication Number WO/2026/068072
Publication Date 02.04.2026
International Application No. PCT/EP2025/073164
International Filing Date 13.08.2025
Title **
[German] KREISPROZESSVORRICHTUNG, THERMOMANAGEMENTSYSTEM, UND FAHRZEUG
[English] CYCLIC PROCESS DEVICE, THERMAL MANAGEMENT SYSTEM AND VEHICLE
[French] DISPOSITIF À CYCLE, SYSTÈME DE GESTION THERMIQUE, ET VÉHICULE
Applicants **
ZF FRIEDRICHSHAFEN AG
Inventors
OCH, Johannes
Priority Data
102024209410.2   27.09.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1880
EPO Filing, Examination, Granting8113
Japan Filing, Examination, Granting1998
South Korea Filing, Examination, Granting1757
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 18,488
Contact Us

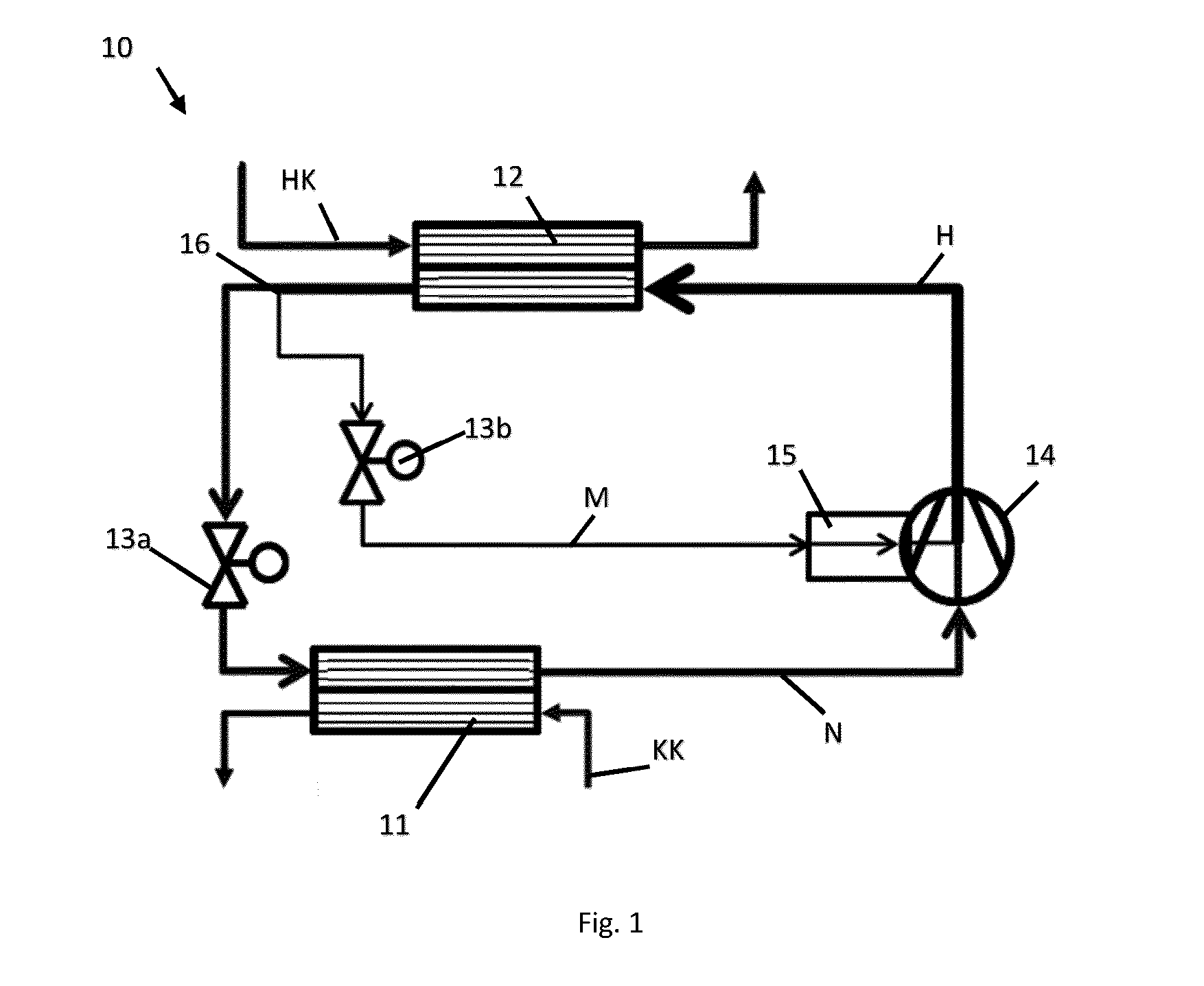

Abstract[German] Kreisprozessvorrichtung, Thermomanagementsystem, und Fahrzeug Kreisprozessvorrichtung (10), insbesondere eine Wärmepumpe, umfassend: einen Kältemittelkreis, der dazu ausgestaltet ist, dass in diesem ein Kältemittel zirkulieren kann, einen Verdampfer (11) und einen Kondensator (12), die jeweils im Kältemittelkreis angeordnet und zum Austausch thermischer Energie ausgestaltet sind, zumindest ein erstes Ventil (13a) und ein zweites Ventil (13b), die im Kältemittelkreis angeordnet und dazu ausgestaltet sind, einen Druck des Kältemittels einzustellen, zumindest eine Kompressoreinheit (14), die im Kältemittelkreis angeordnet und dazu ausgestaltet ist, das Kältemittel zu verdichten, eine Niederdruckleitung (N), die sich zwischen dem ersten Ventil (13a) und der Kompressoreinheit (14) erstreckt, eine Hochdruckleitung (H), die sich zwischen der Kompressoreinheit (14) und dem Kondensator (12) erstreckt und eine Mitteldruckleitung (M), die sich zwischen dem zweiten Ventil (13b) und der Kompressoreinheit (14) erstreckt, eine Antriebseinheit (15), die dazu ausgestaltet ist, die Kompressoreinheit (14) anzutreiben, wobei die Antriebseinheit (15) mit der Mitteldruckleitung (M) thermisch gekoppelt ist, um thermische Energie an das Kältemittel zu übertragen.[English] The invention relates to a cyclic process device (10), in particular a heat pump, comprising: a refrigerant circuit which is designed for a refrigerant to circulate therein; an evaporator (11) and a condenser (12) which are each arranged in the refrigerant circuit and are designed to exchange thermal energy; at least a first valve (13a) and a second valve (13b) which are arranged in the refrigerant circuit and are designed to adjust a pressure of the refrigerant; at least one compressor unit (14) which is arranged in the refrigerant circuit and is designed to compress the refrigerant; a low-pressure line (N) which extends between the first valve (13a) and the compressor unit (14); a high-pressure line (H) which extends between the compressor unit (14) and the condenser (12); a medium-pressure line (M) which extends between the second valve (13b) and the compressor unit (14); and a drive unit (15) which is designed to drive the compressor unit (14), wherein the drive unit (15) is thermally coupled to the medium-pressure line (M) in order to transfer thermal energy to the refrigerant.[French] L'invention concerne un dispositif à cycle, un système de gestion thermique et un véhicule. L'invention concerne un dispositif à cycle (10), en particulier une pompe à chaleur, comprenant : un circuit de frigorigène, configuré de sorte qu'un fluide frigorigène puisse y circuler ; un évaporateur (11) et un condenseur (12) disposés respectivement dans le circuit de frigorigène et conçus pour l'échange d'énergie thermique ; au moins une première vanne (13a) et une deuxième vanne (13b) disposées dans le circuit de frigorigène et conçues pour régler une pression du fluide frigorigène ; au moins une unité de compression (14), disposée dans le circuit de frigorigène et conçue pour comprimer le fluide frigorigène ; une conduite basse pression (N) qui s'étend entre la première vanne (13a) et l'unité de compression (14) ; une conduite haute pression (H) qui s'étend entre l'unité de compression (14) et le condenseur (12) ; une conduite moyenne pression (M) qui s'étend entre la deuxième vanne (13b) et l'unité de compression (14) ; une unité d'entraînement (15) qui est conçue pour entraîner l'unité de compression (14), l'unité d'entraînement (15) étant couplée thermiquement à la conduite moyenne pression (M) pour transmettre de l'énergie thermique au fluide frigorigène.
