WO2026057249 - DRUCKENTLASTETES VENTIL

National phase entry is expected:
Publication Number WO/2026/057249
Publication Date 19.03.2026
International Application No. PCT/EP2025/072391
International Filing Date 04.08.2025
Title **
[German] DRUCKENTLASTETES VENTIL
[English] PRESSURE-RELIEVED VALVE
[French] SOUPAPE À ÉQUILIBRAGE DE PRESSION
Applicants **
MAHLE INTERNATIONAL GMBH
Inventors
VAN DELDEN, Jeffrey
DIEKMANN, Johannes
LOOSER, Hans-Jörg
Priority Data
102024126034.3   11.09.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1882
EPO Filing, Examination, Granting8107
Japan Filing, Examination, Granting2000
South Korea Filing, Examination, Granting1754
USA Filing, Examination, Granting6540
MasterCard Visa
Total: 20,283
Contact Us

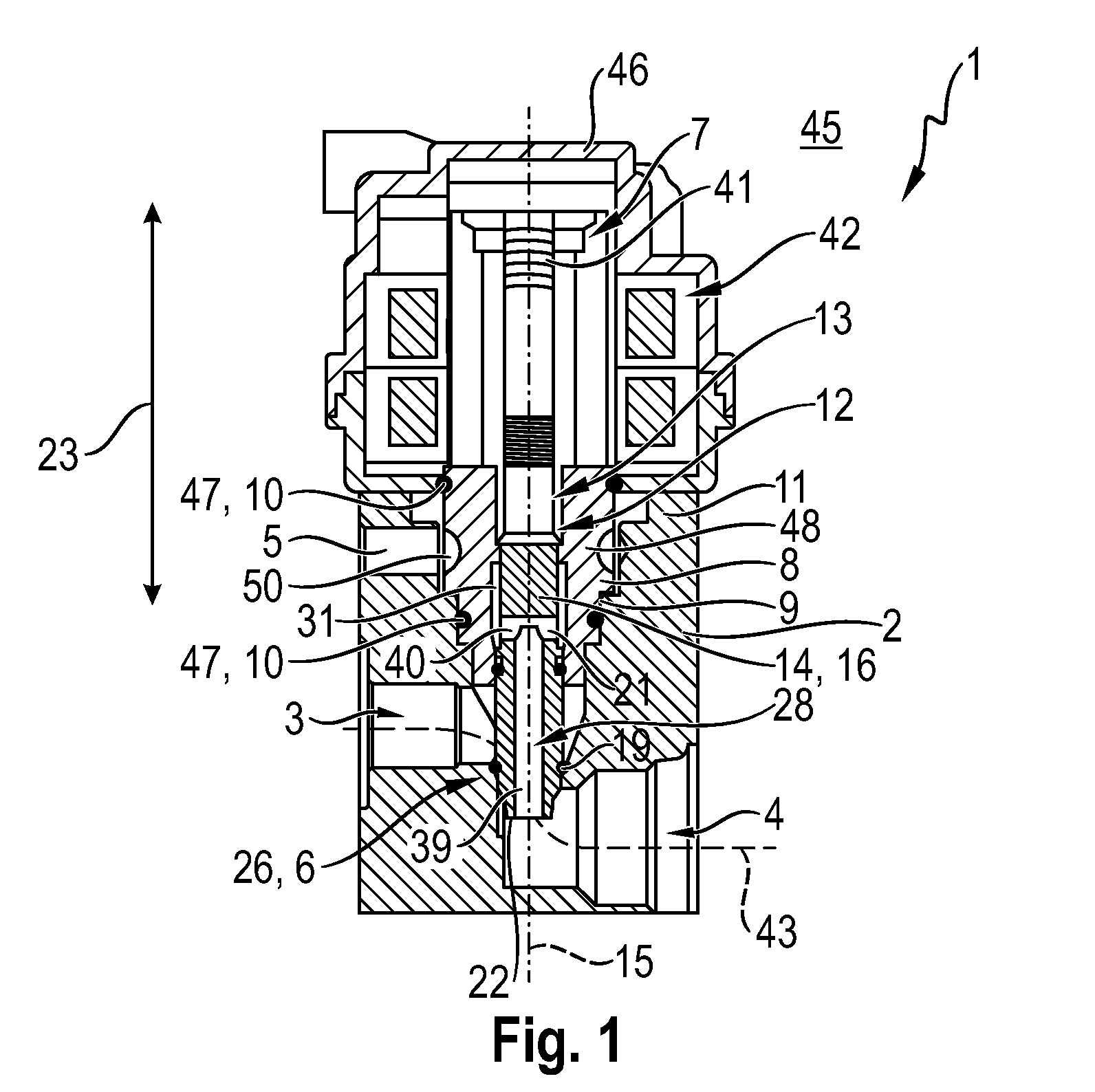

Abstract[German] Druckentlastetes Ventil (1) mit einem in einer Ventilkammer (7) eines Ventilgehäuses (2) angeordneten Ventilglied (14), das im Rahmen einer Stellbewegung (23) zwischen einer Schließstellung (24) und mindestens einer Offenstellung (25) axial hin und her bewegbar ist, wobei in der Schließstellung (24) ein erstes Dichtelement (19) des Ventilglieds (14) an einem Dichtsitz (26) einer zwei Ventilkanäle (3, 4) verbindenden Überströmöffnung (6) und ein zweites Dichtelement (20) des Ventilglieds (14) an einem Hülsendichtsitz (27) einer in der Ventilkammer (7) vorgesehenen Hülse (8) fluiddicht anliegen, und wobei in der mindestens einen Offenstellung (25) das erste Dichtelement (19) von dem Dichtsitz (26) und das zweite Dichtelement (20) von dem Hülsendichtsitz (27) abgehoben sind. Das Ventilglied (14) ist von einem Entlastungskanal (28) durchsetzt, der unter Ausbildung einer ersten Öffnung (29) an einer Stirnfläche (22) des Ventilglieds (14) und unter Ausbildung zumindest einer zweiten, in einer Ausgleichskammer (13) angeordneten Öffnung (30) an dem Ventilglied (14) ausmündet.[English] The invention relates to a pressure-relieved valve (1) comprising a valve member (14) which is located in a valve chamber (7) of a valve housing (2) and which can be moved axially back and forth between a closed position (24) and at least one open position (25) within the scope of an actuating movement (23), wherein, in the closed position (24), a first sealing element (19) of the valve member (14) fluid-tightly bears against a sealing seat (26) of an overflow opening (6) connecting two valve channels (3, 4), and a second sealing element (20) of the valve member (14) fluid-tightly bears against a sleeve sealing seat (27) of a sleeve (8) provided in the valve chamber (7), and wherein, in the at least one open position (25), the first sealing element (19) is lifted off from the sealing seat (26) and the second sealing element (20) is lifted off from the sleeve sealing seat (27). The valve member (14) is passed through by a relief channel (28) which opens out on an end face (22) of the valve member (14) so as to form a first opening (29) and opens out on the valve member (14) so as to form at least one second opening (30) which is located in a compensation chamber (13).[French] L'invention concerne une soupape (1) à équilibrage de pression comprenant un obturateur (14) disposé dans une chambre de soupape (7) d'un corps de soupape, lequel est mobile axialement en va-et-vient dans le cadre d'un mouvement de réglage (23) entre une position de fermeture (24) et au moins une position d'ouverture (25). En position de fermeture (24), un premier élément d'étanchéité (19) de l'obturateur (14) s'appuie de manière étanche aux fluides contre un siège d'étanchéité (26) d'une ouverture de trop-plein (6) reliant deux conduits de soupape (3, 4) et un deuxième élément d'étanchéité (20) de l'obturateur (14) s'appuie de manière étanche aux fluides contre un siège d'étanchéité de douille (27) d'une douille (8) prévue dans la chambre de soupape (7). Dans la ou les positions d'ouverture (25), le premier élément d'étanchéité (19) est soulevé du siège d'étanchéité (26) et le deuxième élément d'étanchéité (20) est soulevé du siège d'étanchéité de douille (27). L'obturateur (14) est traversé par un canal d'équilibrage (28) qui débouche au niveau d'une face frontale (22) de l'obturateur (14) de manière à former une première ouverture (29), et au niveau de l'organe d'obturation (14) de manière à former au moins une deuxième ouverture (30) disposée dans une chambre de compensation (13).
