WO2026032663 - STATOR FOR ELECTRIC MOTOR HAVING INSULATION SLEEVES TO CONNECT LAMINATED CORE
National phase entry is expected:
Publication Number
WO/2026/032663
Publication Date
12.02.2026
International Application No.
PCT/EP2025/070707
International Filing Date
18.07.2025
Title **
[English]
STATOR FOR ELECTRIC MOTOR HAVING INSULATION SLEEVES TO CONNECT LAMINATED CORE
[French]
STATOR POUR MOTEUR ÉLECTRIQUE AYANT DES MANCHONS D'ISOLATION POUR CONNECTER UN NOYAU STRATIFIÉ
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
RAMOS MERINO, Patricio Mariano
Priority Data
18/795,381
06.08.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2082 | |
| EPO | Filing, Examination, Granting | 9134 | |
| Japan | Filing, Examination, Granting | 2214 | |
| South Korea | Filing, Examination, Granting | 2197 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
20,367
Contact Us
Abstract[English]

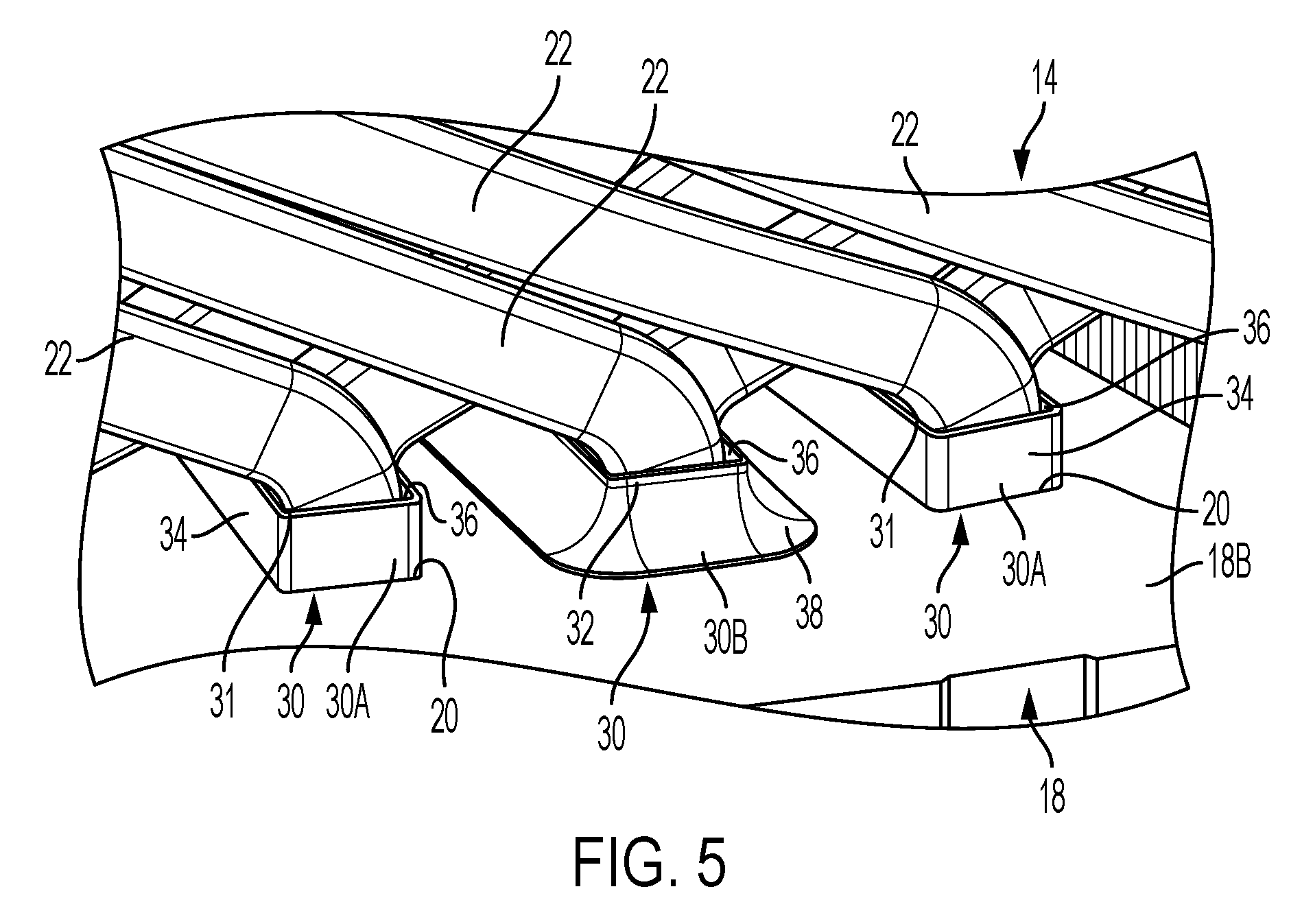

An electric motor (10) includes a rotor (12) and a stator (14). The stator (14) includes laminated steel plates (16) assembled in a stack (18), with axially extending openings (20) that extend through the stack (18) for receiving stator coil wires (22). Insulating inserts (30, 30') are provided, with one extending through each of the openings (20) that receives a stator coil wire (22). The insulating inserts (30, 30') are formed as plate connecting inserts (30, 30') having a hollow body (34, 34') with a coil wire receiving channel (36), and a first end (31) is slidably inserted into one of the axially extending openings (20) and a second end (32) with a head (38) is seated against an axially outermost one of the plates (16). A first subset (30A) of the inserts (30, 30') are inserted with the respective heads (38) on a first axial side (18A) of the stack (18), and a second subset (30B) of the inserts (30, 30') are inserted with the respective heads (38) on a second axial side (18B). Stator coil wires (22) extend through the coil wire receiving channels (36).[French]
La présente invention concerne un moteur électrique (10) qui comprend un rotor (12) et un stator (14). Le stator (14) comprend des plaques (16) d'acier stratifiées qui sont assemblées en un empilement (18), des ouvertures (20) qui s'étendent axialement s'étendant à travers l'empilement (18) pour recevoir des fils (22) de bobine de stator. Des inserts (30, 30') isolants s'étendent dans chacune des ouvertures (20) qui reçoivent un fil (22) de bobine de stator, chacune desdites ouvertures comportant un seul insert. Les inserts (30, 30') isolants se présentent sous la forme d'inserts (30, 30') de raccordement de plaques ayant un corps creux (34, 34') doté d'un canal (36) de réception de fil de bobine, et une première extrémité (31) est insérée de manière coulissante dans l'une des ouvertures (20) s'étendant axialement et une seconde extrémité (32) dotée d'une tête (38) est placée contre une plaque axialement la plus à l'extérieur parmi les plaques (16). Un premier sous-ensemble (30A) des inserts (30, 30') est inséré avec les têtes (38) respectives sur un premier côté axial (18A) de l'empilement (18), et un second sous-ensemble (30B) des inserts (30, 30') est inséré avec les têtes (38) respectives sur un second côté axial (18B). Les fils (22) de bobine de stator s'étendent dans les canaux (36) de réception de fil de bobine.
