WO2026021849 - ACTUATOR SYSTEM OF A BRAKE OF A VEHICLE AND METHOD FOR MONITORING AN OPERATION OF AN ACTUATOR ELEMENT OF THE ACTUATOR SYSTEM
National phase entry is expected:
Publication Number
WO/2026/021849
Publication Date
29.01.2026
International Application No.
PCT/EP2025/069434
International Filing Date
08.07.2025
Title **
[English]
ACTUATOR SYSTEM OF A BRAKE OF A VEHICLE AND METHOD FOR MONITORING AN OPERATION OF AN ACTUATOR ELEMENT OF THE ACTUATOR SYSTEM
[French]
SYSTÈME ACTIONNEUR D'UN FREIN D'UN VÉHICULE ET PROCÉDÉ POUR LA SURVEILLANCE D'UNE OPÉRATION D'UN ÉLÉMENT ACTIONNEUR DU SYSTÈME ACTIONNEUR
Applicants **
KB INTELLECTUAL PROPERTY GMBH & CO. KG
Inventors
KAKONYI, Robert
Priority Data
24190653.6
24.07.2024
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1911 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2030 | |
| South Korea | Filing, Examination, Granting | 1816 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,604
Contact Us
Abstract[English]

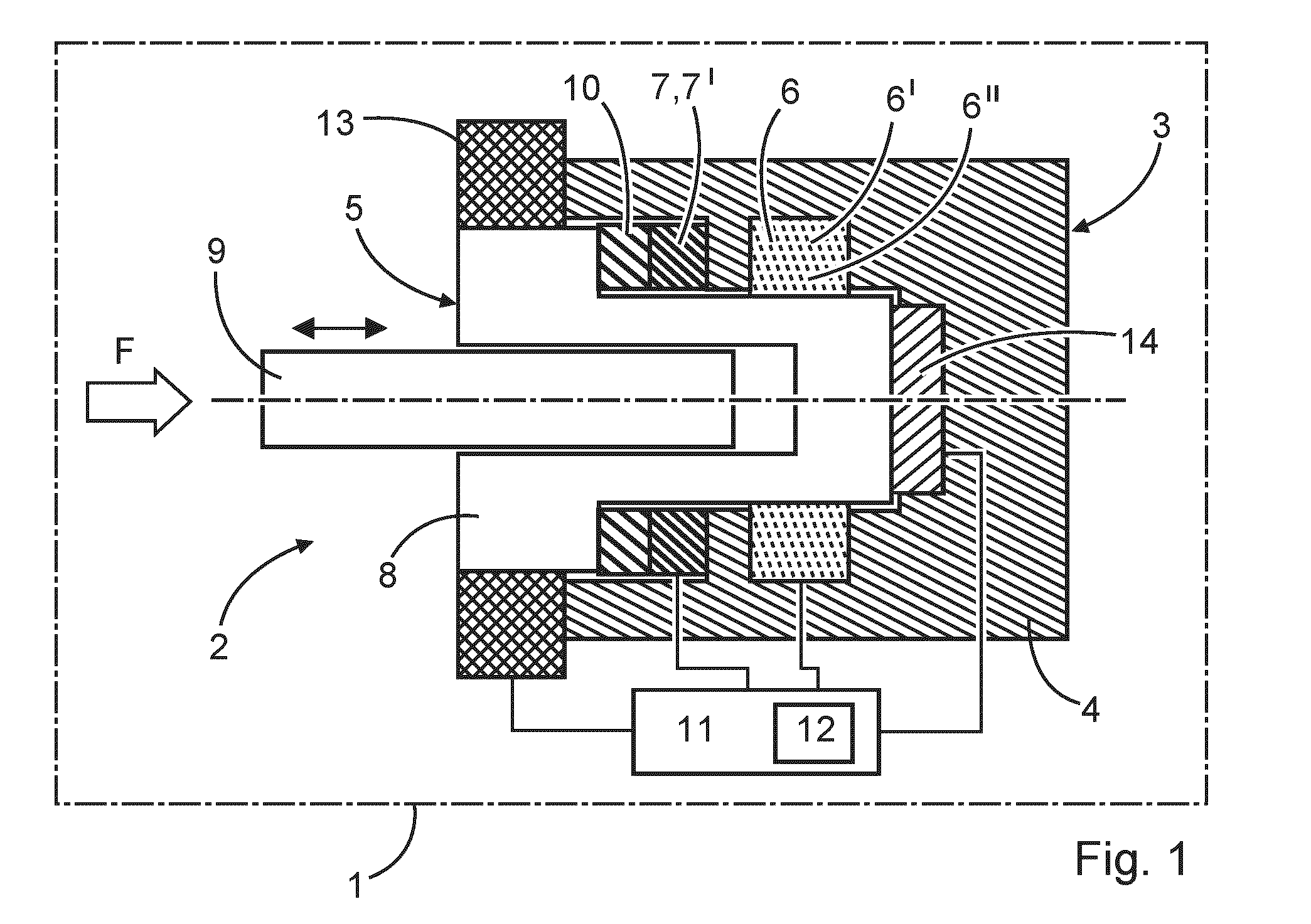

An actuator system (2) of a brake system of a vehicle (1), in particular, of a railway vehicle, wherein the actuator system (2) is configured to provide a braking force for braking the vehicle (1), is provided. The actuator system (2) comprises an actuator (3) having an actuator device participating in generating or releasing the braking force, and a detection device (7) configured to detect a reaction caused by an action of the actuator device during a generation or a releasing of the braking force and to output a signal corresponding to the reaction. The actuator system (2) comprises a control device (11) configured to control the actuator device and comprising an evaluation device (12) configured to receive the signal from the detection device (7) and to evaluate the reaction by comparing a chronological sequence of the signal with a predetermined chronological sequence.[French]
L'invention concerne un système actionneur (2) d'un système de frein d'un véhicule (1), en particulier, d'un véhicule ferroviaire, le système actionneur (2) étant conçu pour fournir une force de freinage permettant de freiner le véhicule (1). Le système actionneur (2) comprend un actionneur (3) comportant un dispositif actionneur participant à la génération ou au relâchement de la force de freinage, et un dispositif de détection (7) conçu pour détecter une réaction provoquée par une action du dispositif actionneur lors d'une génération ou d'un relâchement de la force de freinage et pour émettre un signal correspondant à la réaction. Le système actionneur (2) comprend un dispositif de commande (11) conçu pour commander le dispositif actionneur et comprenant un dispositif d'évaluation (12) conçu pour recevoir le signal en provenance du dispositif de détection (7) et pour évaluer la réaction en comparant une séquence chronologique du signal à une séquence chronologique prédéterminée.
