WO2025252441 - -ABTRENNUNGSVORRICHTUNG
National phase entry is expected:
Publication Number
WO/2025/252441
Publication Date
11.12.2025
International Application No.
PCT/EP2025/063665
International Filing Date
19.05.2025
Title **
[German]
-ABTRENNUNGSVORRICHTUNG
[English]
SEPARATION DEVICE
[French]
VERSABLE ET DISPOSITIF DE SÉPARATION DE CO
Applicants **
ROBERT BOSCH GMBH
Inventors
WEIL, Thomas
BAUER, Harald
Priority Data
102024205163.2
05.06.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2173 | |
| EPO | Filing, Examination, Granting | 10236 | |
| Japan | Filing, Examination, Granting | 2277 | |
| South Korea | Filing, Examination, Granting | 2318 | |
| USA | Filing, Examination, Granting | 5340 |
Total:
22,344
Contact Us
Abstract[German]
aus einem zugeführten Luftstrom (40), vorgeschlagen. Das Drehventil (10) weist ein drehbar gelagertes Ventilelement (22) mit einem Durchgangskanal auf, welcher zwischen einem Kanaleingang (28) und einem Kanalausgang (30) einen maximalen Durchgangswinkel (32) gegenüber einer Horizontalebene (34) für die schwerkraftgetriebene Strömung (12) des schüttfähigen Materials (14, 14') ausbildet, wobei mittels Drehung des Ventilelements (22) und damit des Durchgangskanals (26) gegenüber der Horizontalebene (34) der maximale Durchgangswinkel (32) variabel einstellbar ist, um die Durchflussmenge der schwerkraftgetriebenen Strömung (12) des schüttfähigen Materials (14, 14') einzustellen.[English]

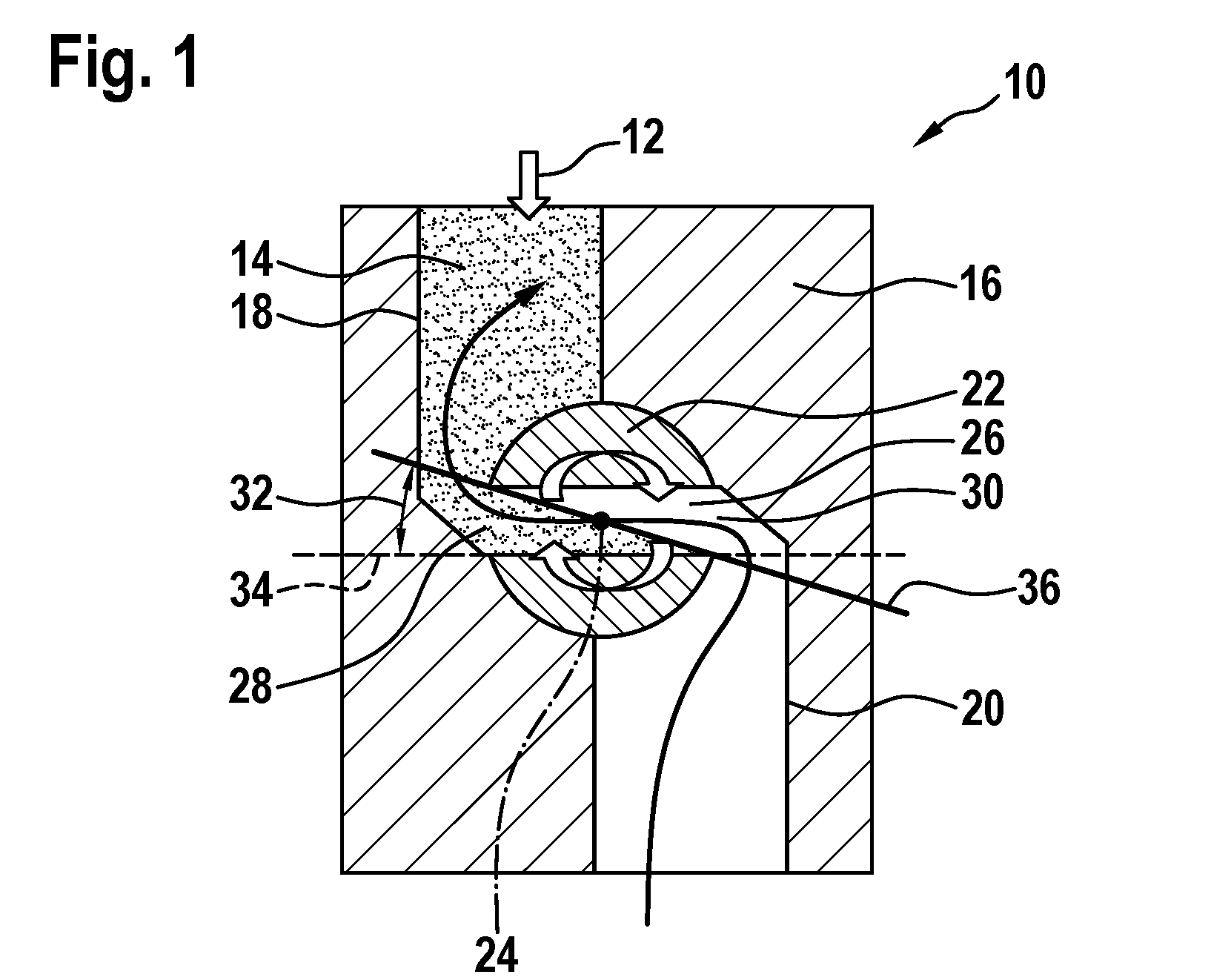

from a supplied air flow (40). The rotary valve (10) has a rotatably mounted valve element (22) with a through-channel which forms, between a channel inlet (28) and a channel outlet (30), a maximum passage angle (32) relative to a horizontal plane (34) for the gravity-driven flow (12) of the pourable material (14, 14'), said maximum passage angle (32) being variably adjustable by rotating the valve element (22), and thus the through-channel (26), relative to the horizontal plane (34) in order to adjust the flow rate of the gravity-driven flow (12) of the pourable material (14, 14').[French]
d'un flux d'air fourni (40). La vanne rotative (10) comporte un élément vanne (22) monté rotatif avec un canal traversant qui forme, entre une entrée de canal (28) et une sortie de canal (30), un angle de passage maximal (32) par rapport à un plan horizontal (34) pour le flux entraîné par gravité (12) du matériau versable (14, 14'), ledit angle de passage maximal (32) étant réglable de manière variable en faisant tourner l'élément vanne (22), et ainsi le canal traversant (26), par rapport au plan horizontal (34) afin de régler le débit du flux entraîné par gravité (12) du matériau versable (14, 14').
