WO2025210047 - HYDRAULIKSYSTEM
National phase entry is expected:
Publication Number
WO/2025/210047
Publication Date
09.10.2025
International Application No.
PCT/EP2025/058901
International Filing Date
02.04.2025
Title **
[German]
HYDRAULIKSYSTEM
[English]
HYDRAULIC SYSTEM
[French]
SYSTÈME HYDRAULIQUE
Applicants **
ROBERT BOSCH GMBH
Inventors
KERN, Helmut
IGMANN, Markus
Priority Data
102024203026.0
02.04.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1882 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2000 | |
| South Korea | Filing, Examination, Granting | 1754 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,483
Contact Us
Abstract[German]

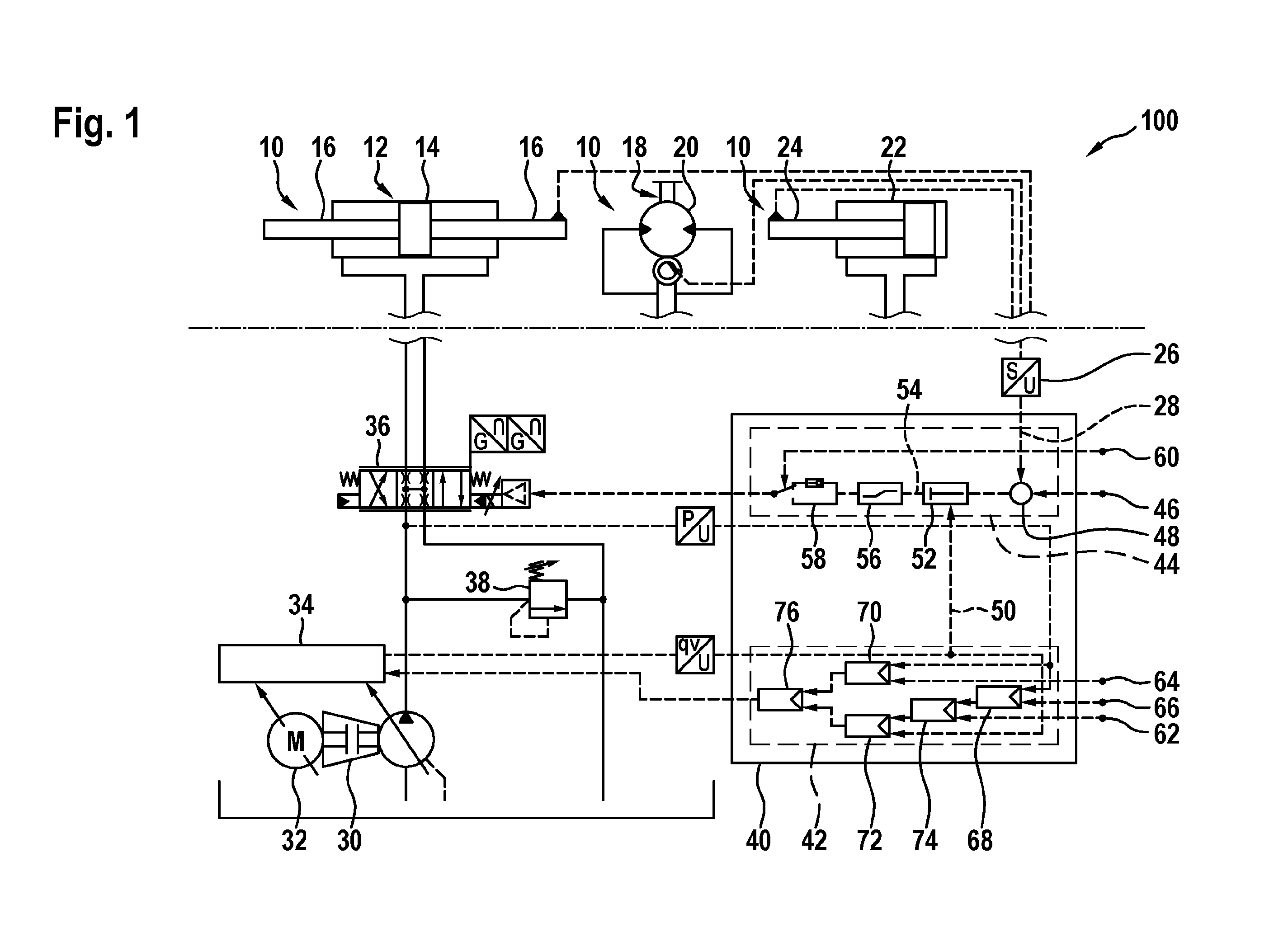

Die Erfindung betrifft ein Hydrauliksystem (100), aufweisend: - einen hydraulischen Verbraucher (10); - eine Regelpumpe (30); - ein Regelventil (36); und - einen Systemregler (40) zur dynamischen Positionsregelung des hydraulischen Verbrauchers (10), der Systemregler (40) aufweisend einen Pumpenregler (42) zum Regeln der Regelpumpe (30) und einen Ventilregler (44) zum Regeln des Regelventils (36); wobei der Ventilregler (44) eingerichtet ist, das Regelventil (36) auf Basis einer Soll-Position (46) des hydraulischen Verbrauchers (10), auf Basis eines Abgleiches (48) der Soll-Position (46) mit einer Ist-Position (28) des hydraulischen Verbrauchers (10) und auf Basis eines Verstärkungsfaktors (50) der Regelpumpe (30) in Abhängigkeit von einem Grenzwert zu regeln.[English]
The invention relates to a hydraulic system (100) comprising: - a hydraulic consumer (10); - a control pump (30); - a control valve (36); and - a system controller (40) for dynamically controlling the position of the hydraulic consumer (10), the system controller (40) having a pump controller (42) for controlling the control pump (30) and a valve controller (44) for controlling the control valve (36); wherein the valve controller (44) is designed to control the control valve (36) on the basis of a target position (46) of the hydraulic consumer (10), on the basis of a comparison (48) of the target position (46) with an actual position (28) of the hydraulic consumer (10) and on the basis of an amplification factor (50) of the control pump (30) depending on a limit value.[French]
L'invention concerne un système hydraulique (100) comprenant : - un consommateur hydraulique (10) ; - une pompe de commande (30) ; - une vanne de commande (36) ; et - un dispositif de commande de système (40) pour commander de manière dynamique la position du consommateur hydraulique (10), le dispositif de commande de système (40) ayant un dispositif de commande de pompe (42) pour commander la pompe de commande (30) et un dispositif de commande de vanne (44) pour commander la vanne de commande (36) ; le dispositif de commande de vanne (44) étant conçu pour commander la vanne de commande (36) sur la base d'une position cible (46) du consommateur hydraulique (10), sur la base d'une comparaison (48) de la position cible (46) avec une position réelle (28) du consommateur hydraulique (10) et sur la base d'un facteur d'amplification (50) de la pompe de commande (30) en fonction d'une valeur limite.
