WO2025201703 - VORRICHTUNG ZUM UMSTELLEN EINES STRÖMUNGSWEGS EINER FLÜSSIGKEIT EINER SANITÄRBRAUSE

National phase entry is expected:
Publication Number WO/2025/201703
Publication Date 02.10.2025
International Application No. PCT/EP2025/052588
International Filing Date 31.01.2025
Title **
[German] VORRICHTUNG ZUM UMSTELLEN EINES STRÖMUNGSWEGS EINER FLÜSSIGKEIT EINER SANITÄRBRAUSE
[English] DEVICE FOR SWITCHING A FLOW PATH OF A LIQUID IN A SANITARY SHOWER
[French] DISPOSITIF POUR MODIFIER UN CHEMIN D'ÉCOULEMENT D'UN LIQUIDE D'UNE POMME DE DOUCHE
Applicants **
GROHE AG
Inventors
MÖNIG, Benedikt
VOREL, Thomas
Priority Data
102024108479.0   25.03.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1882
EPO Filing, Examination, Granting8107
Japan Filing, Examination, Granting2000
South Korea Filing, Examination, Granting1754
USA Filing, Examination, Granting8940
MasterCard Visa
Total: 22,683
Contact Us

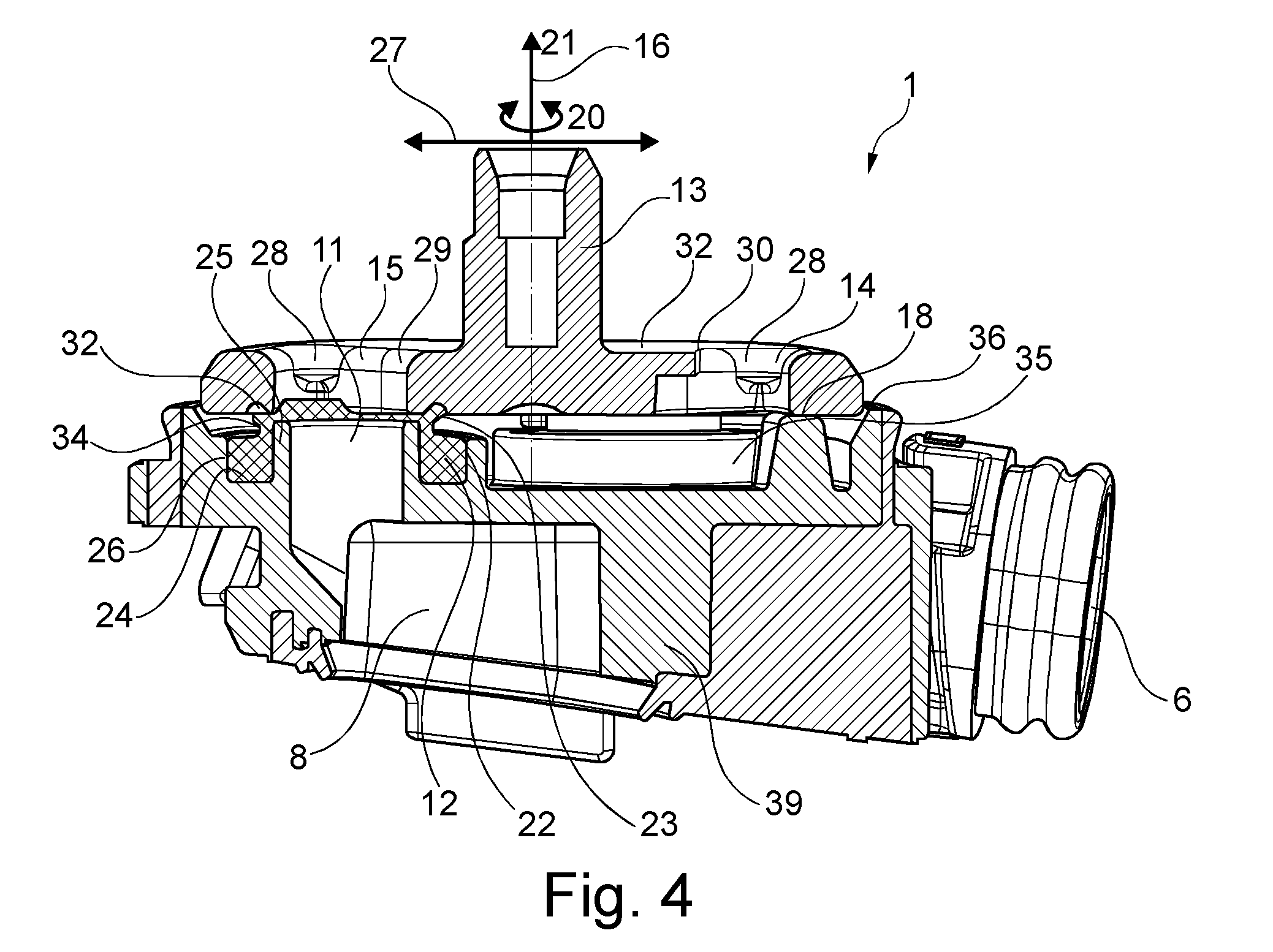

Abstract[German] Vorrichtung (1) zum Umstellen eines Strömungswegs (2) einer Flüssigkeit einer Sanitärbrause (3), zumindest aufweisend: - ein Gehäuse (4) mit zumindest einem Zulauf (5) und einer Mehrzahl von Abläufen (6, 7, 8), wobei die Abläufe (6, 7, 8) jeweils einen Ablaufeinlass (9, 10, 11) mit einer Dichtung (12) aufweisen; und - ein Umstellelement (13) mit mindestens einem Durchlass (14, 15), das an den Dichtungen (12) anliegt und zum Umstellen des Strömungswegs (2) um eine Drehachse (16) drehbar gelagert ist, so dass der mindestens eine Durchlass (14, 15) den Zulauf (5) wahlweise mit jeweils einem der Abläufe (6, 7, 8) strömungstechnisch verbindet; - wobei die Vorrichtung (1) ein Energiespeicherelement (17) aufweist, das das Umstellelement (13) entlang der Drehachse (16) gegen die Dichtungen (12) presst; wobei die Vorrichtung (1) einen ortsfesten Anschlag (18) aufweist, der eine Verlagerung des Umstellelements (13) entlang der Drehachse (16) hin zu den Dichtungen (12) begrenzt.[English] Disclosed is a device (1) for switching a flow path (2) of a liquid in a sanitary shower (3), the device at least comprising: - a housing (4) having at least one inflow point (5) and a plurality of outflow points (6, 7, 8), wherein the outflow points (6, 7, 8) each have an outflow point inlet (9, 10, 11) having a seal (12); and - a switching element (13) which has at least one passage (14, 15), lies against the seals (12) and is mounted rotatably about an axis of rotation (16) for the purposes of switching the flow path (2), such that the at least one passage (14, 15) fluidically connects the inflow point (5) selectively to one of the outflow points (6, 7, 8); - wherein the device (1) has an energy storage element (17) which presses the switching element (13) against the seals (12) along the axis of rotation (16); and wherein the device (1) has a fixed stop (18) which limits a displacement of the switching element (13) along the axis of rotation (16) toward the seals (12).[French] L'invention concerne un dispositif (1) permettant de modifier un chemin d'écoulement (2) d'un liquide d'une pomme de douche (3), ledit dispositif comprenant au moins : un boîtier (4) comportant au moins une arrivée (5) et une pluralité d’évacuations (6, 7, 8), les évacuations (6, 7, 8) présentant chacune une entrée d'évacuation (9, 10, 11) pourvue d'un joint d'étanchéité (12) ; et un élément de modification (13) doté d'au moins un passage (14, 15) qui repose sur les joints d'étanchéité (12) et qui est monté de manière à pouvoir tourner autour d'un axe de rotation (16) afin de modifier le chemin d'écoulement (2), de telle sorte que ledit au moins un passage (14, 15) relie fluidiquement l'arrivée (5) sélectivement à une des évacuations (6, 7, 8) ; le dispositif (1) présentant un élément accumulateur d'énergie (17) qui presse l'élément de modification (13) contre les joints d'étanchéité (12) le long de l'axe de rotation (16) ; le dispositif (1) présentant une butée fixe (18) qui limite un déplacement de l'élément de modification (13) le long de l'axe de rotation (16) vers les joints d'étanchéité (12).
