WO2025124767 - EINSPRITZ- BZW. EINBLASANLAGE MIT ZUMINDEST EINEM VENTIL ZUM ZUMESSEN EINES FLUIDS
National phase entry is expected:
Publication Number
WO/2025/124767
Publication Date
19.06.2025
International Application No.
PCT/EP2024/075778
International Filing Date
16.09.2024
Title **
[German]
EINSPRITZ- BZW. EINBLASANLAGE MIT ZUMINDEST EINEM VENTIL ZUM ZUMESSEN EINES FLUIDS
[English]
INJECTION SYSTEM HAVING AT LEAST ONE VALVE FOR METERING A FLUID
[French]
SYSTÈME D'INJECTION AYANT AU MOINS UNE SOUPAPE DE DOSAGE DE FLUIDE
Applicants **
ROBERT BOSCH GMBH
Inventors
KLINKHAMMER, Thorsten
BIEDRON, Manuel
BOSSE, Daniel
Priority Data
102023212748.2
14.12.2023
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1938 | |
| EPO | Filing, Examination, Granting | 8113 | |
| Japan | Filing, Examination, Granting | 2061 | |
| South Korea | Filing, Examination, Granting | 1883 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
18,735
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[German]
Die vorliegende Erfindung betrifft eine Einspritz- bzw. Einblasanlage mit zumindest einem Ventil (2) zum Zumessen eines Fluids, insbesondere einem Kraftstoffeinblasventil zum Einblasen eines gasförmigen Kraftstoffs in einen Brennraum (3) einer Brennkraftmaschine. Das Ventil (2) besitzt ein zulaufseitiges Ventilende (5), das den zulaufseitigen Einlass für das Fluid bildet. Außerdem hat das Ventil (2) ein abströmseitiges, einem Brennraum (3) zugewandtes Ventilende (6), wobei das Ventil (2) in einer Längsbohrung (35) eines Zylinderkopfes (10) einbaubar ist, und ein erster oberer Lagerbereich des Ventils (2) an dessen zulaufseitigen Ventilende (5) und ein zweiter unterer Lagerbereich des Ventils (2) an dessen abströmseitigen Ventilende (6) in der Längsbohrung (35) vorgesehen sind, wobei der obere Lagerbereich des Ventils (2) wenigstens eine sphärische Lagerung umfasst und keine axiale Auflage für das Ventil (2) in der Längsbohrung (35) vorliegt. Das so "frei hängende" Ventil (2) weist im oberen Lagerbereich eine Spannpratze (11) auf, die zur Bildung einer sphärischen Lagerung sphärisch ausgebildete Kontaktabschnitte (41) aufweisende Niederhaltearme (27) besitzt, die mit dem Ventil (2) an dessen zulaufseitigen Ventilende (5) korrespondieren.[English]

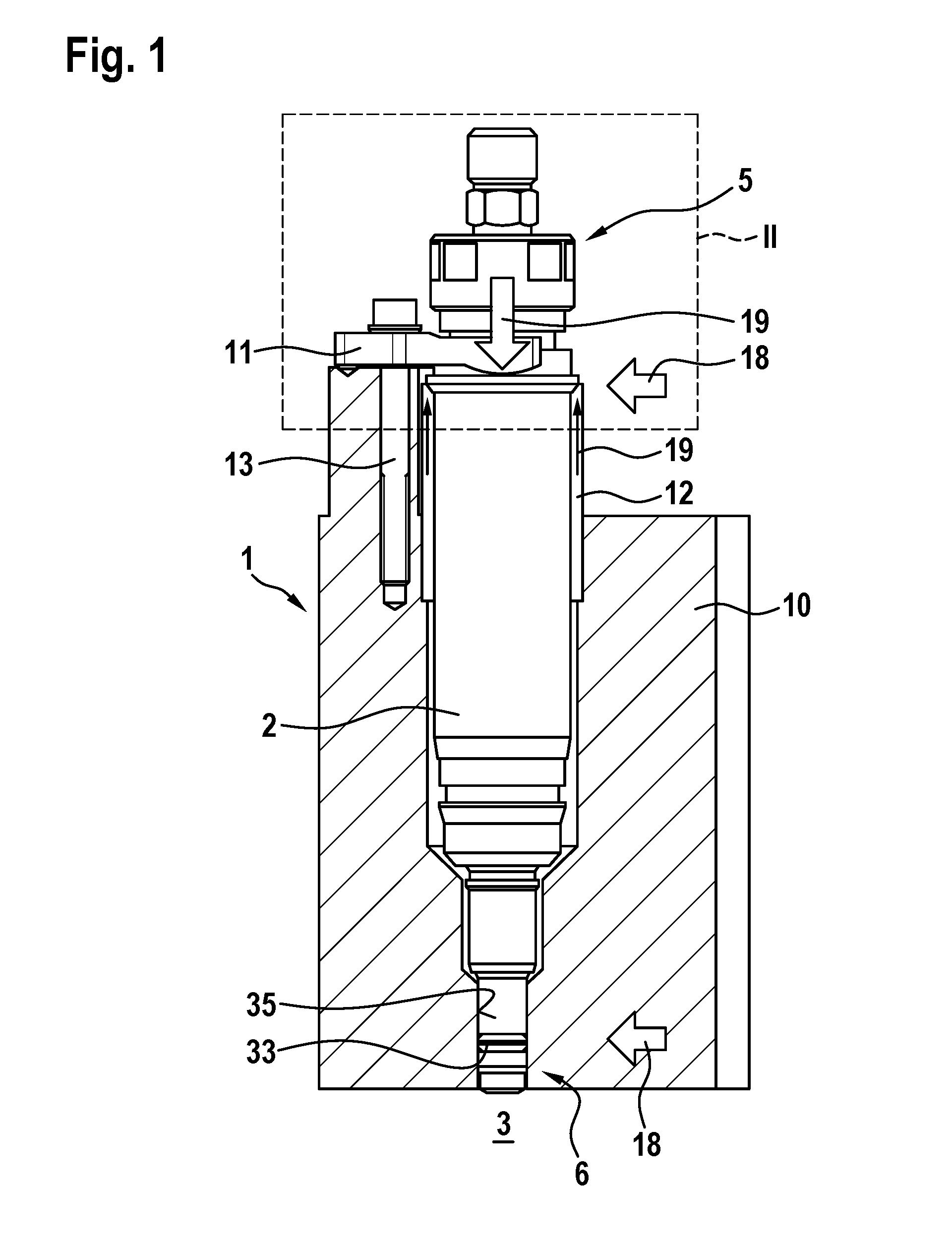

The present invention relates to an injection system having at least one valve (2) for metering a fluid, in particular a fuel injection valve for injecting a gaseous fuel into a combustion chamber (3) of an internal combustion engine. The valve (2) has an inflow-side valve end (5) that forms the inflow-side inlet for the fluid. The valve (2) additionally has an outflow-side valve end (6) facing a combustion chamber (3), wherein the valve (2) can be installed in a longitudinal bore (35) of a cylinder head (10), and a first upper bearing region of the valve (2) is provided at its inflow-side valve end (5) and a second lower bearing region of the valve (2) is provided at its outflow-side valve end (6) in the longitudinal bore (35), wherein the upper bearing region of the valve (2) comprises at least one spherical bearing and there is no axial support for the valve (2) in the longitudinal bore (35). The valve (2) 'freely suspended' in this way has a clamping claw (11) in the upper bearing region, which has spherically formed contact sections (41) with hold-down arms (27) to form a spherical bearing, which correspond with the valve (2) at its inflow-side valve end (5).[French]
La présente invention concerne un système d'injection ayant au moins une soupape (2) pour doser un fluide, en particulier une soupape d'injection de combustible pour injecter un combustible gazeux dans une chambre de combustion (3) d'un moteur à combustion interne. La soupape (2) a une extrémité de soupape côté flux entrant (5) qui forme l'entrée côté flux entrant pour le fluide. La soupape (2) comporte en outre une extrémité de soupape côté flux sortant (6) faisant face à une chambre de combustion (3), la soupape (2) pouvant être installée dans un alésage longitudinal (35) d'une culasse (10), et une première région de palier supérieure de la soupape (2) étant disposée à son extrémité de soupape côté flux entrant (5) et une seconde région de palier inférieure de la soupape (2) étant disposée à son extrémité de soupape côté flux sortant (6) dans l'alésage longitudinal (35), la région de palier supérieure de la soupape (2) comprenant au moins un palier sphérique et il n'y a pas de support axial pour la soupape (2) dans l'alésage longitudinal (35). La soupape (2) ainsi "suspendue librement" comporte une griffe de serrage (11) dans la région de palier supérieure, qui a des sections de contact formées de manière sphérique (41) avec des bras de maintien (27) pour former un palier sphérique, qui correspondent à la soupape (2) à son extrémité de soupape côté flux entrant (5).
