WO2025008340 - RODENT BLOCKING MEMBER AND OVERHEAD DOOR SYSTEM COMPRISING A RODENT BLOCKING MEMBER
National phase entry:
Publication Number
WO/2025/008340
Publication Date
09.01.2025
International Application No.
PCT/EP2024/068585
International Filing Date
02.07.2024
Title **
[English]
RODENT BLOCKING MEMBER AND OVERHEAD DOOR SYSTEM COMPRISING A RODENT BLOCKING MEMBER
[French]
ÉLÉMENT DE BLOCAGE DE RONGEURS ET SYSTÈME DE PORTE BASCULANTE COMPRENANT UN ÉLÉMENT DE BLOCAGE DE RONGEURS
Applicants **
ASSA ABLOY ENTRANCE SYSTEMS AB
Box 131
261 22 LANDSKRONA, SE
Inventors
BOETERS, Toby
Schone van Boskoopgaarde 19
3824 AD Amersfoort, NL
VAN DEN HAZEL, Bert
Potgieterstraat 37
3881 Putten, NL
Priority Data
2330307-6
03.07.2023
SE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1439 | |
| EPO | Filing, Examination | 8487 | |
| Japan | Filing | 589 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 3910 |
Total: 15000 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

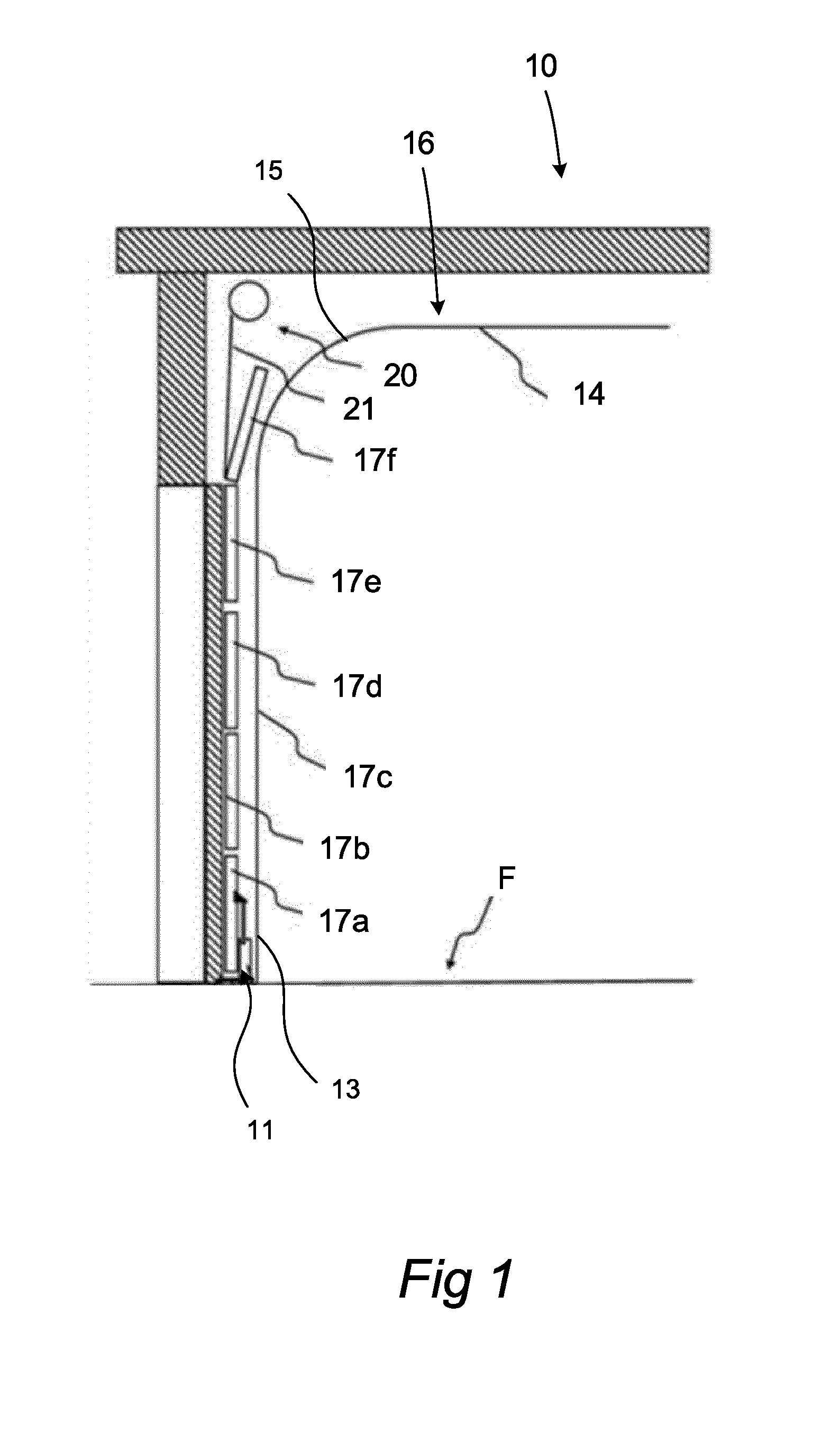

A rodent blocking member (100) for an overhead door arrangement (10), the overhead door arrangement (10) comprising a door leaf (11) adapted to be arranged at an opening in a wall (W), the door leaf (11) comprising one or more door panel section (17a-f) being movable between a vertical closed position and a horizontal, opened or overhead position within a side frame (16), the overhead door arrangement (10) comprising a side seal (56) arranged to extend along a vertical side of the opening when the door leaf (11) is in the vertical closed position to seal between the door leaf (11) and said vertical side of the opening, wherein the rodent blocking member (100) is adapted to be arranged at a bottom corner (C) at a floor (F) of the opening at least when the door leaf (11) is in the vertical closed position.[French]
La présente invention concerne un élément de blocage de rongeurs (100) pour un agencement de porte basculante (10), l'agencement de porte basculante (10) comprenant un battant de porte (11) conçu pour être disposé au niveau d'une ouverture dans une paroi (W), le battant de porte (11) comprenant une ou plusieurs sections panneaux de porte (17a-f) qui sont mobiles entre une position fermée verticale et une position horizontale, ouverte ou aérienne à l'intérieur d'un cadre latéral (16), l'agencement de porte basculante (10) comprenant un joint latéral (56) agencé pour s'étendre le long d'un côté vertical de l'ouverture lorsque le battant de porte (11) est dans la position fermée verticale pour assurer l'étanchéité entre le battant de porte (11) et ledit côté vertical de l'ouverture, l'élément de blocage de rongeurs (100) étant conçu pour être disposé au niveau d'un coin inférieur (C) au niveau d'un plancher (F) de l'ouverture au moins lorsque le battant de porte (11) est dans la position fermée verticale.
