WO2024200463 - TORSION SPRING TENSIONING TOOL
National phase entry:
Publication Number
WO/2024/200463
Publication Date
03.10.2024
International Application No.
PCT/EP2024/058147
International Filing Date
26.03.2024
Title **
[English]
TORSION SPRING TENSIONING TOOL
[French]
OUTIL DE TENSION DE RESSORT DE TORSION
Applicants **
ASSA ABLOY ENTRANCE SYSTEMS AB
Box 131
261 22 LANDSKRONA, SE
Inventors
VAN DEN HAZEL, Bert
Potgieterstraat 37
3881 WL Putten, NL
BOETERS, Toby
Schone van Boskoopgaarde 19
3824 AD Amersfoort, NL
WENSING, Paul
Laan '40-'45 29
3931 CR Woudenberg, NL
Priority Data
2330138-5
28.03.2023
SE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1390 | |
| EPO | Filing, Examination | 6766 | |
| Japan | Filing | 531 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2635 |
Total: 11897 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

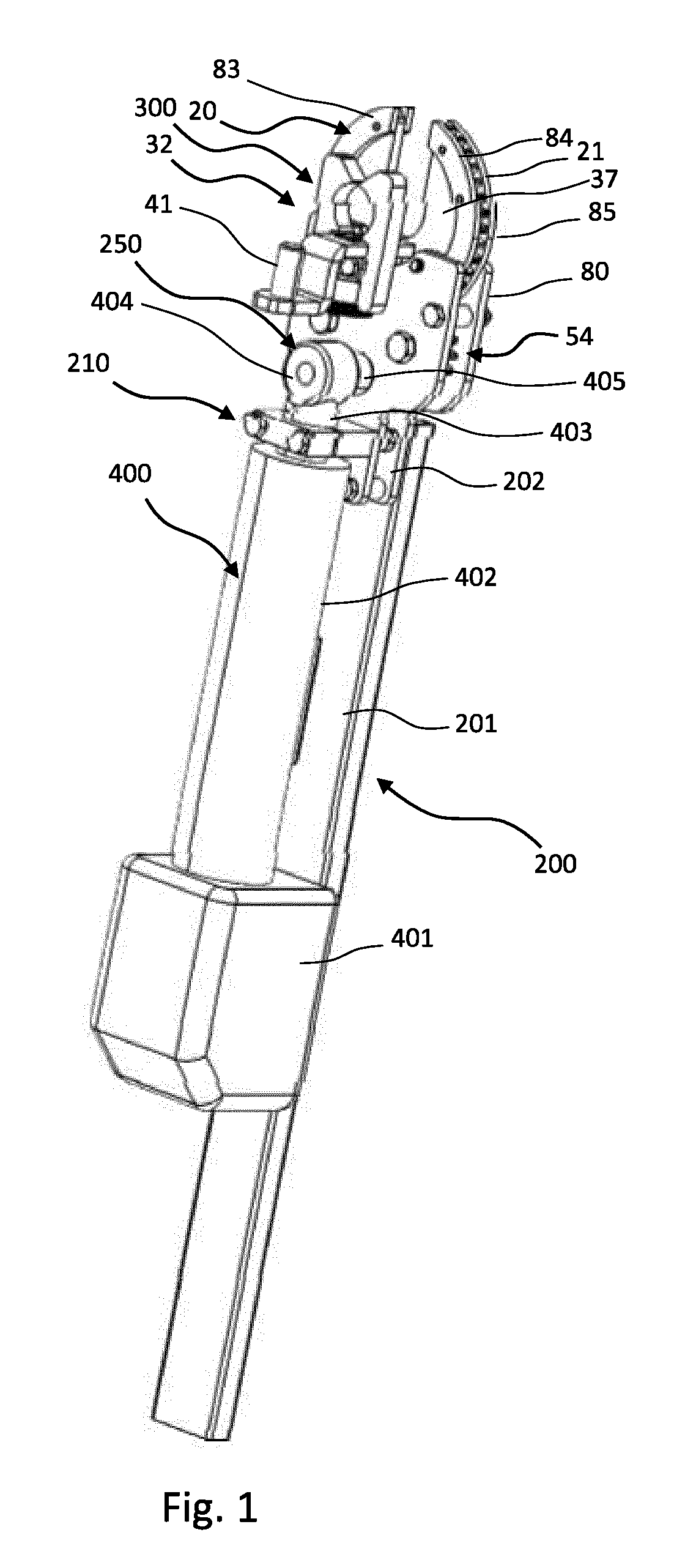

ASSA ABLOY Entrance Systems AB has developed torsion spring tensioning tool (100) for tensioning a torsion spring of a counterbalancing mechanism of an overhead door, wherein the torsion spring tensioning tool (100) comprises a housing (80), a gear wheel arrangement (20) adapted to be mounted on a shaft (1001) of the counterbalancing mechanism, said gear wheel arrangement (20) comprising a gear wheel (21) rotatably arranged in the housing (80), the torsion spring tensioning tool (100) further comprising a gear mechanism (54) coupled to the gear wheel (21) for rotating said gear wheel (21). The torsion spring tensioning tool (100) further comprises a gripping arrangement (300) adapted to releasably engage the shaft (1001) of the counterbalancing mechanism by means of gripping said shaft (1001) of the counterbalancing mechanism.[French]
L'invention concerne un outil de tension de ressort de torsion (100), élaboré par ASSA ABLOY Entrance Systems AB, destiné à tendre un ressort de torsion d'un mécanisme d'équilibrage d'une porte basculante, l'outil de tension de ressort de torsion (100) comprenant un logement (80), un agencement de roue d'engrenage (20) conçu pour être monté sur un arbre du mécanisme d'équilibrage, ledit agencement de roue d'engrenage (20) comprenant une roue d'engrenage (21) agencée en rotation dans le logement (80), l'outil de tension de ressort de torsion (100) comprenant en outre un mécanisme d'engrenage (54) couplé à la roue d'engrenage (21) pour faire tourner ladite roue d'engrenage (21). L'outil de tension de ressort de torsion (100) comprend en outre un agencement de préhension (300) conçu pour venir en prise de manière libérable avec l'arbre (1001) du mécanisme d'équilibrage au moyen de la préhension dudit arbre (1001) du mécanisme d'équilibrage.
