WO2024184513 - A SUBASSEMBLY OF A MEDICAMENT DELIVERY DEVICE
National phase entry:
Publication Number
WO/2024/184513
Publication Date
12.09.2024
International Application No.
PCT/EP2024/056178
International Filing Date
08.03.2024
Title **
[English]
A SUBASSEMBLY OF A MEDICAMENT DELIVERY DEVICE
[French]
SOUS-ENSEMBLE D'UN DISPOSITIF D'ADMINISTRATION DE MÉDICAMENT
Applicants **
SHL MEDICAL AG
Gubelstrasse 22, PO Box 7710
6302 Zug, CH
Inventors
MÜLLER, Stephan
PO Box 7710, Gubelstrasse 22
6302 Zug, CH
ZANDER, René
Gubelstrasse 22, PO Box 7710
6302 Zug, CH
NAEGELI, Felix
No 36 Liufu Rd, Luzhu District
Taoyuan, 338, TW
Priority Data
23160765.6
08.03.2023
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1734 | |
| EPO | Filing, Examination | 11289 | |
| Japan | Filing | 535 | |
| South Korea | Filing | 576 | |
| USA | Filing, Examination | 6035 |
Total: 20169 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

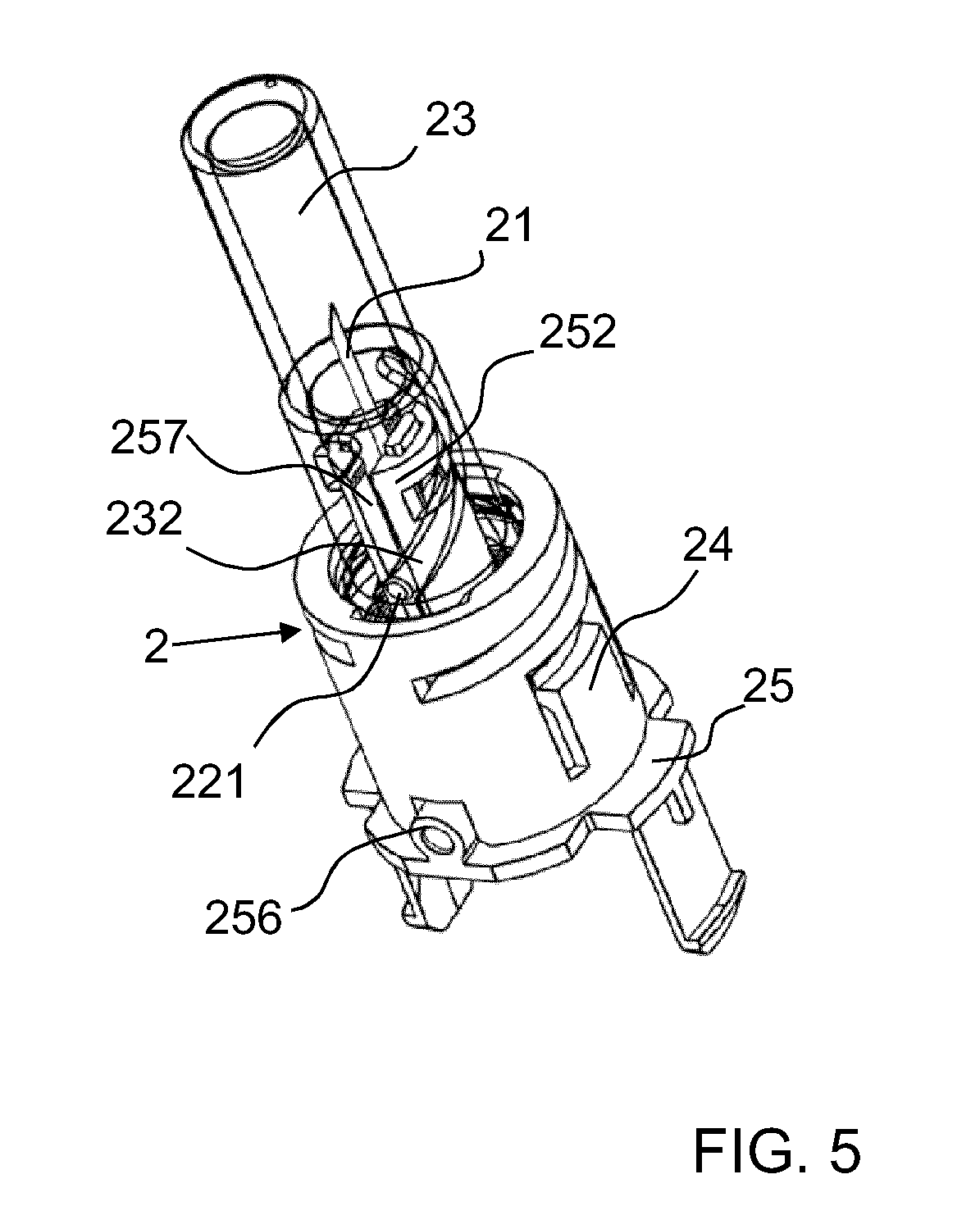

A subassembly (2) of a medicament delivery device (1) comprises a hub (22), which is adapted to displace a piercing element (212) from a first position distant from a membrane (82) of a medicament container (8) to a second position, in which the membrane (82) is pierced by the piercing element (212), such that the medicament container (2) is fluidly connected to a medicament delivery element (211) of the subassembly (2). A first guide structure (221) of the hub (22) and a second guide structure (232) of a cap (23) for covering the medicament delivery element (211) are adapted to engage with each other in such a way that a rotation of the cap (23) about a longitudinal axis (235) results in a displacement of the hub (22) along the longitudinal axis (235) and of the piercing element (212) from the first position to the second position.[French]
Un sous-ensemble (2) d'un dispositif d'administration de médicament (1) comprend un moyeu (22), qui est conçu pour déplacer un élément de perçage (212) d'une première position distante d'une membrane (82) d'un récipient de médicament (8) à une seconde position, dans laquelle la membrane (82) est percée par l'élément de perçage (212), de telle sorte que le récipient de médicament (2) est en communication fluidique avec un élément d'administration de médicament (211) du sous-ensemble (2). Une première structure de guidage (221) du moyeu (22) et une seconde structure de guidage (232) d'un capuchon (23) pour recouvrir l'élément d'administration de médicament (211) sont conçues pour venir en prise l'une avec l'autre de telle sorte qu'une rotation du capuchon (23) autour d'un axe longitudinal (235) entraîne un déplacement du moyeu (22) le long de l'axe longitudinal (235) et de l'élément de perçage (212) de la première position à la seconde position.
