WO2024175693 - ROTOR MIT SCHRÄGUNG SOWIE VERFAHREN ZUR HERSTELLUNG DES ROTORS

National phase entry is expected:
Publication Number WO/2024/175693
Publication Date 29.08.2024
International Application No. PCT/EP2024/054479
International Filing Date 22.02.2024
Title **
[German] ROTOR MIT SCHRÄGUNG SOWIE VERFAHREN ZUR HERSTELLUNG DES ROTORS
[English] ROTOR WITH AN INCLINATION, AND METHOD FOR PRODUCING THE ROTOR
[French] ROTOR À INCLINAISON, ET PROCÉDÉ DE PRODUCTION DU ROTOR
Applicants **
ZF FRIEDRICHSHAFEN AG
Inventors
WESA, Matthias
NEIDHARDT, Philipp
Priority Data
102023201706.7   24.02.2023   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting2070
EPO Filing, Examination, Granting8838
Japan Filing, Examination, Granting2218
South Korea Filing, Examination, Granting2197
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 20,063

The term for entry into the National Phase has expired. This quotation is for informational purposes only

Contact Us

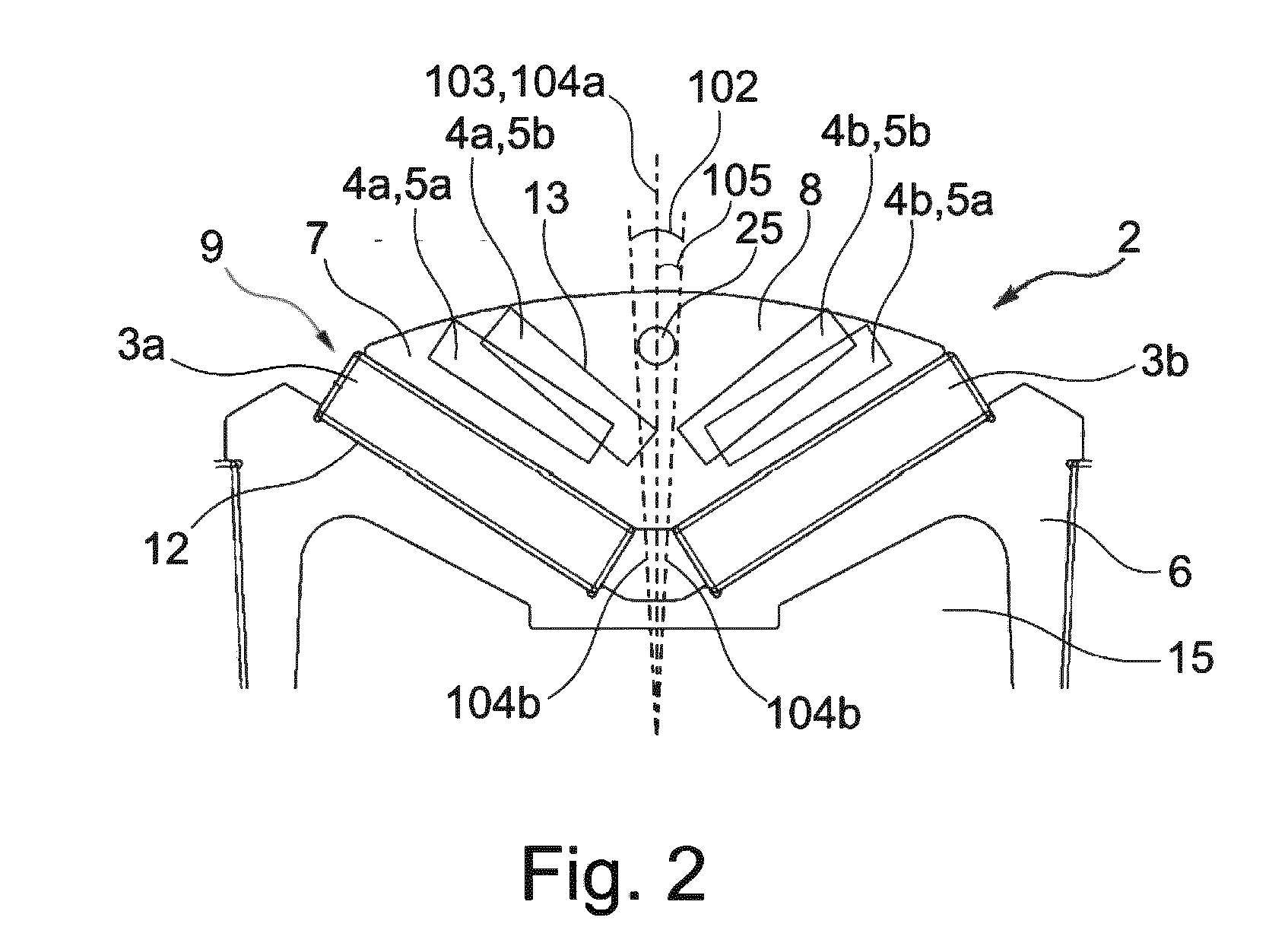

Abstract[German] Es wird ein Rotor (1) für eine elektrische Maschine, mit mehreren in Umfangsrichtung verteilten Rotorpolen (2), welche jeweils mindestens eine innere Magneteinheit (3a), (3b) und mindestens eine äußere Magneteinheit (4a,) (4b) aufweisen, mit mindestens zwei Teilblechpaketen (5a), (5b), wobei jedes Teilblechpaket (5a), (5b) einen Blechkern (6) sowie mehrere Einlegesegmente (7) umfasst, wobei der Blechkern (6) je Rotorpol (2) eine radial nach außen geöffnete Segmentaufnahme (9) zur Aufnahme jeweils eines Einlegesegmentes (7) aufweist, wobei der Blechkern (6) je Rotorpol (2) eine innere Magnetaufnahme (12) zur Aufnahme der inneren Magneteinheit (3a), (3b) und jedes Einlegesegment (7) eine äußere Magnetaufnahme (13) zur Aufnahme der äußeren Magneteinheit (3a), (3b) aufweist, und mit einer die Teilblechpakete (5a), (5b) umschließenden Bandage (14), über welche die Einlegesegmente (7) in der jeweiligen Segmentaufnahme (9) gehalten sind, vorgeschlagen, wobei die inneren Magneteinheiten (3a), (3b) und/oder die äußeren Magneteinheiten (4a), (4b) zweier benachbarter Teilblechpakete (5a), (5b) in Umfangsrichtung um einen Schrägungswinkel (102) versetzt angeordnet sind.[English] The invention relates to a rotor (1) for an electric machine, comprising multiple rotor poles (2), which are distributed in the circumferential direction and each of which has at least one inner magnet unit (3a), (3b) and at least one outer magnet unit (4a), (4b), and at least two lamination sub-stack (5a), (5b), each lamination sub-stack (5a), (5b) comprising a laminated core (6) and a plurality of insert segments (7), wherein for each rotor pole (2), the laminated core (6) has a segment receiving area (9) which is open radially outwards for receiving a respective insert segment (7); for each rotor pole (2), the laminated core (6) has an inner magnet receiving area (12) for receiving the inner magnet unit (3a), (3b); and each insert segment (7) has an outer magnet receiving area (13) for receiving the outer magnet unit (3a), (3b). The rotor also comprises a band (14) which surrounds the lamination sub-stacks (5a), (5b) and via which the insert segments (7) are held in the respective segment receiving area (9). According to the invention, the inner magnet units (3a), (3b) and/or the outer magnet units (4a), (4b) of two adjacent lamination sub-stacks (5a), (5b) are offset by an inclination angle (102) in the circumferential direction.[French] L'invention concerne un rotor (1) pour une machine électrique, comprenant de multiples pôles de rotor (2), qui sont répartis dans la direction circonférentielle et dont chacun a au moins une unité d'aimant interne (3a), (3b) et au moins une unité d'aimant externe (4a), (4b), et au moins deux sous-empilement de stratification (5a), (5b), chaque sous-empilement de stratification (5a), (5b) comprenant un noyau stratifié (6) et une pluralité de segments d'insert (7), pour chaque pôle de rotor (2), le noyau stratifié (6) ayant une zone de réception de segment (9) qui est ouverte radialement vers l'extérieur pour recevoir un segment d'insert respectif (7) ; pour chaque pôle de rotor (2), le noyau stratifié (6) ayant une zone de réception d'aimant interne (12) pour recevoir l'unité d'aimant interne (3a), (3b) ; et chaque segment d'insert (7) a une zone de réception d'aimant externe (13) pour recevoir l'unité d'aimant externe (4a), (4b). Le rotor comprend également une bande (14) qui entoure les sous-empilements de stratification (5a), (5b) et via laquelle les segments d'insert (7) sont maintenus dans la zone de réception de segment (9) respective. Selon l'invention, les unités d'aimant interne (3a), (3b) et/ou les unités d'aimant externe (4a), (4b) de deux sous-empilements de stratification (5a), (5b) adjacents sont décalées selon un angle d'inclinaison (102) dans la direction circonférentielle.
