WO2024160664 - INDUKTIONSKOCHFELDVORRICHTUNG
National phase entry is expected:
Publication Number
WO/2024/160664
Publication Date
08.08.2024
International Application No.
PCT/EP2024/051869
International Filing Date
26.01.2024
Title **
[German]
INDUKTIONSKOCHFELDVORRICHTUNG
[English]
INDUCTION HOB DEVICE
[French]
DISPOSITIF DE TABLE DE CUISSON À INDUCTION
Applicants **
BSH HAUSGERÄTE GMBH
Carl-Wery-Str. 34
81739 München, DE
Inventors
PUYAL PUENTE, Diego
Valle de Zuriza, 25 - Esc. 7, 6ºB
50014 Zaragoza, ES
BLASCO RUEDA, Nicolas
Calle Pintor Marín Bagües nº 5, 5ºC
50007 Zaragoza, ES
ACEVEDO SIMON, Arturo
C/ Asin y Palacios, 28A, 8A
50009 Zaragoza, ES
ESPAÑOL LEZA, Jorge
C/ Calvo de Rozas, nº 13
50009 Zaragoza, ES
VILLA LOPEZ, Jorge
Pasaje del Carmen: nº 3 2ºA
22700 Jaca (Huesca), ES
Priority Data
23382087.7
01.02.2023
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1090 | |
| EPO | Filing, Examination | 4747 | |
| Japan | Filing | 590 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2710 |

Total: 9712 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[German]
Die Erfindung geht aus von einer Induktionskochfeldvorrichtung (10) mit zumindest einem Bus-Kondensator (12), mit zumindest einem Gleichrichter (14) und mit einem Netzanschluss (16) zur Verbindung mit einem Stromversorgungsnetz, wobei der Bus-Kondensator (12) über zumindest einen ersten Ladepfad (18) zum Aufladen während eines positiven Netzspannungsteilzyklus und über zumindest einen zweiten Ladepfad zum Aufladen während eines negativen Netzspannungsteilzyklus über den Gleichrichter (14) mit dem Netzanschluss (16) verbunden ist. Um eine Effizienz zu verbessern wird vorgeschlagen, dass die Induktionskochfeldvorrichtung (10) eine Entladungseinheit (22) aufweist, welche zumindest zwei Schaltelemente (24, 26) zum zeitweisen Entladen des Bus-Kondensators (12) über das Stromversorgungsnetz umfasst, wobei eines der Schaltelemente (24) als ein Highside-Schaltelement (28) und eines der Schaltelemente (26) als ein Lowside-Schaltelement (30) ausgebildet ist und die Schaltelemente (24, 36) dazu vorgesehen sind, in einem geschlossenen Zustand einen Entladungspfad (32) von dem Bus-Kondensator (12) zurück zu dem Netzanschluss (16) freizuschalten und dass die Induktionskochfeldvorrichtung (10) eine Treibereinheit (34) zur Steuerung der Entladungseinheit (22) umfasst, welche einen Highside-Treiber (36) zur Steuerung des Highside-Schaltelements (28) und eine Bootstrap-Schaltung (38) zur Energieversorgung des Highside-Treibers (36) aufweist.[English]

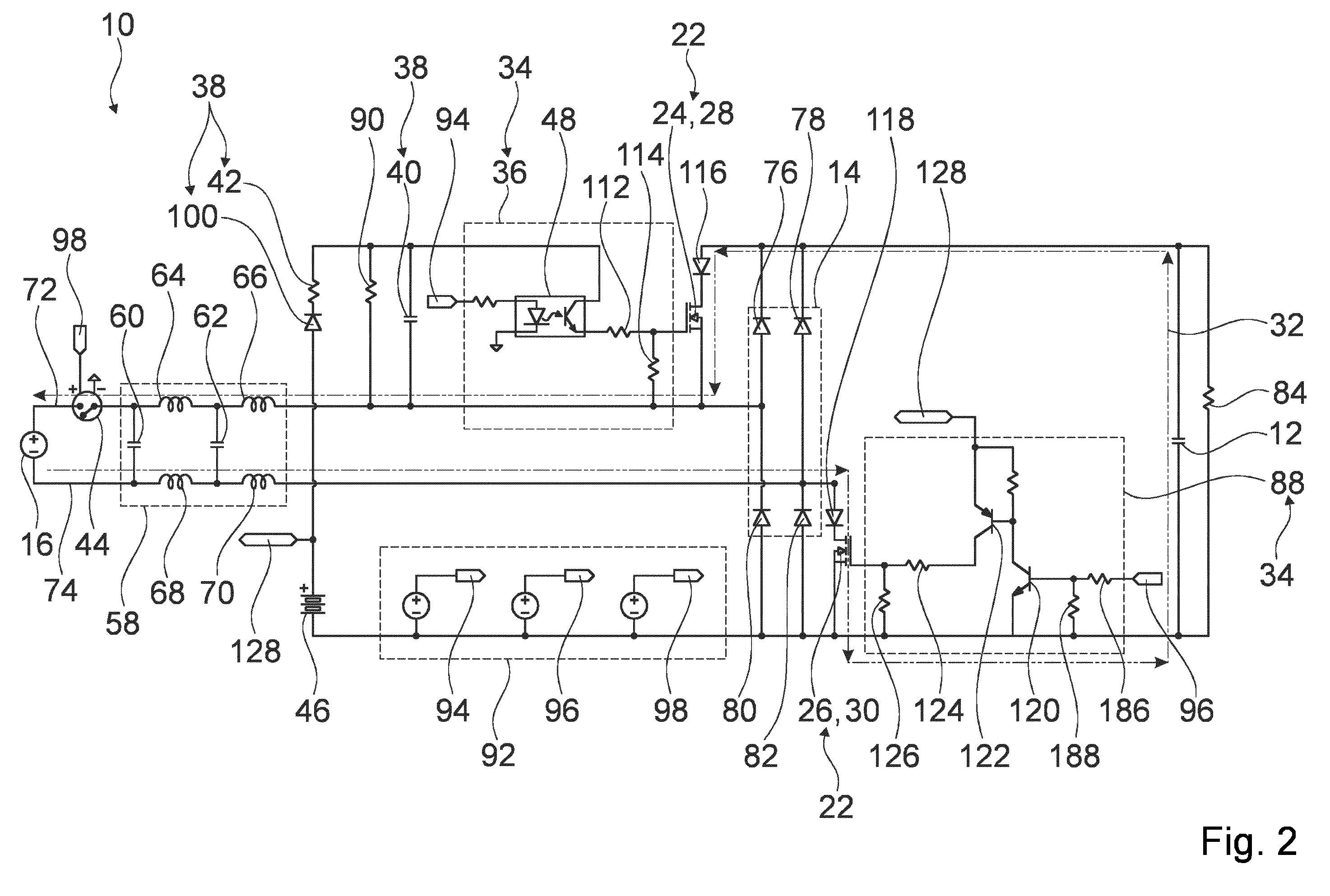

The invention relates to an induction hob device (10) comprising at least one bus capacitor (12), at least one rectifier (14) and a mains connection (16) for connecting to a power supply network, wherein the bus capacitor (12) is connected to the mains connection (16) via at least one first charging path (18) for charging during a positive mains voltage sub-cycle and via at least one second charging path for charging during a negative mains voltage sub-cycle via the rectifier (14). According to the invention, in order to improve efficiency, the induction hob device (10) has a discharge unit (22) which comprises at least two switch elements (24, 26) for periodically discharging the bus capacitor (12) via the power supply network, wherein one of the switch elements (24) is in the form of a high-side switch element (28) and one of the switch elements (26) is in the form of a low-side switch element (30), and the switch elements (24, 36) are provided for releasing a discharge path (32) from the bus capacitor (12) back to the mains connection (16) in a closed state, and the induction hob device (10) comprises a driver unit (34) for controlling the discharge unit (22), which has a high-side driver (36) for controlling the high-side switch element (28) and a bootstrap circuit (38) for supplying power to the high-side driver (36).[French]
L'invention concerne un dispositif de table de cuisson à induction (10) comprenant au moins un condensateur de bus (12), au moins un redresseur (14) et une connexion de réseau (16) pour la connexion à un réseau d'alimentation électrique, le condensateur de bus (12) étant connecté à la connexion de réseau (16) par l'intermédiaire d'au moins un premier trajet de charge (18) pour la charge pendant un sous-cycle de tension de réseau positive et par l'intermédiaire d'au moins un second trajet de charge pour la charge pendant un sous-cycle de tension de réseau négative par l'intermédiaire du redresseur (14). Selon l'invention, afin d'améliorer l'efficacité, le dispositif de table de cuisson à induction (10) comprend une unité de décharge (22) qui comprend au moins deux éléments de commutation (24, 26) pour décharger périodiquement le condensateur de bus (12) par l'intermédiaire du réseau d'alimentation électrique, l'un des éléments de commutation (24) se présentant sous la forme d'un élément de commutation côté haut (28) et l'un des éléments de commutation (26) se présentant sous la forme d'un élément de commutation côté bas (30), et les éléments de commutation (24, 36) étant conçus pour libérer un trajet de décharge (32) du condensateur de bus (12) vers la connexion au réseau (16) à l'état fermé, et le dispositif de table de cuisson à induction (10) comprenant une unité de commande (34) pour commander l'unité de décharge (22), qui comporte un circuit d'attaque côté haut (36) pour commander l'élément de commutation côté haut (28) et un circuit d'amorçage (38) pour alimenter en électricité le circuit d'attaque côté haut (36).
