WO2024188520 - PEDALGEFÜHLSIMULATOR FÜR EINE HYDRAULISCHE FAHRZEUGBREMSANLAGE
National phase entry:
Publication Number
WO/2024/188520
Publication Date
19.09.2024
International Application No.
PCT/EP2024/051721
International Filing Date
25.01.2024
Title **
[German]
PEDALGEFÜHLSIMULATOR FÜR EINE HYDRAULISCHE FAHRZEUGBREMSANLAGE
[English]
PEDAL FEEL SIMULATOR FOR A HYDRAULIC VEHICLE BRAKE SYSTEM
[French]
SIMULATEUR DE SENSATION DE PÉDALE DESTINÉ À UN SYSTÈME DE FREINAGE HYDRAULIQUE DE VÉHICULE
Applicants **
ROBERT BOSCH GMBH
Inventors
HAGSPIEL, Martin
WEH, Andreas
Priority Data
102023202311.3
15.03.2023
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1872 | |
| EPO | Filing, Examination, Granting | 8126 | |
| Japan | Filing, Examination, Granting | 2024 | |
| South Korea | Filing, Examination, Granting | 1719 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,481
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[German]
Bei einem Pedalgefühlsimulator (14) für eine hydraulische Fahrzeugbremsanlage, mit einem Zylinder (18), in dem ein Kolben (26) axial verschiebbar aufgenommen ist, einem Deckel (24), mit dem ein offenes Stirnende (22) des Zylinders (18) verschlossen ist, einem zu dem Deckel (24) gehörigen ersten Federelement (42), einem zu dem Kolben (26) gehörigen zweiten Federelement (66) und einer zu dem Kolben (26) gehöriger Federkopplung (82), mittels derer das zweite Federelement (66) mit dem Kolben (26) gekoppelt und axial an dem ersten Federelement (42) abgestützt ist, weist die Federkopplung (82) stirnseitig ein zum ersten Federelement (42) gewandtes Abstandselement (84) auf, das in einer Ruheposition von dem zweiten Federelement (66) axial überragend und in einer Belastungsposition axial bündig mit dem zweiten Federelement (66) gestaltet ist.[English]

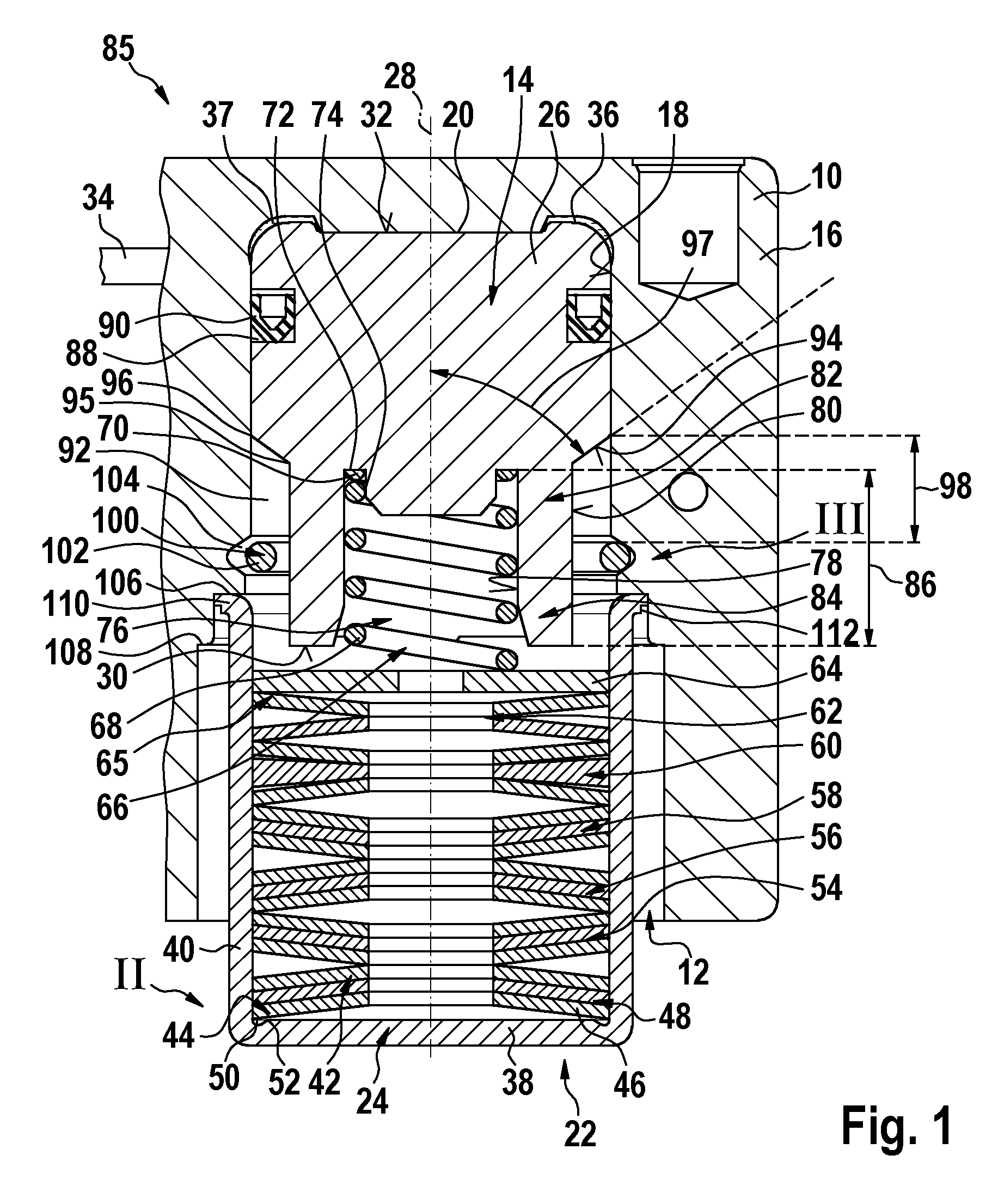

The invention relates to a pedal feel simulator (14) for a hydraulic vehicle brake system, comprising a cylinder (18) in which a piston (26) is axially displaceably accommodated, a cover (24) with which an open end (22) of the cylinder (18) is closed, a first spring element (42) associated with the cover (24), a second spring element (66) associated with the piston (26), and a spring coupling (82) associated with the piston (26) and by means of which the second spring element (66) is coupled to the piston (26) and supported axially against the first spring element (42). The spring coupling (82) has at its end a spacer element (84) which faces the first spring element (42) and is configured to protrude axially from the second spring element (66) in a rest position and to be axially flush with the second spring element (66) in a load position.[French]
L'invention se rapporte à un simulateur de sensation de pédale (14) destiné à un système de freinage hydraulique de véhicule, comprenant un cylindre (18) dans lequel un piston (26) est logé déplaçable axialement, un couvercle (24) grâce auquel une extrémité ouverte (22) du cylindre (18) est fermée, un premier élément ressort (42) associé au couvercle (24), un second élément ressort (66) associé au piston (26), et un accouplement à ressort (82) associé au piston (26) et au moyen duquel le second élément ressort (66) est accouplé au piston (26) et supporté axialement contre le premier élément ressort (42). L'accouplement à ressort (82) comporte à son extrémité un élément d'espacement (84) qui fait face au premier élément ressort (42) et est conçu pour faire saillie axialement depuis le second élément ressort (66) dans une position de repos et pour être aligné axialement avec le second élément ressort (66) dans une position de charge.
