WO2024175256 - AXIALFOLIENLAGER
National phase entry is expected:
Publication Number
WO/2024/175256
Publication Date
29.08.2024
International Application No.
PCT/EP2024/050099
International Filing Date
03.01.2024
Title **
[German]
AXIALFOLIENLAGER
[English]
AXIAL FOIL BEARING
[French]
PALIER À FEUILLES AXIAL
Applicants **
ROBERT BOSCH GMBH
Inventors
MAYER, Michael
FOERSTER, Felix
WIEDMANN, Felix
LANG, Thomas
Priority Data
102023201452.1
20.02.2023
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1893 | |
| EPO | Filing, Examination, Granting | 8746 | |
| Japan | Filing, Examination, Granting | 2059 | |
| South Korea | Filing, Examination, Granting | 1848 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,286
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[German]
Die Erfindung betrifft ein Axialfolienlager (61) mit mindestens einer Federfolie und mindestens einer Deckfolie (44), die zur Darstellung eines tragfähigen Fluidfilms in einem Lagerspalt mit einer in einer Umfangrichtung gestuften Struktur (8) versehen ist, die mindestens drei sich in Umfangsrichtung wiederholende Segmentübergänge (21,22;22,23;23,24;24,25;25,26;25,21) aufweist. Um das Axialfolienlager (61) im Hinblick auf seine maximale Tragkraft und/oder im Hinblick auf Reibungsverluste im Betrieb zu verbessern, ist zwischen zwei in Umfangsrichtung benachbarten Segmenten eines Segmentübergangs (21,22;22,23;23,24;24,25;25,26;25,21) jeweils eine Stufe (31-36) mit einer Stufenlinie (13) in einer logarithmischen Spiralform in der Deckfolie (44) ausgebildet.[English]

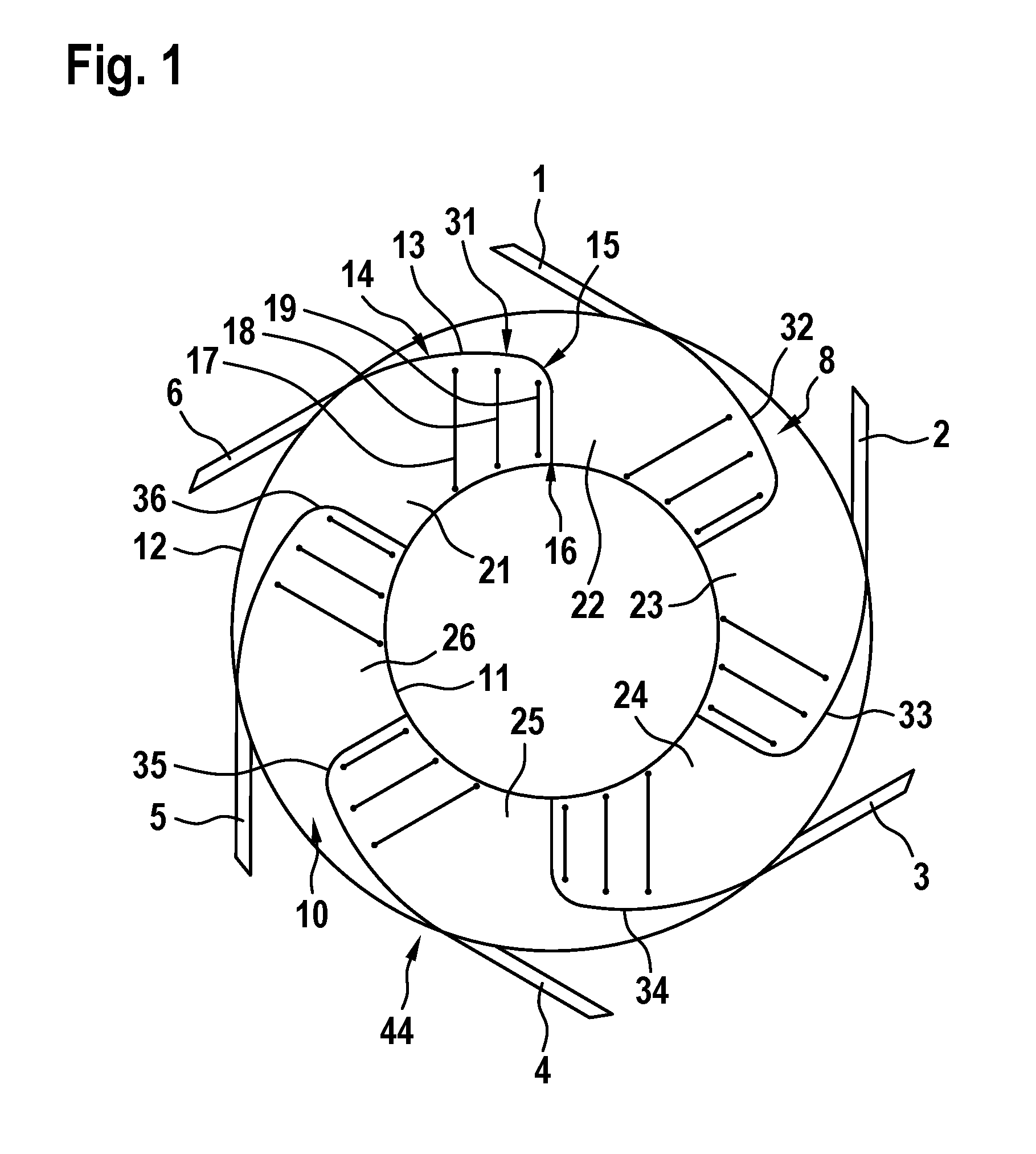

The invention relates to an axial foil bearing (61) comprising at least one spring foil and at least one cover foil (44) which is designed to constitute a load-bearing fluid film in a bearing gap, comprising a structure (8) which is stepped in the circumferential direction and which has at least three segment transitions (21,22;22,23;23,24;24,25;25,26;25,21) that repeat in the circumferential direction. In order to improve the axial foil bearing (61) with respect to the maximum load-bearing capacity thereof and/or with respect to frictional losses during operation, a respective step (31-36) with a step line (13) is formed in the cover foil (44) in a logarithmic spiral shape between two segments of a segment transition (21,22;22,23;23,24;24,25;25,26;25,21), said segments adjoining each other in the circumferential direction.[French]
L'invention concerne un palier à feuilles axial (61) comprenant au moins une feuille de ressort et au moins une feuille de couvercle (44) qui est conçue pour constituer un film de fluide porteur dans un espace de palier, comprenant une structure (8) qui est étagée dans la direction circonférentielle et qui comporte au moins trois transitions de segment (21, 22 ; 22, 23 ; 23, 24 ; 24, 25 ; 25, 26 ; 25, 21) qui se répètent dans la direction circonférentielle. Afin d'améliorer le palier à feuilles axial (61) en ce qui concerne sa capacité portante maximale et/ou des pertes par frottement pendant le fonctionnement, un étage respectif (31-36) avec une ligne étagée (13) est formée dans la feuille de couvercle (44) sous une forme de spirale logarithmique entre deux segments d'une transition de segment (21, 22 ; 22, 23 ; 23, 24 ; 24, 25 ; 25, 26 ; 25, 21), lesdits segments étant adjacents l'un à l'autre dans la direction circonférentielle.
