WO2024017619 - GAS COOKTOP AND IGNITION DEVICE FOR COOKTOP
National phase entry:
Publication Number
WO/2024/017619
Publication Date
25.01.2024
International Application No.
PCT/EP2023/068349
International Filing Date
04.07.2023
Title **
[English]
GAS COOKTOP AND IGNITION DEVICE FOR COOKTOP
[French]
TABLE DE CUISSON À GAZ ET DISPOSITIF D’ALLUMAGE POUR TABLE DE CUISSON
Applicants **
BSH HAUSGERÄTE GMBH
Inventors
XI, Qiongqiong
HOU, Huihui
Priority Data
202221860285.2
19.07.2022
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1938 | |
| EPO | Filing, Examination, Granting | 8126 | |
| Japan | Filing, Examination, Granting | 2062 | |
| South Korea | Filing, Examination, Granting | 1883 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,749
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

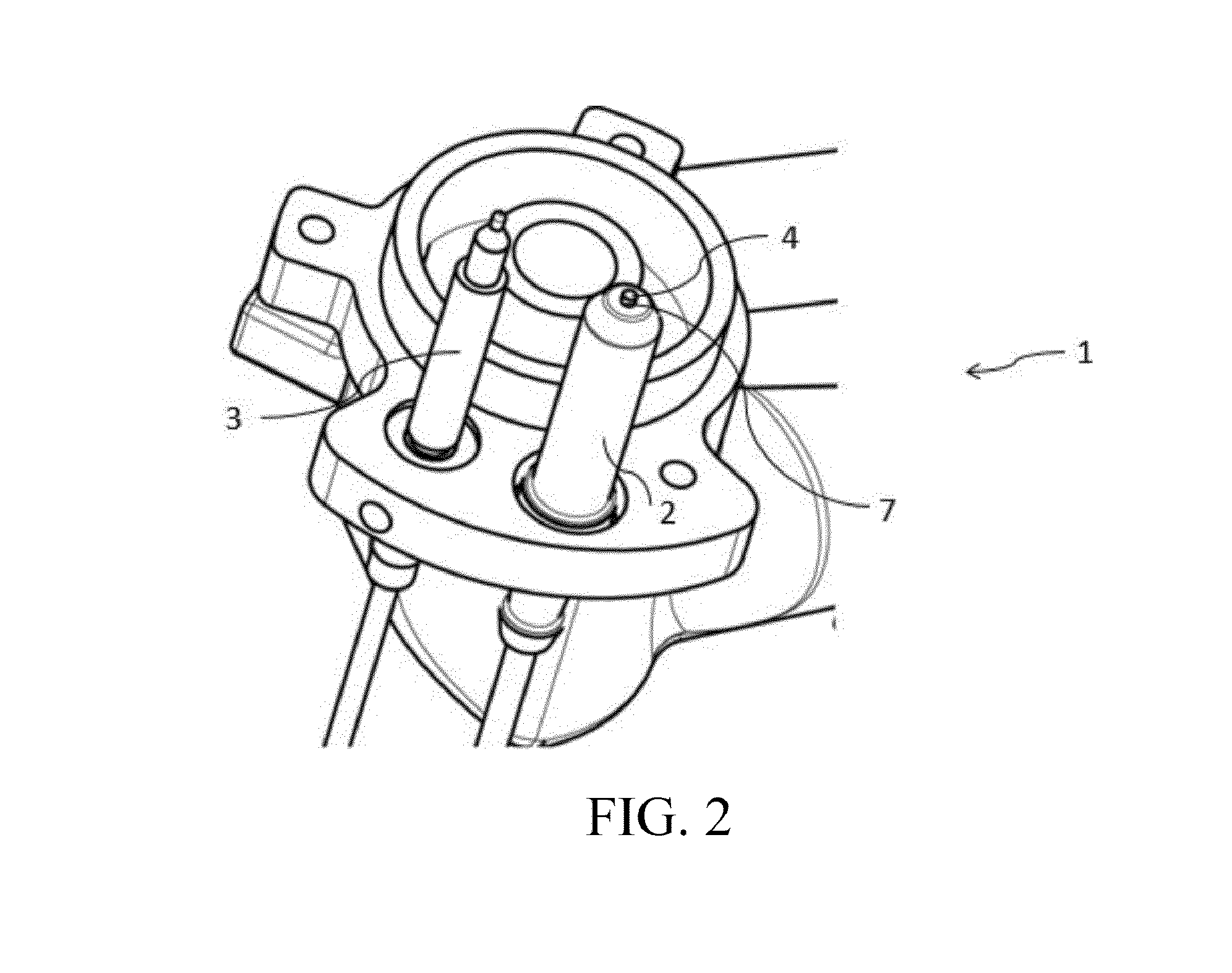

Embodiments of the present invention relate to a cooktop and an ignition device for a cooktop. The cooktop includes a burner and an ignition pin and a thermocouple located near the burner. The ignition pin has a discharge terminal. The ignition terminal is configured to ignite gas emitted from the burner. The thermocouple is used as a receiving terminal during discharging of the ignition pin. During ignition, electric sparks or continuous electric arcs are generated between the discharge terminal and the thermocouple to ignite the gas emitted from the burner. The discharge terminal of the ignition pin performs discharging toward the thermocouple, so that during ignition, a stable ignition circuit is formed among the ignition pin, the thermocouple, and a valve after a switch knob is pressed, and electric sparks or continuous electric arcs are generated between the discharge terminal and the thermocouple to ignite the gas emitted from the burner, which improves the ignition efficiency and achieves rapid ignition.[French]
Des modes de réalisation de la présente invention concernent une table de cuisson et un dispositif d’allumage pour une table de cuisson. La table de cuisson comprend un brûleur et une broche d’allumage et un thermocouple situé à proximité du brûleur. La broche d’allumage comporte une borne de décharge. La borne d’allumage est configurée pour allumer le gaz délivré par le brûleur. Le thermocouple est utilisé en tant que borne de réception pendant la décharge de la broche d’allumage. Pendant l’allumage, des étincelles électriques ou des arcs électriques continus sont générés entre la borne de décharge et le thermocouple pour allumer le gaz délivré par le brûleur. La borne de décharge de la broche d’allumage effectue une décharge vers le thermocouple, de sorte que pendant l’allumage, un circuit d’allumage stable est formé entre la broche d’allumage, le thermocouple et une vanne après la pression d’un bouton de commutation, et des étincelles électriques ou des arcs électriques continus sont générés entre la borne de décharge et le thermocouple pour allumer le gaz délivré par le brûleur, ce qui améliore l’efficacité d’allumage et réalise un allumage rapide.
