WO2023217463 - TERMINAL ASSEMBLY FOR A DIRECTIONALLY DEPENDENT SENSOR, DIRECTIONALLY DEPENDENT SENSOR, AND METHOD FOR MANUFACTURING THE TERMINAL ASSEMBLY
National phase entry:
Publication Number
WO/2023/217463
Publication Date
16.11.2023
International Application No.
PCT/EP2023/058887
International Filing Date
04.04.2023
Title **
[English]
TERMINAL ASSEMBLY FOR A DIRECTIONALLY DEPENDENT SENSOR, DIRECTIONALLY DEPENDENT SENSOR, AND METHOD FOR MANUFACTURING THE TERMINAL ASSEMBLY
[French]
ENSEMBLE BORNE DESTINÉ À UN CAPTEUR DÉPENDANT DE LA DIRECTION, CAPTEUR DÉPENDANT DE LA DIRECTION ET PROCÉDÉ DE FABRICATION DE L'ENSEMBLE BORNE
Applicants **
KNORR-BREMSE SYSTEME FÜR NUTZFAHRZEUGE GMBH
Inventors
KUMBHAR, Sagar
JAWARIKAR, Pravin
LECHNER, Klaus
ROHSE, Tobias
PALZER, Stefan
Priority Data
22172701.9
11.05.2022
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2039 | |
| EPO | Filing, Examination, Granting | 8736 | |
| Japan | Filing, Examination, Granting | 2215 | |
| South Korea | Filing, Examination, Granting | 2200 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,930
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

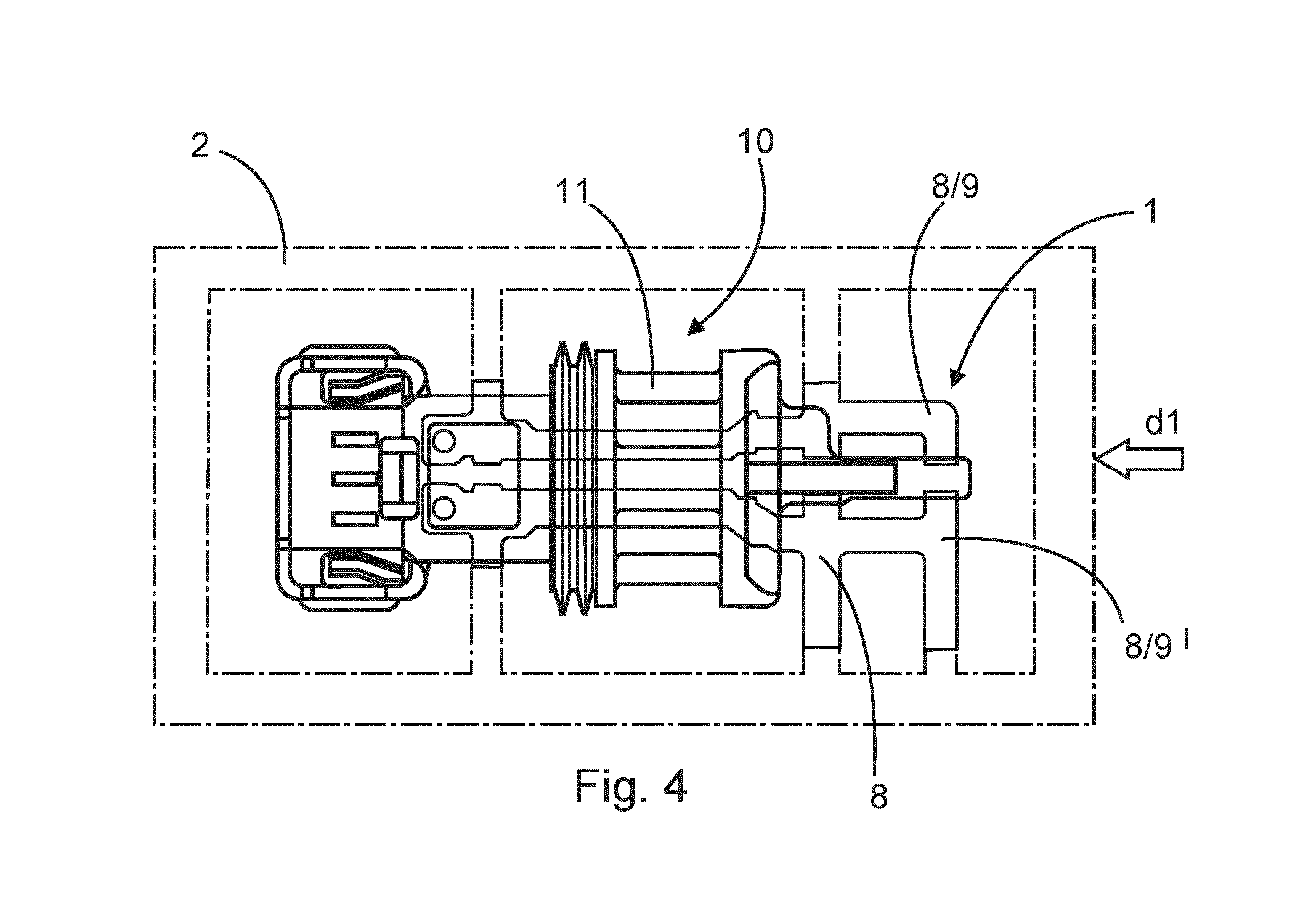

Terminal assembly for a directionally dependent sensor, directionally dependent sensor, and method for manufacturing the terminal assembly A terminal assembly (10) for a directionally dependent sensor (12) comprises: a busbar (1) and a housing (11). The busbar (1) comprises two first terminal areas (7) and three second terminal areas (8) to respectively form a plug connector (9, 9', 9"). A first one of the first terminal areas (7), the three second terminal areas (8), and a second one of the first terminals (7') are arranged in-line, and the housing (11) partially encloses the busbar (1) such that the second terminal areas (8) are exposed. The busbar (1) provides a plug pattern having two adjacent plug connectors (9, 9', 9") connectable to a female connector, which plug pattern is formed by two adjacent second terminal areas (8) by disconnecting the busbar (1) between the two adjacent second terminal areas (8). Depending on the two adjacent ones of the second terminal areas (8), two different plug patterns are formed.[French]
Ensemble borne destiné à un capteur dépendant de la direction, capteur dépendant de la direction, et procédé de fabrication de l'ensemble borne. Un ensemble borne (10) destiné à un capteur dépendant de la direction (12) comprend : une barre omnibus (1) et un boîtier (11). La barre omnibus (1) comprend deux premières zones de borne (7) et trois deuxièmes zones de borne (8) permettant de former respectivement un connecteur mâle (9, 9', 9"). Une première des premières zones de borne (7), les trois deuxièmes zones de borne (8), et une deuxième des premières bornes (7') sont disposées en ligne, et le boîtier (11) renferme partiellement la barre omnibus (1) de telle sorte que les deuxièmes zones de borne (8) sont mises à nu. La barre omnibus (1) fournit un motif de fiche comportant deux connecteurs mâles adjacents (9, 9', 9") pouvant être connectés à un connecteur femelle, ledit motif de fiche étant formé par deux deuxièmes zones de borne adjacentes (8) par la déconnexion de la barre omnibus (1) entre les deux deuxièmes zones de borne adjacentes (8). En fonction des deux zones adjacentes parmi les deuxièmes zones de borne (8), deux motifs de fiche différents sont formés.
