WO2023180220 - CONTROL ELEMENT FOR A COOKTOP, COUPLING ELEMENT, CONTROL DEVICE AND COOKTOP
National phase entry:
Publication Number
WO/2023/180220
Publication Date
28.09.2023
International Application No.
PCT/EP2023/056993
International Filing Date
20.03.2023
Title **
[English]
CONTROL ELEMENT FOR A COOKTOP, COUPLING ELEMENT, CONTROL DEVICE AND COOKTOP
[French]
ÉLÉMENT DE COMMANDE POUR SURFACE DE CUISSON, ÉLÉMENT D'ACCOUPLEMENT, DISPOSITIF DE COMMANDE ET SURFACE DE CUISSON
Applicants **
BSH HAUSGERÄTE GMBH
Carl-Wery-Str. 34
81739 München, DE
Inventors
ABASCAL CARRERA, Luis Alberto
Bº del Tojo, 3
39609 Camargo, ES
CARBALLO FERNANDEZ, Roberto
Calle Camus Nº 14 A
39012 Santander (Cantabria), ES
MARTINEZ DIEZ, Alvaro
Urb. Los Llanos Nº82, Peñacastillo
39011 Peñacastillo (Santander), ES
Priority Data
22382262.8
21.03.2022
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1114 | |
| EPO | Filing, Examination | 4585 | |
| Japan | Filing | 589 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2710 |
Total: 9573 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

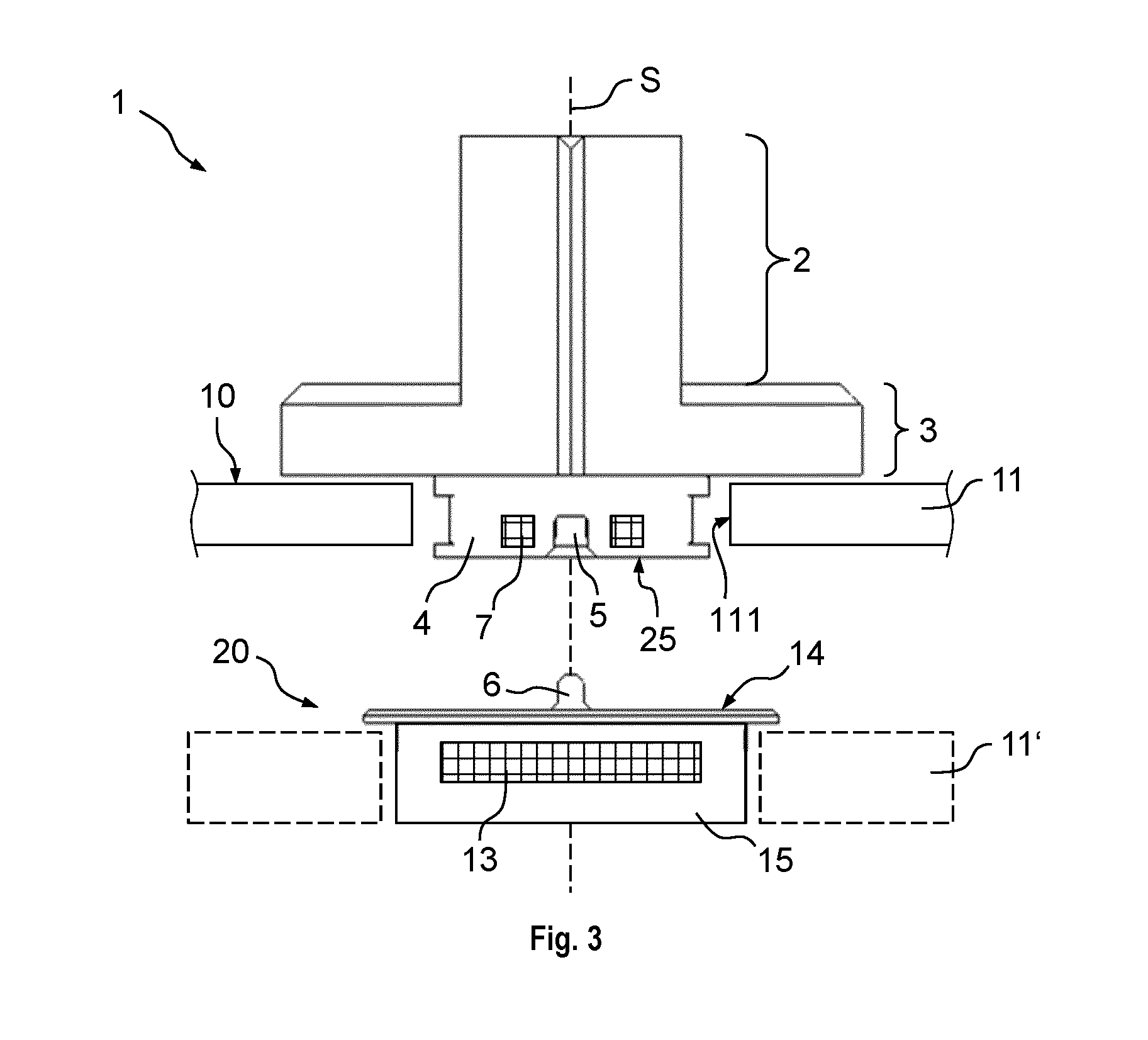

(Control element for a cooktop, coupling element, control device and cooktop) A control element (1) for a gas cooktop comprises a handling section (2), a base section (3) for covering an opening (111) in a plate (11), and a coupling section (4) attached to the base section (3). The coupling section (4) protrudes from the base section (3) and includes at least one recess (5) for receiving a corresponding protrusion (6) and/or includes at least one protrusion for engaging with a corresponding recess. And the coupling section (4) further comprises at least one magnetic element (12) for generating a magnetic pull.[French]
Un élément de commande (1), destiné à une surface de cuisson à gaz, comprend une section de manipulation (2), une section de base (3) permettant de recouvrir une ouverture (111) dans une plaque (11), et une section d'accouplement (4) fixée à la section de base (3). La section d'accouplement (4) fait saillie à partir de la section de base (3), et comprend au moins un évidement (5) destiné à recevoir une saillie correspondante (6) et/ou comprend au moins une saillie destinée à entrer en prise avec un évidement correspondant. Et la section d'accouplement (4) comprend en outre au moins un élément magnétique (12) permettant de produire une attraction magnétique.
